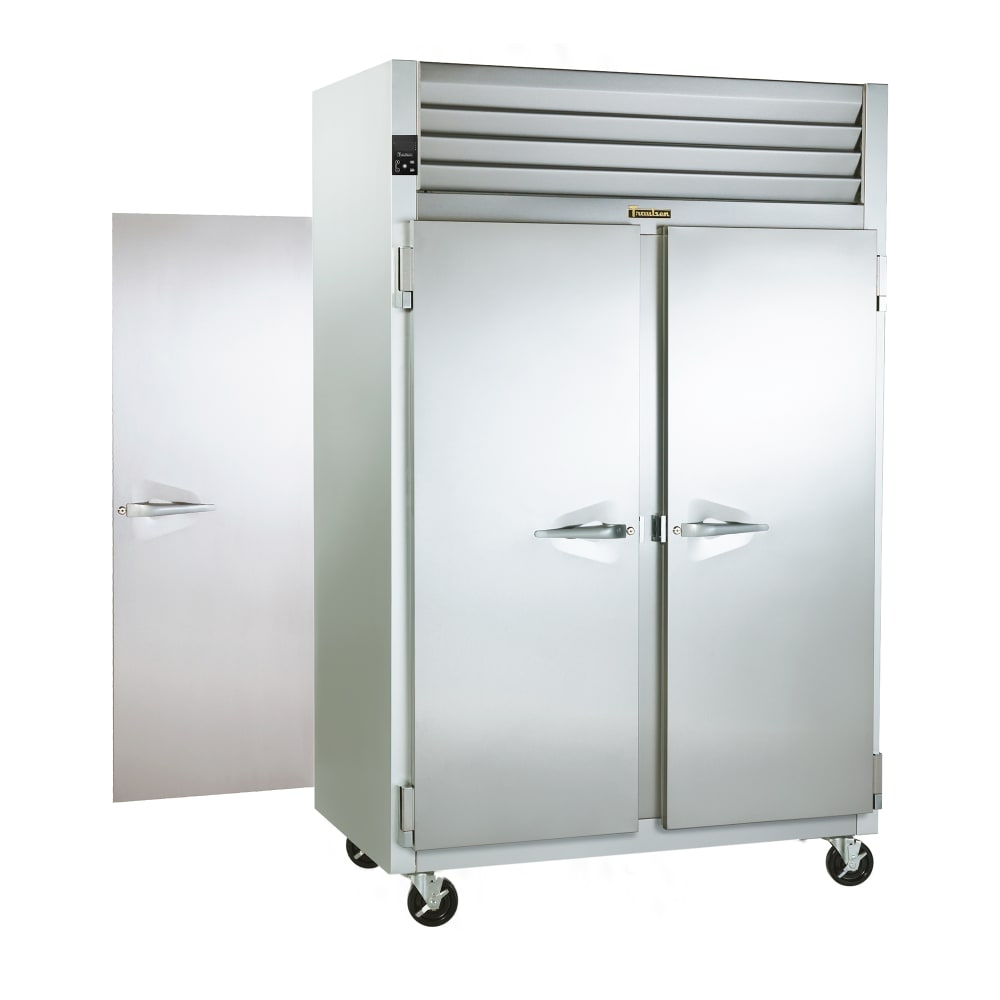

Traulsen AHT232WPUT-FHS 58" Two Section Pass Thru Refrigerator, (4) Left/Right Hinge Solid Doors, 115v

The Traulsen AHT232WPUT-FHS two-section pass-thru refrigerator is made of stainless steel for durability in commercial kitchens. It provides the user with 53²/₅ cubic feet of storage space. The refrigerator is accessible from both the front and back to facilitate an efficient workflow. Each of the two sections are fitted with three shelves that can each hold 225 pounds.

The Traulsen AHT232WPUT-FHS pass-thru refrigerator measures 58 inches wide by 32 inches deep by 83¹/₄ inches high, and it sits on four 6-inch, stainless steel, adjustable legs. The unit is equipped with four solid doors that can be locked for security after hours and have self-closing and stay-open features. The unit’s refrigeration system is self-contained and top-mounted, with a thermostatic expansion valve that uses R290 refrigerant to hold the contents of the refrigerator between 33 and 38 degrees Fahrenheit.

Product Details

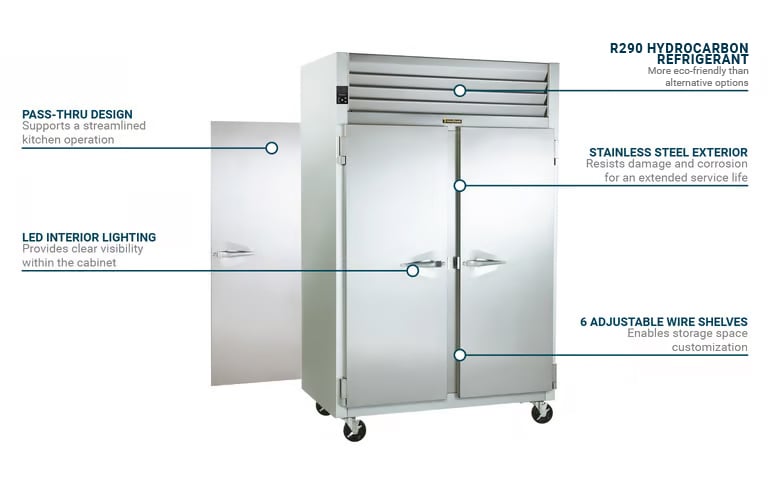

• Pass-thru refrigerator
• Part of the Spec-Line series
• 2 section
• 53²/₅-cu.-ft. capacity
• Heavy-gauge stainless steel exterior
• Anodized aluminum interior
• 6 coated adjustable wire shelves can support 225 lbs. each
• 4 self-closing doors with locks and stay-open feature when open past 120 degrees
• Extruded handles
• Magnetic snap-in EZ-clean door gaskets
• Door liner protects gaskets
• LED interior lighting with exterior switch
• Foamed-in-place, high-density polyurethane insulation
• 6 in. adjustable stainless steel legs

Refrigeration System

• R290 eco-friendly refrigerant
• Self-contained
• Temperature holding range: 34 to 38 degrees F
• Thermostatic expansion valve
• Air-cooled hermetic compressor
• Plenum effect blower coil
• High humidity evaporator coil outside the food zone
• Top-mounted, non-electric condensate evaporator

Dimensions & Utilities

• 58 in. W x 83³/₈ in. D x 83¹/₄ in. H
• ⁵/₈ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Traulsen AHT232WPUT-FHS within the 48 contiguous states.

From The Manufacturer

Spec-Line Refrigerator, Pass-thru, two-section, self-contained refrigeration, StayClear™ Condenser,variable speed compressor, stainless steel exterior, aluminum interior, standard depth, wide full-height solid doors, both sides with EZ-Clean Gaskets, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, R-290 Hydrocarbon refrigerant, 1/2 HP, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor

Traulsen AHT232WPUT-FHS Specifications

Documents

Spec Sheet

Warranty

Manual
