Traulsen AHT232NPUT-FHS 52" Two Section Pass Thru Refrigerator, (4) Left/Right Hinge Solid Doors, 115v
$25,916.22 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Traulsen AHT232NPUT-FHS Description

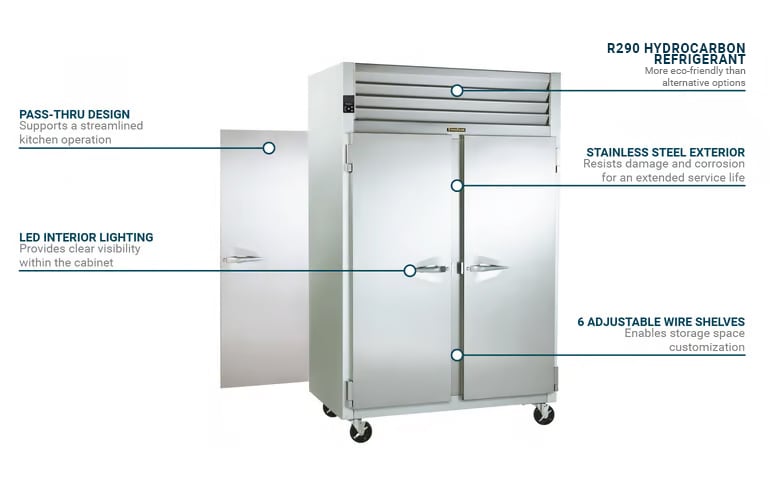

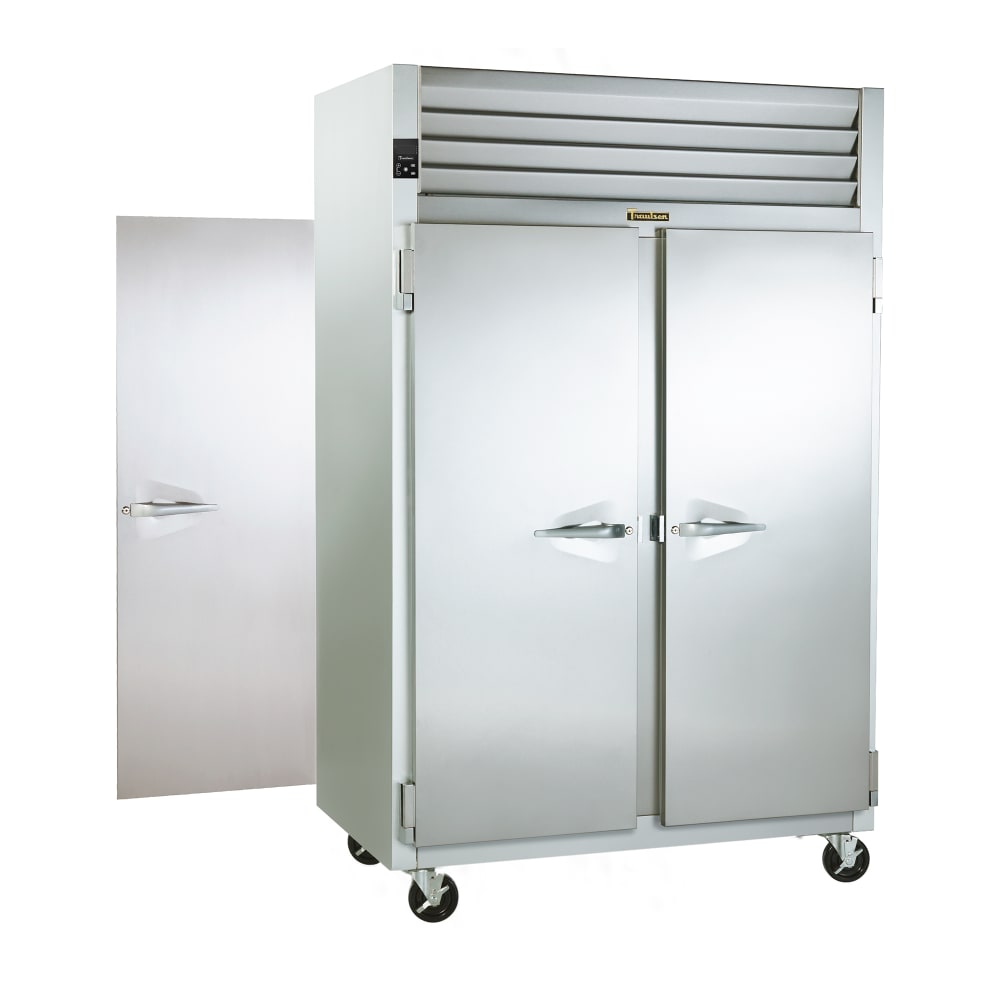

This Traulsen AHT232NPUT-FHS two-section pass-thru refrigerator provides 489/10 cubic feet of storage and comes with three coated wire shelves per section, for six in total. The shelves can be adjusted as needed and accessed from both the back and the front of the unit via four solid doors by utilizing the pass-through design. The doors can be locked to prevent theft and tempering, and they are equipped with stay-open and self-close features.
The Traulsen AHT232NPUT-FHS two-section reach-in refrigerated storage unit is large, measuring 521/8 inches wide by 571/16 inches deep by 831/4 inches high, and it sits on four 6-inch adjustable legs. The refrigeration system is mounted on the top of this unit and is self-contained. The thermostatic expansion valve works to distribute R290 hydrocarbon refrigerant throughout the unit, which keeps the interior held at a low temperature between 33 and 38 degrees Fahrenheit.
Product Details
- Pass-thru refrigerator
- 2 section
- 489/10-cu.-ft. capacity
- Heavy-gauge stainless steel exterior
- Anodized aluminum interior
- 6 coated wire shelves support 225 lbs. each
- 3 shelves per section
- 4 self-closing doors with locks and stay-open feature when open past 120 degrees
- Extruded handles
- Magnetic, snap-in, EZ-clean door gaskets
- Door liner protects gaskets
- LED interior lighting with exterior switch
- Foamed-in-place, high-density polyurethane insulation
- 6 in. adjustable stainless steel legs
Refrigeration System
- Self-contained
- Temperature holding range: 34 to 38 degrees F
- Thermostatic expansion valve
- Air-cooled hermetic compressor
- Plenum effect blower coil
- High humidity evaporator coil outside the food zone
- Top-mounted non-electric condensate evaporator
- R290 hydrocarbon refrigerant
Dimensions & Utilities
- 521/8 in. W x 379/10 in. D x 831/4 in. H
- 5/8 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug
Product Features
*Free shipping on Traulsen AHT232NPUT-FHS within the 48 contiguous states.
From The Manufacturer
Spec-Line Refrigerator, Pass-thru, two-section, self-contained refrigeration, StayClear™ Condenser, variable speed compressor, stainless steel exterior, aluminum interior, standard depth, narrow full-height doors, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, R-290 Hydrocarbon refrigerant, 1/2 HP, cETLus, ETL-Sanitation, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Traulsen AHT232NPUT-FHS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Color | Silver |
| Compressor Location | Top |
| Cubic Feet | 48.87 |
| Depth (in) | 37.94 |
| Door Type | Solid |
| Doors | Full |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| No. of Doors | 4 |
| Number of Shelves | 6 |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Spec |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 2 |
| Series | Spec-Line |
| Shelving Type | Wire |
| Special Features | Long Life EZ-Clean Door Gasket |
| Supports | Legs |
| Thermometer Type | Digital |
| Type | Pass Thru |
| Voltage | 115 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 52 |
| Weight | 705.00 |
Important Prop 65 information for California residents.
