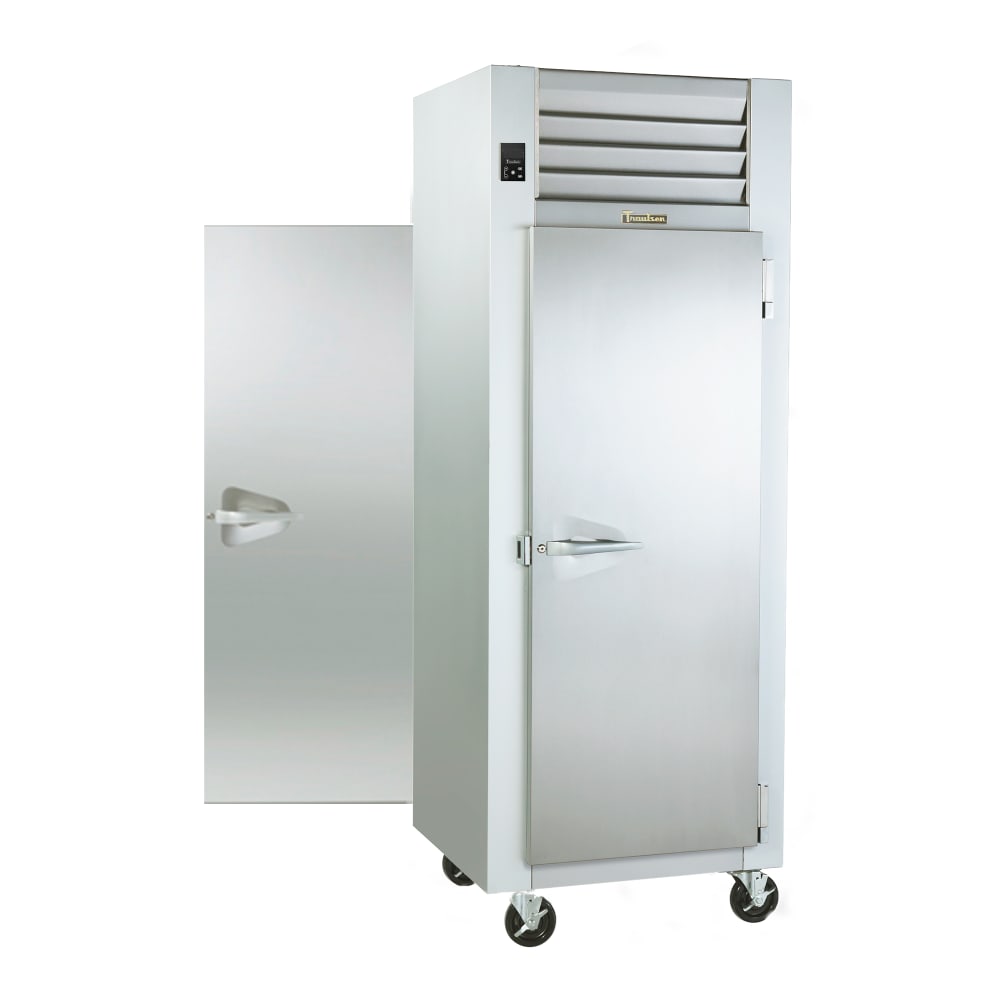

Traulsen AHT126WPUT-HHS 30" One Section Pass Thru Refrigerator, (4) Right Hinge Solid Door, 115v

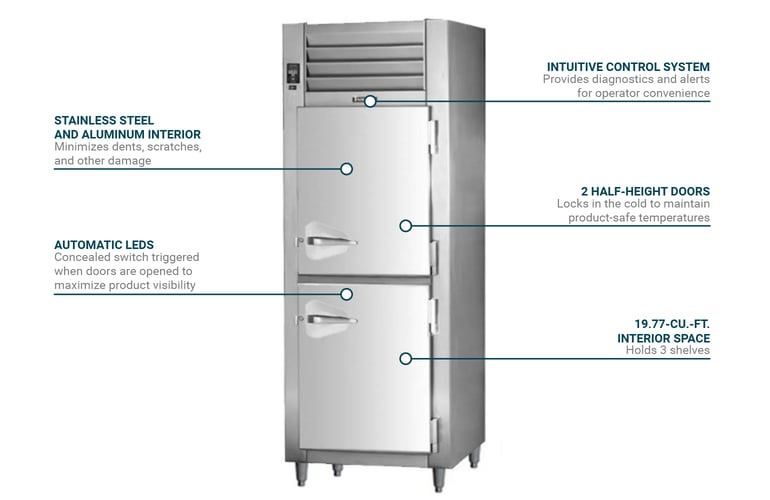

The Traulsen AHT126WPUT-HHS one-section refrigerator has a pass-thru design that can be stocked from the front and back of the unit. This 29⁷/₈-inch-wide by 31¹⁵/₁₆-inch-deep unit has 19.77-cubic-feet of interior space and can hold three adjustable wire shelves. To easily stock the interior, the half-height doors stay open past 190 degrees and self-close so cold air doesn’t escape. Users can easily see the contents inside due to the interior LED lighting that's triggered once the concealed switch is hit. The body of this unit is made of stainless steel, and for additional strength, the interior is made of aluminum for additional strength.

This AHT126WPUT-HHS pass-thru refrigerator holds temperatures between 34 and 38 degrees Fahrenheit. The self-contained refrigeration system includes an air-cooled compressor, high-humidity evaporator coil, plenum effect blower coil, and thermostatic expansion valve. The interior cavity is cooled with nontoxic, environmentally friendly R450A hydrocarbon refrigerant. Operators can conveniently manage this unit using the control system's accurate diagnostics of the cavity’s conditions, which visually alarms users in case of emergency events, such as power outages or if the door has been left ajar for too long.

Product Details

• 19.77-cu.-ft. interior space
• Pass-thru design
• 1 section
• Holds 3 adjustable wire shelves
• Stainless steel exterior with aluminum interior
• High-density polyurethane insulation
• 2 half-height locking doors
• Horizontally mounted handles
• Self-closes and stays open past 120 degrees
• Automatically activated LED lights via concealed switch
• EZ snap-in door gaskets
• Stainless steel louver assembly
• (4) 6-in. stainless steel legs

Traulsen Control System

• Advanced control diagnostics
• SmartSenors adapts refrigerated cavity to ambient environments
• SmartControl arranges visual alarms
• LED illuminated alarm alerts user of critical events

Refrigeration System

• Top-mounted design
• R450 hydrocarbon refrigerant
• Thermostatic expansion valve
• Air-cooled hermetic compressor
• Plenum effect blower coil
• Evaporator coil withstands high humidities
• Non-electric condensate pan
• Temperature holding range: 34-38 degrees F

Dimensions & Utilities

• 29⁷/₈ in. W x 31¹⁵/₁₆ in. D x 83¹/₄ in. H
• 8.4 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, NEMA 5-15P plug

Product Features

*Free shipping on Traulsen AHT126WPUT-HHS within the 48 contiguous states.

From The Manufacturer

Spec-Line Refrigerator, Pass-thru, one-section, self-contained refrigeration, stainless steel exterior, aluminum interior, shallow depth, wide half-height doors, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, 1/3 HP, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor

Traulsen AHT126WPUT-HHS Specifications

Documents

Spec Sheet

Warranty

Manual
