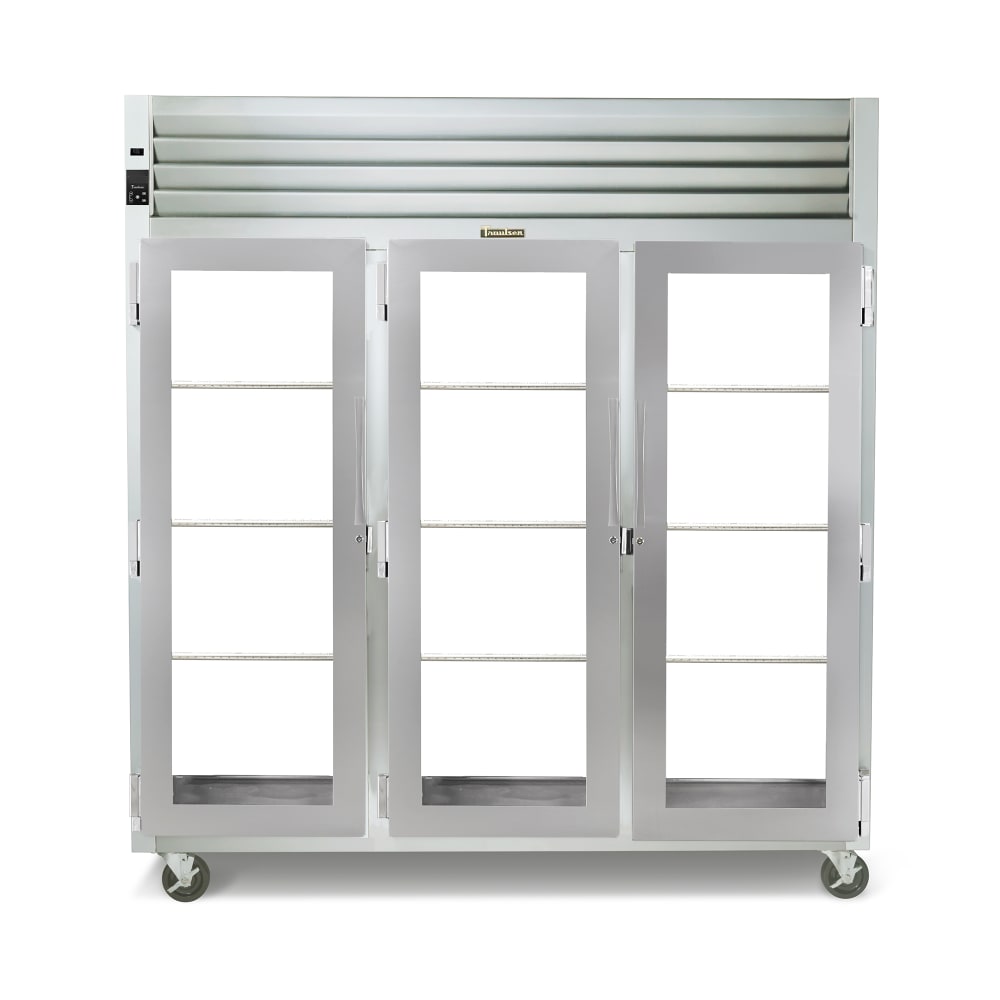

Traulsen AHF332WP-HHG Full Height Insulated Stationary Heated Cabinet w/ (9) Pan Capacity, 208v/1ph

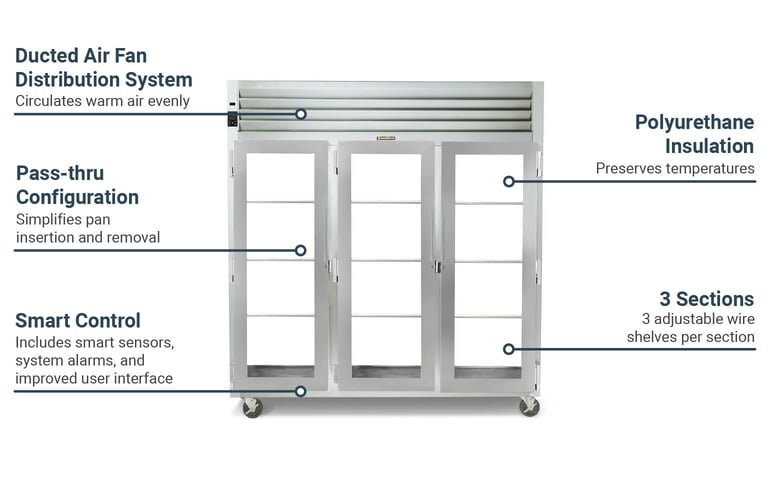

To streamline inserting and removing pans, the Traulsen AHF332WP-HHG Spec-Line heated cabinet's pass-thru layout provides access to the cabinet interior from the front and rear. Six half-length glass doors are built into the front and back of the unit, with two doors per section. This design enables operators to retrieve product from a specific part of each section without opening a full door, which can help prevent temperature changes. Three wire shelves built into all three sections can hold as much as 225 pounds each. To withstand heavy use, the interior is anodized aluminum, while the exterior is stainless steel.

Because it produces and maintains temperatures between 140 and 180 degrees Fahrenheit, the Traulsen AHF332WP-HHG pass-thru heated cabinet ensures precooked food is held in a safe environment. It uses a serpentine-style heater to achieve these temperatures, and a ducted fan air distribution mechanism circulates warm air uniformly to eliminate cold spots. The doors and cabinet are lined with polyurethane insulation to preserve temperatures, and operators can adjust temperatures with the Smart Control system as needed. If there is an unexpected power failure, a visual alarm will illuminate to notify the operator.

Product Details

• Part of the A series
• Pass-thru, full-height unit
• 3 sections
• 83.2-cu.-ft. capacity
• Anodized aluminum interior and stainless steel exterior
• 12 half-length glass doors with locks (6 front and 6 back)
• Self-closing mechanism
• Santoprene® E-Z clean gaskets
• 9 adjustable wire shelves (3 per section) with 225-lb. capacity each
• 2-in.-thick, foamed-in-place polyurethane insulation is high density
• Temperature range: 140-180 degrees F
• Serpentine-type heater
• Ducted fan air distribution mechanism
• Top vent controls humidity
• Smart Control with smart sensors, critical event visual alarms, on/off switch, and 1-time startup temperature adjustment
• Incandescent interior lights
• (4) 6-in. adjustable stainless steel legs

Dimensions & Utilities

• 86¹⁄₈ in. W x 37¹⁵⁄₁₆ in. D x 83¹⁄₄ in. H
• 15.5 A, 3000 W
• 208 V/60 Hz/1 ph

From The Manufacturer

Spec-Line Heated Cabinet, Pass-thru, three-section, stainless steel exterior, aluminum interior, standard depth cabinet, half-height glass door or doors with Santoprene® EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6" adjustable stainless steel legs, NSF, UL

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

6-year Parts & Labor; 7-year Compressor
