Traulsen AHF332WP-FHS Full Height Insulated Stationary Heated Cabinet w/ (9) Pan Capacity, 208v/1ph

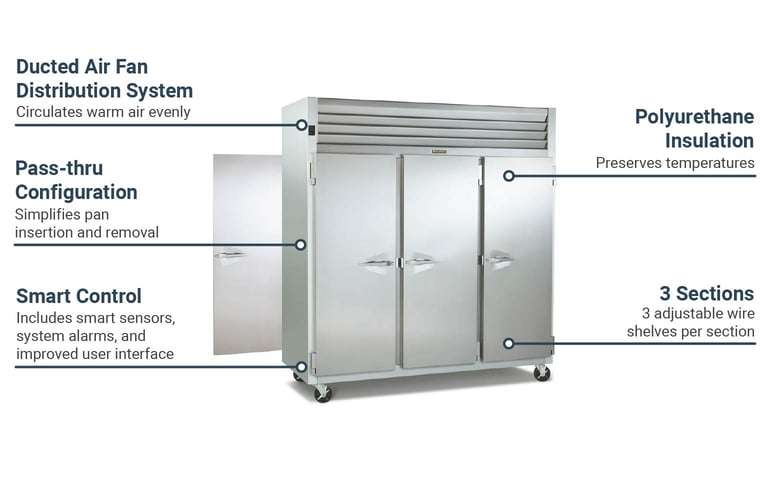

With a temperature range of 140 to 180 degrees Fahrenheit, the Traulsen AHF332WP-FHS Spec-Line pass-thru heated cabinet creates a safe environment to hold prepared foods hours before serving. It uses a ducted fan air distribution system to circulate warm air evenly throughout the cabinet, eliminating cold spots that can impact food quality. To preserve temperatures when the unit is stored in cool or warm areas, the doors and cabinet are insulated with high-density, foamed-in-place polyurethane. If the unit experiences a critical event, such as an unexpected power failure, the Smart Control system's visual LED alarm will illuminate to alert the operator. Operators can use this microprocessor system to adjust temperatures and manage the operation status.

This Traulsen AHF332WP-FHS heated cabinet's pass-thru configuration grants access to the cabinet's interior from the front and back of the unit. Each of the three sections has two correlating, full-length stainless steel doors, which lock in an open position when opened past 120 degrees and close automatically if opened less than 120 degrees. To prevent tampering, these doors also have locks. Each section is equipped with three adjustable wire shelves with a 225-pound capacity each. To extend its service life, the interior is made of anodized aluminum, while the exterior is stainless steel. Overall, this cabinet measures 86¹⁄₈ inches wide by 37¹⁵⁄₁₆ inches deep by 83¹⁄₄ inches high and is mounted on adjustable stainless steel legs.

Product Details

• Part of the A collection
• Pass-thru design with 3 sections
• Full height
• 83.2-cu.-ft. capacity
• Stainless steel exterior
• Anodized aluminum interior
• 6 locking, full-length stainless steel doors (3 front and 3 back)
• Self-closing mechanism when doors are opened less than 120 degrees
• Santoprene® E-Z clean gaskets
• 9 adjustable wire shelves (3 per section)
• Shelf capacity: 225 lbs. each
• Doors and cabinet insulated with polyurethane
• Temperature range: 140-180 degrees F
• Serpentine-type heater
• Ducted fan air distribution mechanism for even circulation
• Humidity-controlling top vent
• Smart Control microprocessor controls with smart sensors, critical event visual alarms, and on/off switch
• 1-time startup temperature adjustment mechanism
• Incandescent lights turn on automatically
• (4) 6-in. adjustable stainless steel legs

Dimensions & Utilities

• 86¹⁄₈ in. W x 37¹⁵⁄₁₆ in. D x 83¹⁄₄ in. H
• 15.5 A, 3000 W
• 208 V/60 Hz/1 ph

From The Manufacturer

Spec-Line Heated Cabinet, Pass-thru, three-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height door or doors with Santoprene® EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6" adjustable stainless steel legs, NSF, UL

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

6-year Parts & Labor; 7-year Compressor

Traulsen AHF332WP-FHS Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Manual

Product Info

Brochure

Certifications
