Traulsen AHF332WP-FHG Full Height Insulated Stationary Heated Cabinet w/ (9) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$39,436.16 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Traulsen ENERGY STAR® Heated Cabinet below
Traulsen AHF332WP-FHG Description

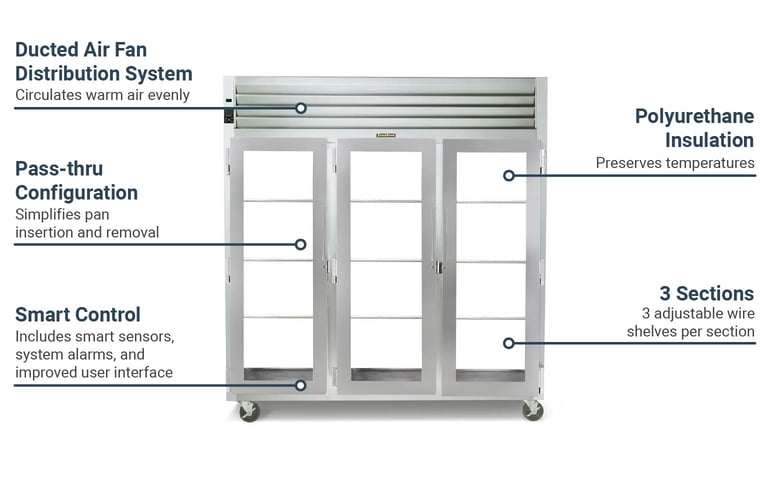

This Traulsen AHF332WP-FHG Spec-Line heated cabinet's pass-thru layout enables operators to access food pans from the front and back of the unit. All three sections have three adjustable wire shelves with a 225-pound capacity each. A clear glass door built into the front and back of each section provides a full view of product for quick identification, and the doors can stay in a locked position when opened past 120 degrees, streamlining pan insertion and removal. The unit's exterior is made of durable, corrosion- and rust-resistant stainless steel, while the interior is anodized aluminum. Both metals are durable and withstand heavy use. To prevent wobbling when stored on irregular flooring, this 861⁄8-inch-wide by 3715⁄16-inch-deep by 831⁄4-inch-tall cabinet is fitted with adjustable stainless steel legs.
The Traulsen AHF332WP-FHG pass-thru cabinet's serpentine-style heater generates temperatures from 140 to 180 degrees Fahrenheit to create a safe holding environment for prepared foods. To eliminate cold spots and ensure the cabinet is heated evenly, its ducted fan air distribution system circulates warm air throughout the interior. Operators can adjust temperatures with the built-in microprocessor controls, which also include smart sensors to acclimate the unit to different environments and usage patterns. If a critical event occurs, such as a power failure, an alarm LED will illuminate to notify the user. To reduce the risk of temperature changes, the doors and cabinet are insulated with polyurethane.
Product Details
- Part of the A line
- Pass-thru unit with 3 sections
- Full height
- 83.2-cu.-ft. capacity
- Temperature range: 140-180 degrees F
- Serpentine-style heater and ducted fan air distribution system
- Humidity control via top vent
- Corrosion-resistant stainless steel exterior and anodized aluminum interior
- 6 locking, full-length glass doors (3 front and 3 back)
- Self-closing mechanism
- Santoprene® E-Z clean gaskets
- 3 adjustable wire shelves per section
- Shelf capacity: 225 lbs. each
- 2-in.-thick, high-density, foamed-in-place polyurethane insulation
- Smart Control microprocessor controls
- On/off switch
- Critical event visual alarms
- 1-time startup temperature adjustment
- Automatically activated incandescent interior lights
- (4) 6-in. adjustable stainless steel legs
Dimensions & Utilities
- 861⁄8 in. W x 3715⁄16 in. D x 831⁄4 in. H
- 15.5 A, 3000 W
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Traulsen AHF332WP-FHG within the 48 contiguous states.
From The Manufacturer
Spec-Line Heated Cabinet, Pass-thru, three-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height glass doors, with EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation
*Image may not depict product color, inclusions or accessories.

Traulsen AHF332WP-FHG Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Traulsen |
Application | Heat Only |
Construction | Stainless Steel |
Control Location | Top |
Controls | Digital |
Cubic Feet | 79 |
Depth (in) | 37.94 |
Door Design | Full |
Door Type | Glass |
Heat | Electric |
Height (in) | 83.25 |
Hertz | 60 |
Hinge Configuration | Left/Right |
kW | 3 |
Load Type | Pass Thru |
No. of Doors | 6 |
Pan Capacity | 9 |
Phase | 1 |
Product | Heated Cabinets |
Product Type | Food Warming Equipment |
Sections | 3 |
Series | Spec-Line |
Size | Full Height |
Slide Type | Shelves |
Type | Insulated |
Voltage | 208 |
Warranty | 6-year Parts & Labor; 7-year Compressor |
Width (in) | 86.13 |
Weight | 910.00 |
