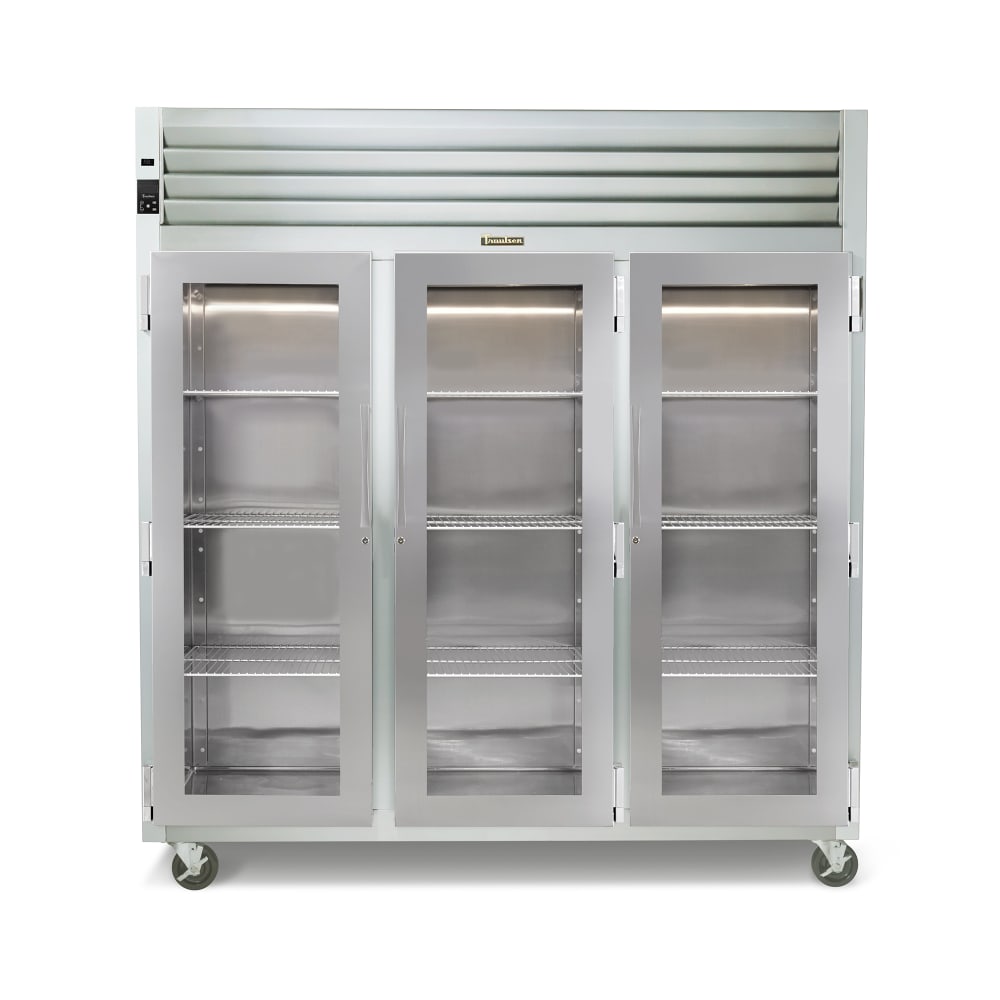

Traulsen AHF332W-HHG Full Height Insulated Stationary Heated Cabinet w/ (9) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$27,703.17 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Traulsen ENERGY STAR® Heated Cabinet below
Traulsen AHF332W-HHG Description

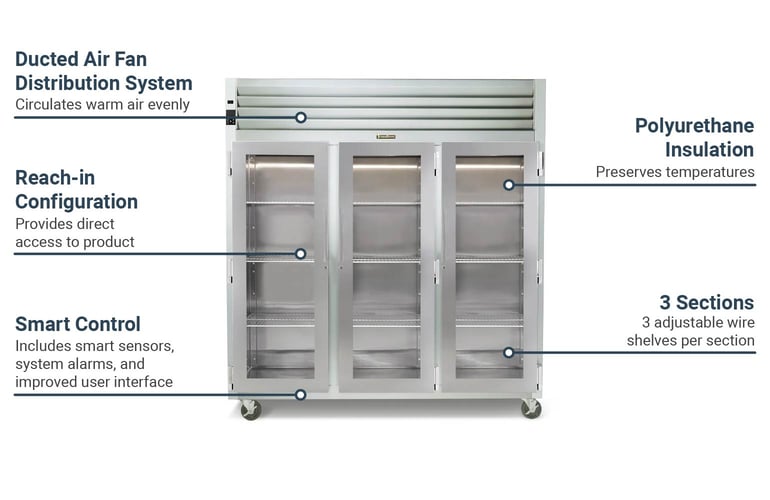

The Traulsen AHF332W-HHG Spec-Line heated holding cabinet maintains temperatures between 140 and 180 degrees Fahrenheit to create a safe warming environment for precooked foods. For even heat circulation, it uses a serpentine-style heater and a ducted fan air distribution system. Temperatures can be adjusted with the Smart Control system, which also features a one-time startup temperature adjustment feature, smart sensors, and visual alarms when the unit powers off unexpectedly. To prevent temperature changes when the unit is stored in cool or warm environments, the doors and cabinet are insulated with 2-inch-thick, high-density polyurethane.
To withstand heavy use in commercial kitchens, the Traulsen AHF332W-HHG heated cabinet's exterior is made of rust- and corrosion-resistant stainless steel, while the interior is constructed of anodized aluminum. Its three-section configuration includes three shelves per section, which accommodate 225 pounds each. Six half-height doors are built onto the front of the unit, providing direct access to specific parts of each section. Because they're glass, they grant a full view of product to streamline inventory checks. When opened more than 120 degrees, the doors lock in place; otherwise, they self-close automatically. Their horizontal handles are comfortable to grip, and the doors are made with Santoprene® E-Z gaskets to simplify cleaning.
Product Details
- Part of the A collection
- Reach-in, full-height unit with 3 sections
- 79-cu.-ft. capacity
- Temperature range: 140-180 degrees F
- Ducted fan air distribution system
- Serpentine-shaped heater
- Humidity control with top vent
- Corrosion-resistant stainless steel exterior
- Durable, anodized aluminum interior
- 6 half-height glass doors with locks (2 doors per section)
- Self-closing mechanism
- Santoprene E-Z clean gaskets
- 9 adjustable wire shelves with 225-lb. capacity each
- Doors and cabinet insulated with foamed-in-place polyurethane
- Microprocessor controls
- 1-time startup temperature adjustment
- On/off switch on control face
- Visual temperature alarms
- Incandescent lights turn on automatically
- (4) 6-in. adjustable stainless steel legs
Dimensions & Utilities
- 861⁄8 in. W x 35 in. D x 831⁄4 in. H
- 15.5 A, 3000 W
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Traulsen AHF332W-HHG within the 48 contiguous states.
From The Manufacturer
Spec-Line Heated Cabinet, Reach-in, three-section, stainless steel exterior, aluminum interior, standard depth cabinet, half-height glass doors, with EZ-Clean Gaskets, microprocessor controls, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation
*Image may not depict product color, inclusions or accessories.
Traulsen AHF332W-HHG Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Cubic Feet | 79 |
| Depth (in) | 35 |
| Door Design | Dutch |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| kW | 3 |
| Load Type | Reach In |
| No. of Doors | 6 |
| Pan Capacity | 9 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 3 |
| Series | Spec-Line |
| Size | Full Height |
| Slide Type | Shelves |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 86.13 |
| Weight | 851.00 |
Important Prop 65 information for California residents.
