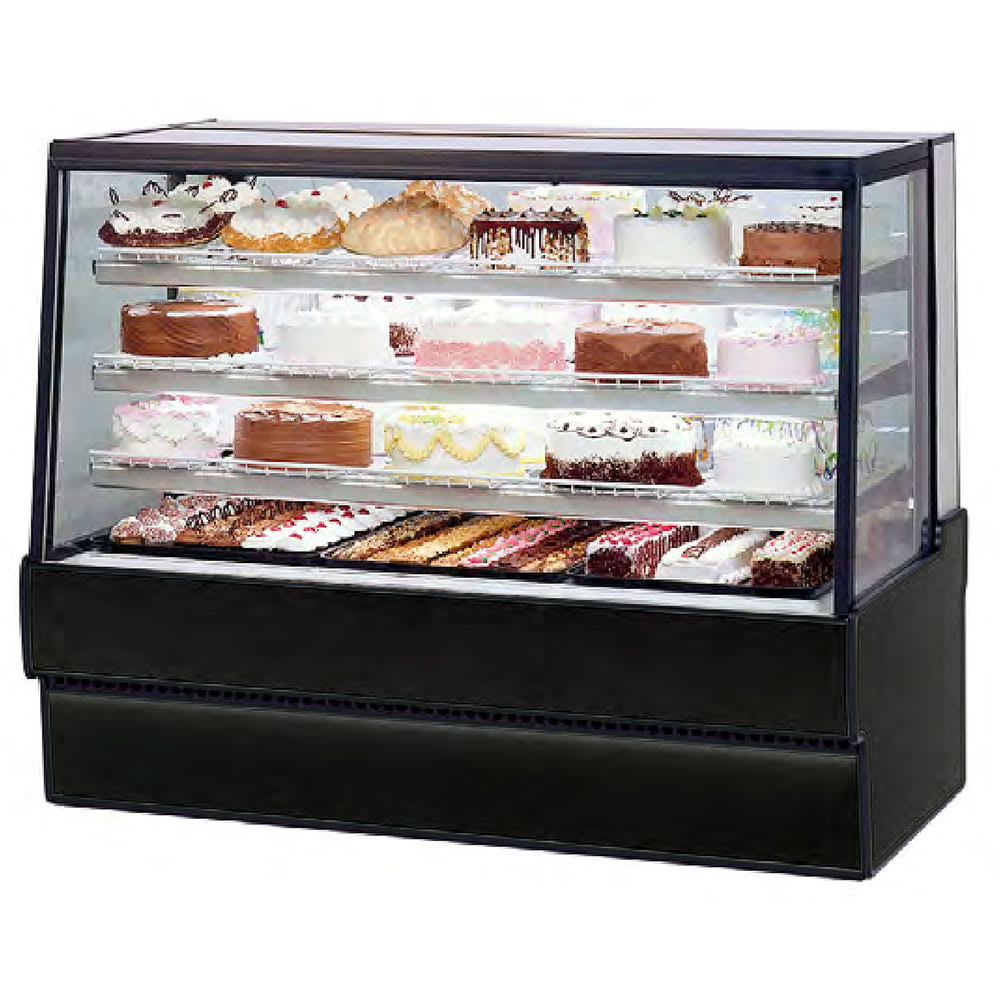

Federal SGR5942 59" Full Service Bakery Case w/ Straight Glass - (3) Levels, 120v

To extend the quality of baked goods and desserts with effective merchandising, the Federal SGR5942 refrigerated bakery case can be incorporated into a continuous case lineup. This 59¹³⁄₁₀₀-inch-wide by 35³¹⁄₁₀₀-inch-deep by 42-inch-high unit accommodates nine 18-inch by 26-inch bakery pans on its scratch- and rust-resistant display deck and two tiers of wire shelves which can be raised, lowered, or tilted. The tempered thermopane glass front, ends, top, and doors grant a full view of the showcased items, while the sloped front glass establishes a classic appearance to complement traditional bakeries, cafes, or restaurants. To simplify cleaning, operators can tilt out the front panel.

A full-service unit, this dessert case is built with two rear sliding glass doors that let employees load and retrieve products while enhancing customer-staff relations. It features a rugged steel base decorated with a black laminate and black trim for an unobtrusive appearance that matches other bakery cases. To ensure stabilization, its base is fitted with adjustable leg levelers.

For displaying packaged cheesecakes, mousses, pies, and cakes, the Federal SGR5942 bakery case's refrigeration system uses R513a refrigerant to maintain average temperatures from 38 to 40 degrees Fahrenheit. Its oversized coil and low-velocity fan system create a high-humidity environment to prevent foods from becoming dry over time. To accommodate changing refrigeration requirements, operators can adjust the temperature settings and monitor internal temperature with the thermometer. This self-contained system includes a condensate evaporator, condenser air filter, and rust-resistant, insulated evaporator coil compartment, and its components are accessible from the back.

Case Details

• Part of the High Volume line
• Accommodates (9) 18-in. x 26-in. bakery pans
• Full-service model
• Compatible with continuous case displays
• 3 display levels with 2 adjustable white wire shelves
• White display deck resists rust and scratches
• LED top light and shelf lights
• Sloped, tilt-out front panel
• Tempered thermopane glass front, top, ends, and doors
• 2 rear sliding doors
• Steel base with black laminate and trim
• Accessible light switch
• Adjustable legs
• Removable sliding rear doors, shelves, shelf supports, shelf lights, and display deck

Refrigeration System

• Self-contained design
• R513a refrigerant
• Average operating temperature: 38-40 degrees F
• Adjustable temperature control
• Thermometer
• Oversized coil and low-velocity fan for high humidity
• Insulated, rust-resistant evaporator coil compartment
• Condenser air filter
• Condensate evaporator included
• Rear-accessible refrigeration components

Dimensions & Utilities

• 59¹³⁄₁₀₀ in. W x 35³¹⁄₁₀₀ in. D x 42 in. H
• 11.6 A, ¹⁄₂ HP
• 120 V/60 Hz/1 ph, NEMA 5-15P plug included

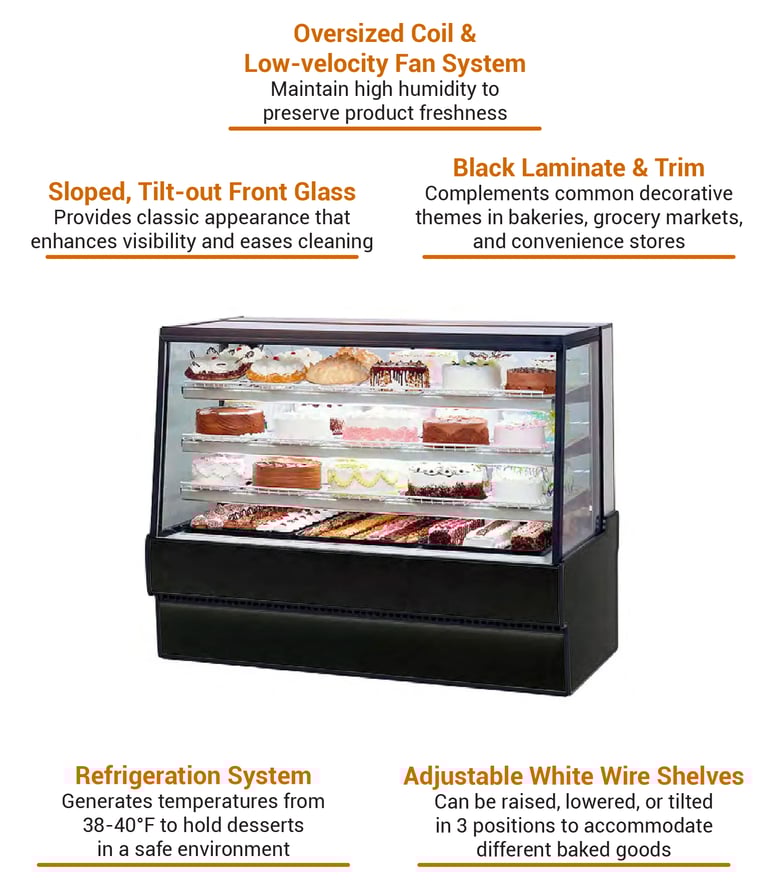

Product Features

From The Manufacturer

High Volume Refrigerated Bakery Case, 59-1/8"W x 35-5/16"D x 42”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelves, (2) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, black laminate with black trim, designed for continuous lineups, 1/2 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor
