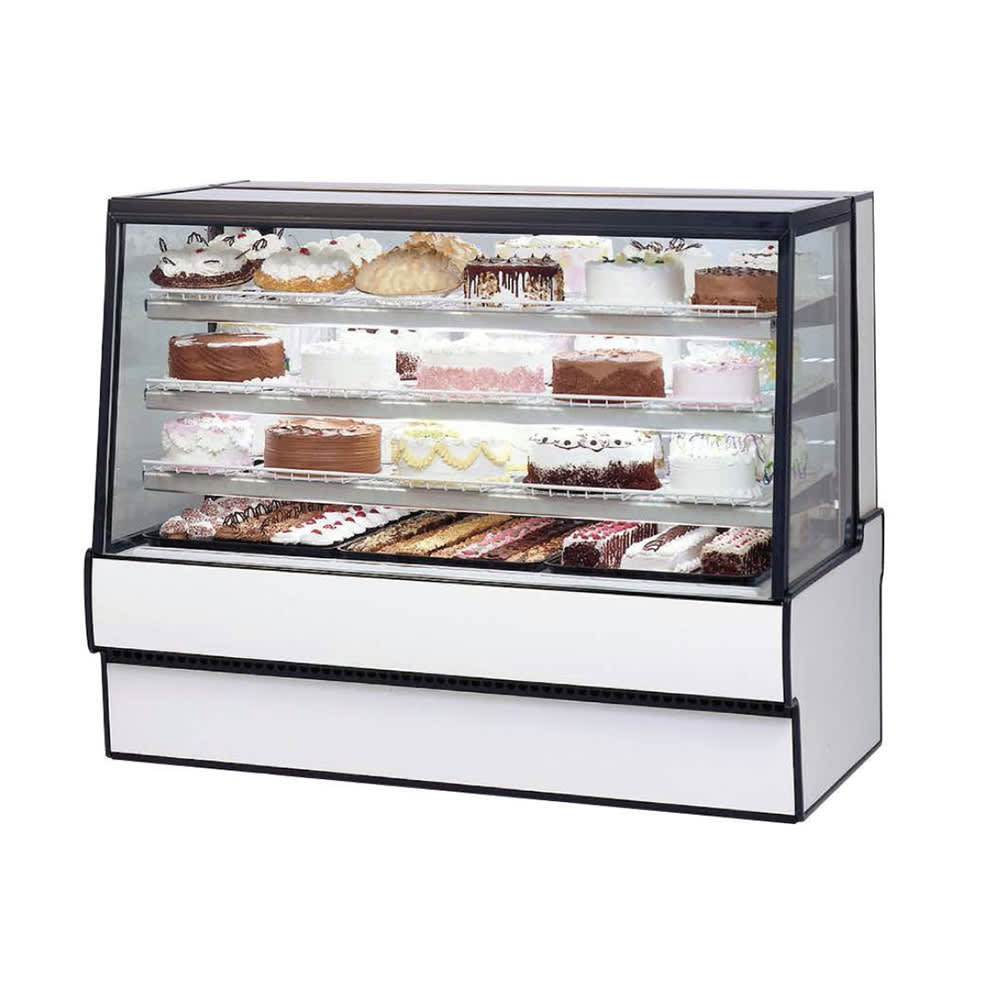

Federal SGR5048 50" Full Service Bakery Case w/ Straight Glass - (4) Levels, 120v

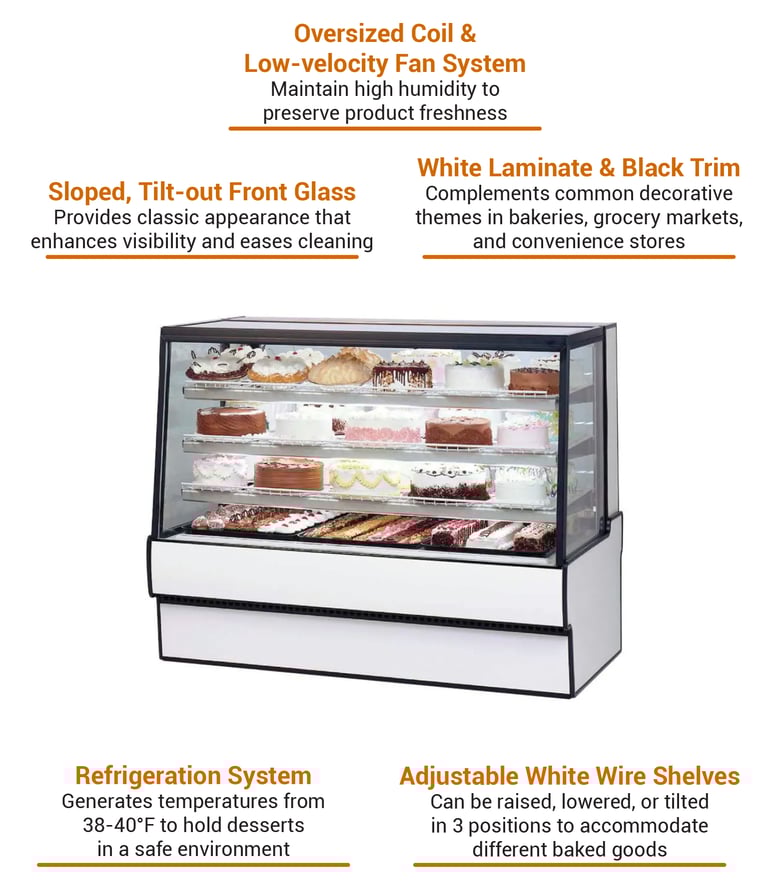

Because the Federal SGR5048 refrigerated bakery case maintains temperatures from 38 to 40 degrees Fahrenheit, it's ideal for displaying cheesecakes, fruit pies, and mousses. To preserve the moist, fresh quality of these desserts, the low-velocity fan system and oversized coil produce high humidity levels. Operators can modify case temperatures with the adjustable temperature control, while the thermometer provides an accurate temperature readout. For accessibility during maintenance, the refrigeration components can be serviced from the rear.

This bakery case measures 50¹³⁄₁₀₀ inches wide by 35³¹⁄₁₀₀ inches deep by 48 inches high and can be connected with other units to extend display options in high-traffic bakeries, grocery stores, and cafes. For a neutral appearance that matches common decorative themes, its sports a white steel base with black trim and a white display deck and shelves. This case is positioned on leg levers that can be raised or lowered to stabilize the unit on uneven flooring.

The Federal SGR5048 dessert case is built with two rear sliding glass doors to streamline product insertion and retrieval. This full-service design establishes a customer-centric setup that can also minimize shoplifting and product contamination risks. Its top, sides, ends, doors, and sloped front are made of clear, tempered thermopane glass with LED lights that highlight merchandise. Its four-level interior features a scratch- and rust-resistant display deck and three tiers of wire shelving; altogether, these levels can accommodate eight 18-inch by 26-inch bakery pans and four 9-inch by 26-inch bakery pans. To support different desserts, the shelves can be tilted, raised, or lowered. For thorough cleaning, the front glass can be tilted out, and the display deck, shelves, shelf supports, shelf lights, and doors can be removed.

Case Details

• Part of the High Volume collection
• Bakery pan capacity: (8) 18-in. x 26-in. pans and (4) 9-in. x 26-in. pans
• Full-service unit
• Can be added to continuous case displays
• 4 display levels with 3 tiers of adjustable white wire shelves
• Scratch- and rust-resistant white display deck
• LED top light and shelf lights
• Sloped, tilt-out front
• Tempered thermopane glass top, ends, front and doors
• 2 rear sliding doors
• Steel base with white laminate and black trim
• Accessible light switch
• Adjustable leg levelers
• Removable sliding rear doors, shelves, shelf supports, shelf lights, and display deck

Refrigeration System

• Self-contained
• R513a refrigerant
• Average operating temperature: 38-40 degrees F
• Adjustable temperature control
• Thermometer
• Oversized coil and low-velocity fan for high humidity
• Insulated, rust-resistant evaporator coil compartment
• Condenser air filter
• Condensate evaporator included
• Rear-accessible refrigeration components

Dimensions & Utilities

• 50¹³⁄₁₀₀ in. W x 35³¹⁄₁₀₀ in. D x 48 in. H
• 10.5 A, ¹⁄₂ HP
• 120 V/60 Hz/1 ph, NEMA 5-15P plug included

Product Features

*Free shipping on Federal SGR5048 within the 48 contiguous states.

From The Manufacturer

High Volume Refrigerated Bakery Case, 50-1/8"W x 35-5/16"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelves, (3) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, white laminate with black trim, designed for continuous lineups, 1/2 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor
