Federal SGR5048 50" Full Service Bakery Case w/ Straight Glass - (4) Levels, 120v

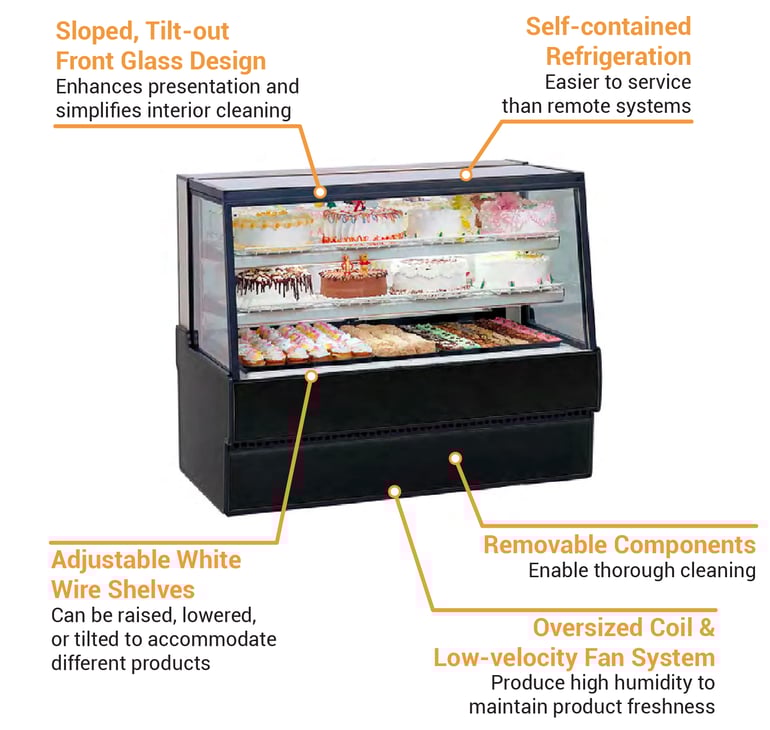

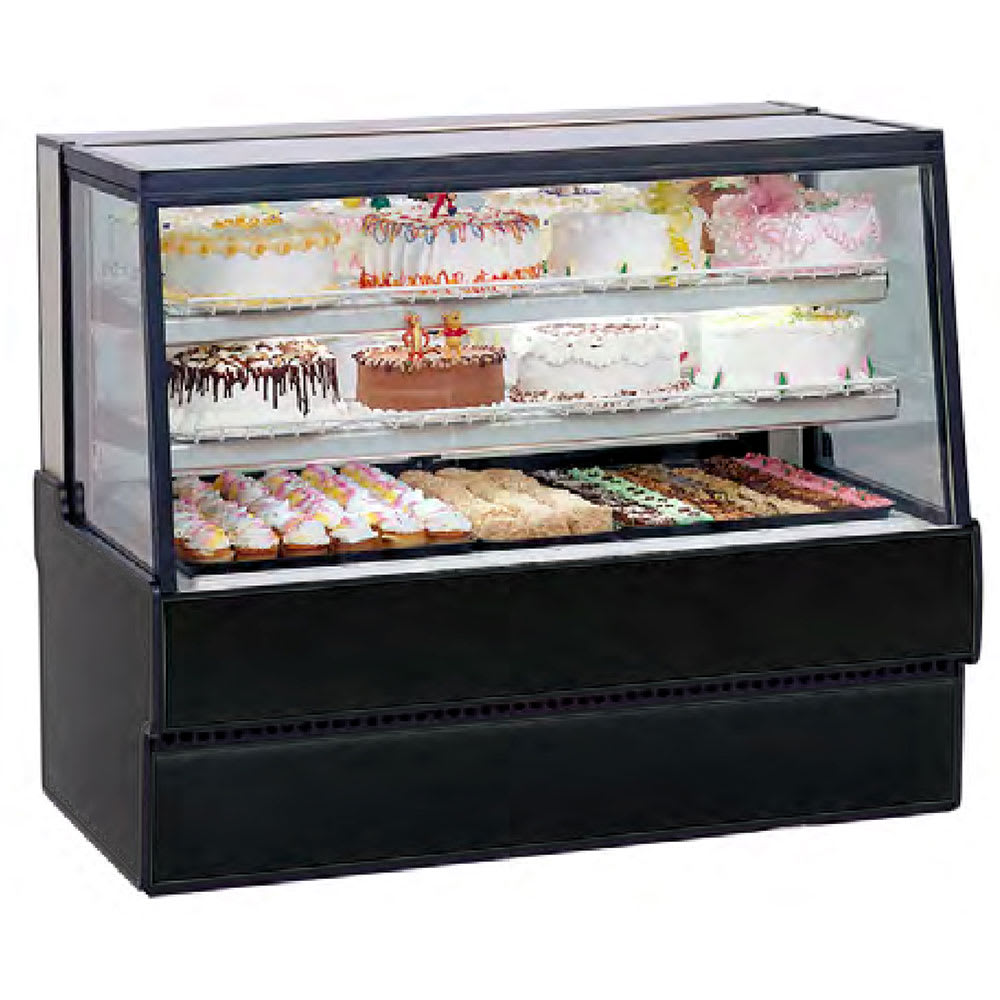

Compatible with continuous case lineups, the Federal SGR5048 refrigerated bakery case is a floor model measuring 50¹/₈ inches wide by 35⁵/₁₆ inches deep by 48 inches high. For a sleek, cohesive look with other cases, it features a steel base construction with a black laminate and black trim; tempered thermopane glass front, top, ends, and doors; a rust-resistant white display deck; and three tiers of white wire shelves. Staff can raise, lower, or tilt the three shelves depending on the size of the goods being served, and the two sliding rear doors provide direct access to the shelves. Its subtly sloped front glass enhances product display and can be tilted out to simplify interior cleaning. To highlight merchandised items, its shelves and top section are fitted with LED lights, and for thorough cleaning, the doors, shelf lights, shelf supports, shelves, and display deck are removable. This unit accommodates eight 18-inch by 26-inch bakery pans or four 9-inch by 26-inch bakery pans.

The Federal SGR5048 high-volume bakery case features a self-contained refrigeration system that uses R513a refrigerant to produce and maintain temperatures between 38 and 40 degrees Fahrenheit—great for holding cakes, cupcakes, and other perishable pastries at safe serving temperatures. Its oversized coil and low-velocity fan system create a humid environment that preserves product freshness. Operators can monitor case temperature with the thermometer and modify temperature with the temperature control. To streamline maintenance, this system features a simple-to-clean, rust-resistant insulated evaporator coil compartment, a condenser air filter, and rear refrigeration system access.

Product Details

• Capacity: (8) 18-in. x 26-in. bakery pans and (4) 9-in. x 26-in. bakery pans
• 4-tier design
• Compatible with continuous lineups
• Full-service configuration
• 3 adjustable white wire shelves with 3 tilting positions
• LED top light and shelf lights
• Base constructed of steel
• Black laminate and trim
• Tempered, sloped thermopane tilt-out front glass
• Tempered thermopane glass top, ends, and doors
• Removable sliding rear doors
• Removable, scratch-resistant, rust-resistant white display deck
• Adjustable leg levelers
• Accessible light switch and electronic temperature control

Refrigeration System

• Self-contained refrigeration
• Includes condensate evaporator
• Oversized coil and low-velocity fan system
• Insulated, rust-resistant evaporator coil compartment
• Condenser air filter
• Temperature range: 38-40 degrees F
• R513a refrigerant
• For operation in ambient environments as hot as 75 degrees F with no more than 55 percent relative humidity
• Average product temperature: 38-40 degrees F

Dimensions & Utilities

• 50¹/₈ in. W x 35⁵/₁₆ in. D x 48 in. H
• 10.5 A, ¹⁄₂ HP
• 120 V/60 Hz/1 ph, NEMA 5-15P plug

Product Features

*Free shipping on Federal SGR5048 within the 48 contiguous states.

From The Manufacturer

High Volume Refrigerated Bakery Case, 50-1/8"W x 35-5/16"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelves, (3) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, black laminate with black trim, designed for continuous lineups, 1/2 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor
