Federal SGR3648 36" Full Service Bakery Case w/ Straight Glass - (4) Levels, 120v

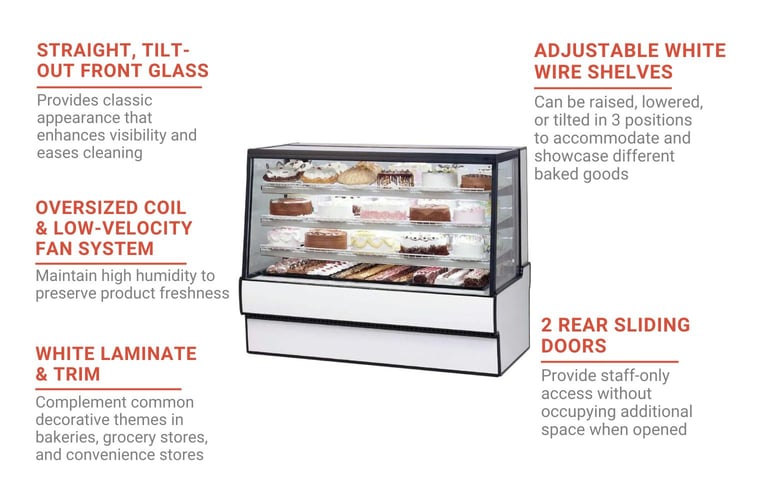

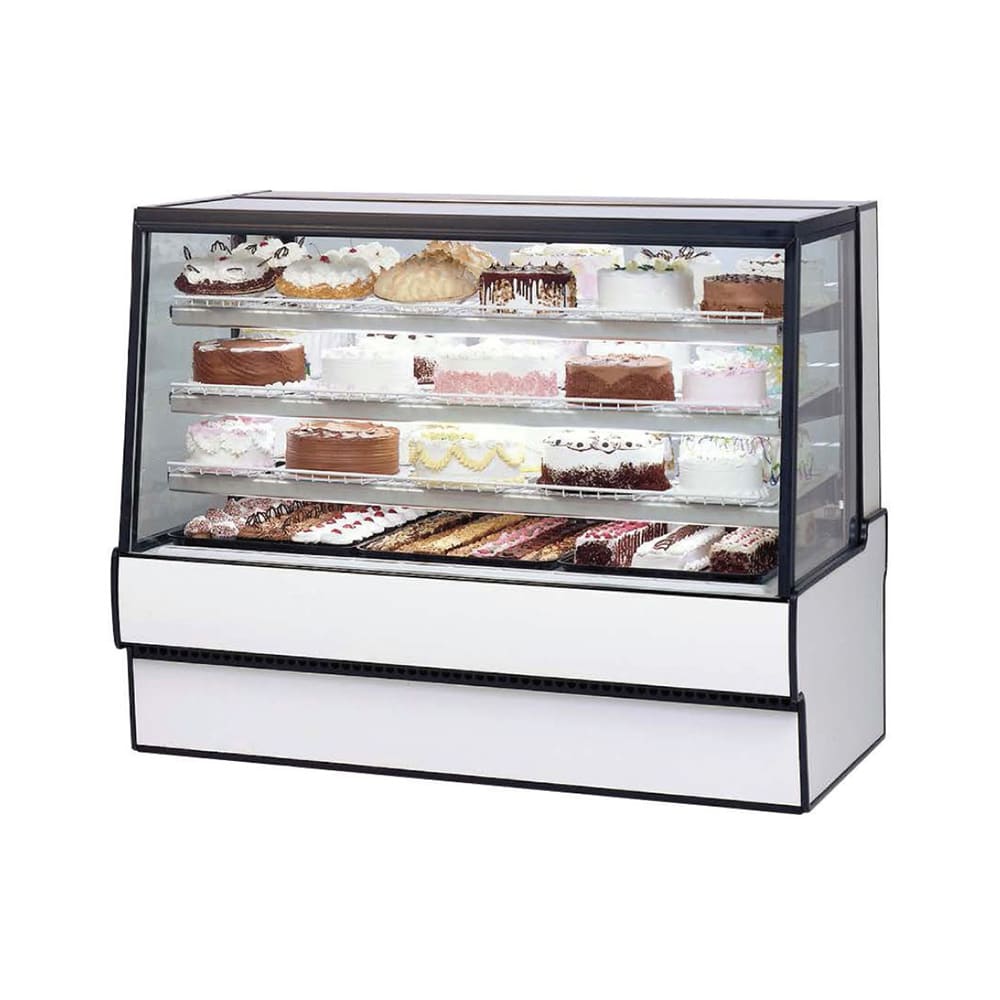

To complement most bakery and cafe settings, the Federal SGR3648 refrigerated bakery case's steel base features white laminate with a black trim and clear, tempered thermopane glass front, sides, and top. The interior's scratch- and rust-resistant white display deck and three tiers of white wire shelves provide a neutral background that draws attention to displayed cheesecakes, mousse, fruit pies, and more. This unit's LED lighting highlights the shelves to grab customer attention, and to accommodate differently sized products, the shelves can be raised, lowered, or tilted in three positions.

For baked goods that require refrigerated storage, this bakery case generates and maintains temperatures between 38 and 40 degrees Fahrenheit with R513A refrigerant. A self-contained refrigeration system, it includes a condensate evaporator, an insulated evaporator coil compartment, and condenser air filter. Its oversized coil and low-velocity fan system maintain high humidity to preserve product freshness, and staff can monitor temperatures with the thermometer and accessible control.

This Federal SGR3648 high-volume bakery case measures 36¹³⁄₁₀₀ inches wide by 35³¹⁄₁₀₀ inches deep by 48 inches high and can be incorporated into continuous case lineups to maximize product offerings. Its leg levelers can be raised or lowered to stabilize it on uneven flooring which reduces wobbling and rocking as contents are loaded or retrieved. The staff-only rear sliding glass doors grant access to the interior, decreasing shoplifting and product contamination risks. For simplified cleaning, the display deck, doors, shelves, shelf supports, and shelf lights can be removed and the front glass can be tilted out.

Product Details

• Accommodates (4) 18-in. x 26-in. bakery pans and (4) 9-in. x 26-in. bakery pans
• Can be added to continuous display lineups
• High-volume, full-service model
• 4 display levels
• 3 tiers of adjustable white wire shelves
• Removable, scratch- and rust-resistant white display deck
• LED top light and shelf lights
• Sloped, tempered thermopane front glass can be tilted out for cleaning
• Tempered thermopane glass top, ends, and doors
• 2 rear sliding doors
• Rugged steel base with white laminate and black trim
• Accessible light switch
• Adjustable temperature control
• Adjustable leg levelers
• Removable sliding rear doors, shelves, shelf supports, and shelf lights

Refrigeration System

• Self-contained
• R513A refrigerant
• Operating temperature: 38-40 degrees F
• Oversized coil and low-velocity fan produce high humidity
• Rust-resistant, insulated evaporator coil compartment
• Condenser air filter
• Condensate evaporator included
• Thermometer
• Components accessible from back

Dimensions & Utilities

• 36¹³⁄₁₀₀ in. W x 35³¹⁄₁₀₀ in. D x 48 in. H
• 8 A, ¹⁄₃ HP
• 120 V/60 Hz/1 ph, NEMA 5-15P plug included

Product Features

*Free shipping on Federal SGR3648 within the 48 contiguous states.

From The Manufacturer

High Volume Refrigerated Bakery Case, 36-1/8"W x 35-5/16"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelves, (3) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, white laminate with black trim, designed for continuous lineups, 1/3 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor
