Federal CD3628SS/RSS3SC 36" Vertical Open Air Cooler w/ (6) Levels, 120v
Typically ships in 3 - 4 weeks
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Federal CD3628SS/RSS3SC Description
For front-end application in grocery stores, gas stations, and supermarkets, the Federal CD3628SS/RSS3SC open-air cooler is ideal for compact product placement. This cooler features two sections, a refrigerated bottom for cold products and a non-refrigerated top for baked goods. To maintain the quality of cold consumables, its lower area operates between 38 and 40 degrees Fahrenheit and uses R513a refrigerant as an eco-friendly alternative to traditional refrigerants. For increased visibility and to encourage impulse sales, its shelves are illuminated with 3500K LED bulbs.
Great for withstanding high-traffic environments, it boasts durability with two black metal shelves and tempered glass ends in its lower section and two black wire shelves in its top section. For a sleek appearance that can be seamlessly integrated with existing equipment, it has a black laminate exterior with matching black trim. Overall, the Federal CD3628SS/RSS3SC hybrid merchandiser measures 361/4 inches wide by 39 inches long by 693/4 inches high.
Product Details

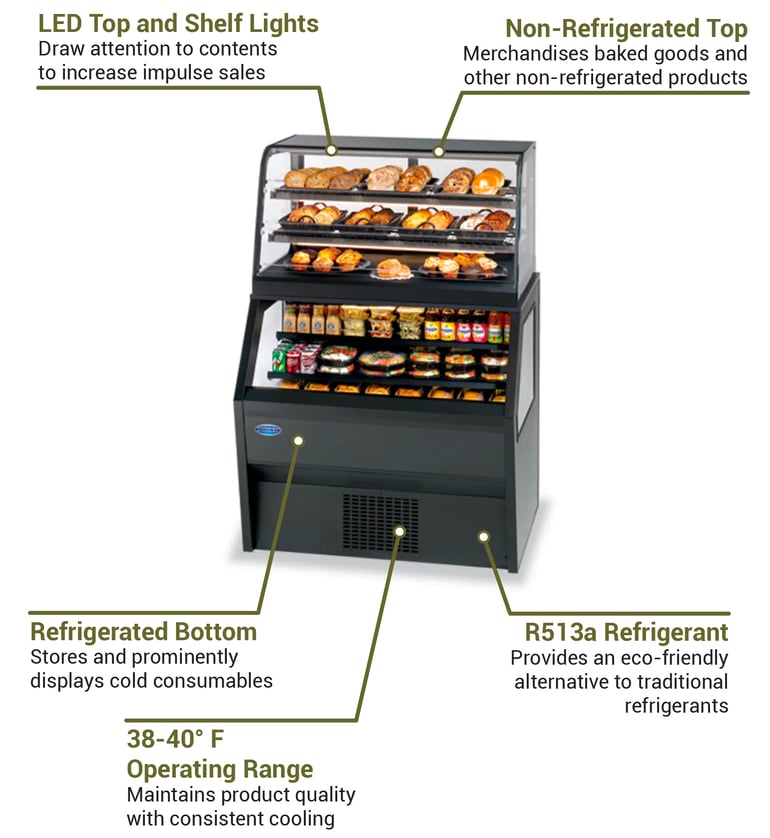

- Hybrid configuration
- Refrigerated self-service bottom with non-refrigerated self-service top
- 3500K LED top and shelf lights
- Black laminate exterior with black trim
- Tempered glass ends
Refrigerated Bottom
- Operates between 38 and 40 degrees F
- Air curtain contains generated chill
- R513a refrigerant
- Condensate evaporator
- 2 black metal shelves
Non-refrigerated Top
- Sliding rear doors
- 3 lift-up front doors
- 2 black wire shelves
Dimension and Utilities
- Overall: 361/4 in. W x 39 in. D x 693/4 in. H
- 17.5 A, 3/4 HP
- Top Display: 120 V/60 Hz/1 ph, with NEMA 5-15P plug
- Bottom Display: 120 V/60 Hz/1 ph, with NEMA 5-20P plug
Product Features
*Free shipping on Federal CD3628SS/RSS3SC within the 48 contiguous states.
From The Manufacturer
Specialty Display Hybrid Merchandiser Refrigerated Self-Serve Bottom With Non-Refrigerated Self-Service Top, 36.25"W x 39"D x 69.75”H, refrigerated self-serve bottom: black laminated exterior with black trim, horizontal 3500K LED top & front light, (2) tiers of black metal shelves with black interior, tempered glass ends, Non-Refrigerated Self-Service Top: (3) hinged lift-up front doors, black trim, (2) tier black wire shelves, sliding rear doors, 1/3 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant
*Image may not depict product color, inclusions or accessories.
Federal CD3628SS/RSS3SC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Federal |
| Air Exhaust | Back |
| Color | Black |
| Compressor Location | Bottom |
| Compressor Type | Self Contained |
| Depth (in) | 39 |
| Design | Vertical |
| Height (in) | 69.75 |
| Hertz | 60 |
| Number of Levels | 6 |
| Phase | 1 |
| Product | Open Air Merchandisers |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R513A |
| Series | CD Series |
| Service Type | Hybrid |
| Special Features | Adjustable Shelf Angle |
| Special Features | Dual Service |
| Special Features | Glass Sides |
| Special Features | LED Lighting |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor; 5-year Compressor |
| Width (in) | 36.25 |
| Weight | 780.00 |
WARNING: Important Prop 65 information for California residents.
- Federal CRR3628/RSS3SC
- Federal CD3628/RSS3SC
Other Products From This Line
Compare to Similar Items
| Attributes |
Current Item: Federal CD3628SS/RSS3SC 36" Vertical Open Air Cooler w/ (6) Levels, 120v |
Federal CRR3628/RSS3SC 36" Vertical Open Air Cooler w/ (6) Levels, 120v |
Federal CD3628/RSS3SC 36" Vertical Open Air Cooler w/ (6) Levels, 120v |
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $14,700.00 | $17,497.00 | $13,311.00 |
| Shipping | Ships Free | Ships Free | Ships Free |
| Lead Time | Typically ships in 3 - 4 weeks | Typically ships in 3 - 4 weeks | Typically ships in 3 - 4 weeks |
| Design | Vertical | Vertical | Vertical |
| Width (in) | 36.25 | 36.25 | 36.25 |
| Number of Levels | 6 | 6 | 6 |
| Color | Black | Black | Black |
| Rating | Best | Best | Best |
| Depth (in) | 39 | 43.25 | 39 |
| Voltage | 120 | 120 | 120 |
| Special Features | Adjustable Shelf Angle | Adjustable Shelf Angle | Adjustable Shelf Angle |
| Warranty | 1-year Parts & Labor; 5-year Compressor | 1-year Parts & Labor; 5-year Compressor | 1-year Parts & Labor; 5-year Compressor |
