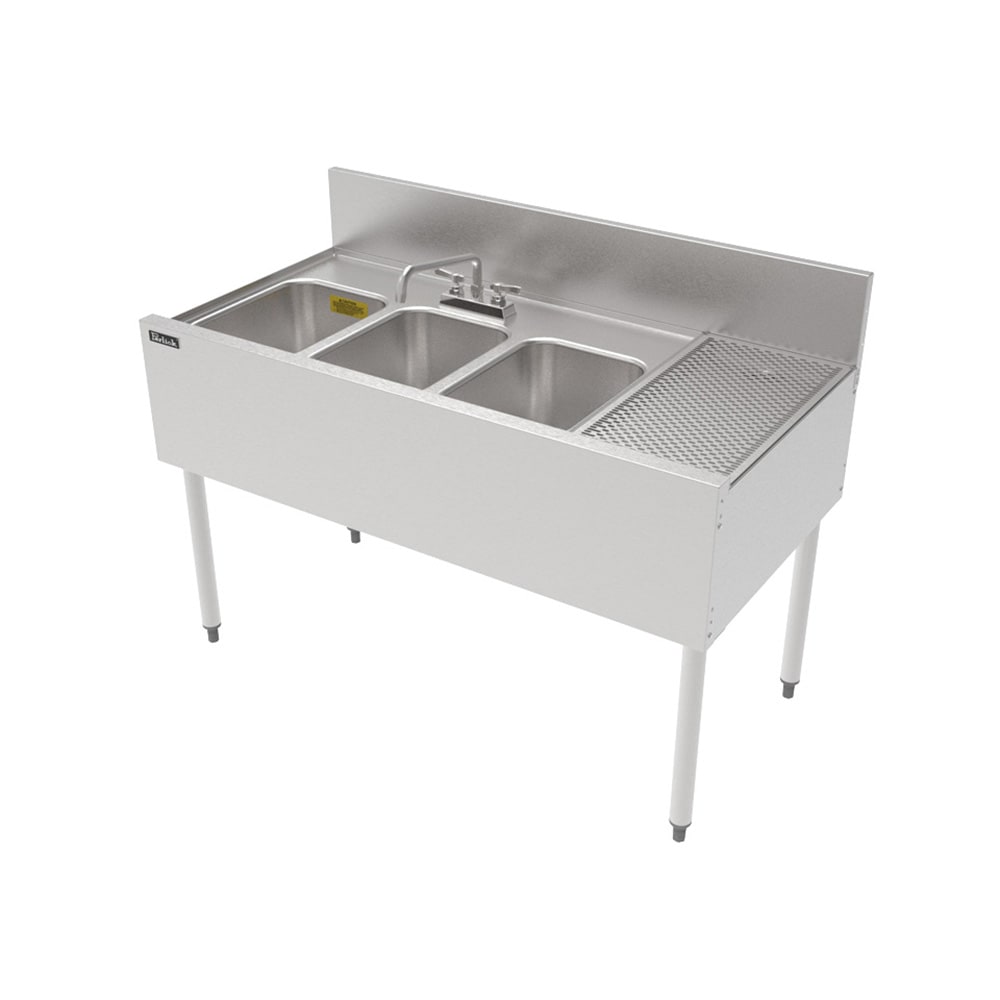

Perlick TSF48M3-DBR 72" 3 Compartment Sink w/ 14"L x 10"W Bowl, 9 1/4" Deep
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Perlick TSF48M3-DBR Description

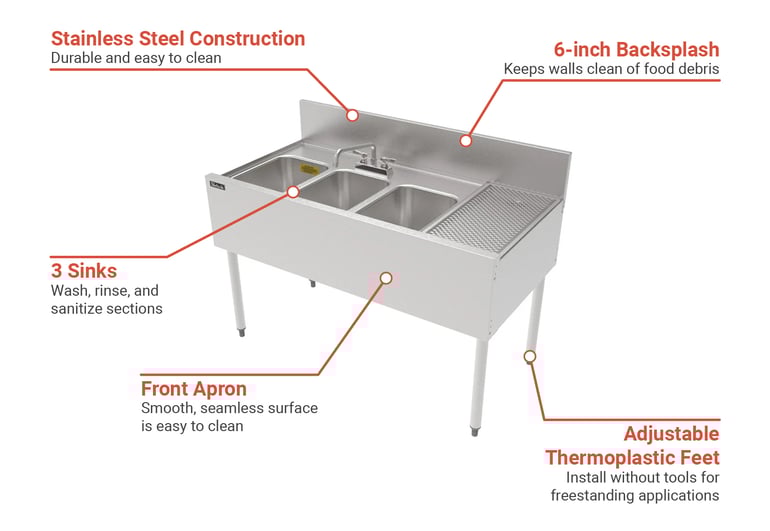

To provide an area for clean dishes to dry, the Perlick TSF48M3-DBR compartment sink has a 12-inch pitched drainboard on the right side of the unit. Made for underbar configurations, this unit can be a useful addition to back-bar setups. With three sink compartments that can be used for washing, rinsing, and sanitizing, this unit can properly clean dishes and glassware for continued use. To protect the wall behind it from water damage, the sink is built with a stainless steel backsplash measuring 6 inches high.
A part of the TSF series, the Perlick TSF48M3-DBR compartment sink is made of durable stainless steel. This material is resistant to dents, scratches, and corrosion, so it can withstand persistent use in a busy kitchen environment. The seamless front apron is easy to clean. Each of the four stainless steel legs has thermoplastic feet that can be adjusted as needed. With deck-mount faucet holes, this unit can hold a deck-mount faucet that must be ordered separately.
Product Details
- TSF series
- Underbar, multi-tank design
- Made of dent- and corrosion-resistant 18-gauge stainless steel
- 6-in. backsplash (4-in. option available)
- Seamless front apron
- 12-in. pitched drainboard top on the right
- Back-center drainboard drain location
- (4) stainless steel legs with 1-in. adjustable thermoplastic feet
- 11/2-in. NPS male drain connection
- 3/8-in. stainless steel braided supply lines
Sink Compartments
- 3 Sink compartments
- Horizontal and vertical edges have 11/2-in. radius with balled corners
- 11/2-in. drain socket
- 81/2-in. standpipe
- Faucet must be ordered separately
Dimensions
- Bowls: 14 in. L x 10 in. W x 91/4 in. D
- Overall: 443/4 in. W x 189/16 in. D x 36 in. H
Product Features
*Free shipping on Perlick TSF48M3-DBR within the 48 contiguous states.
From The Manufacturer
TSF Series Underbar Multi-tank Sink Unit, three 18 gauge stainless steel compartment, 48"W x 24"D, backsplash, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 12" pitched drainboard top on the right, 4" OC (TS) splash or (TSF) deck mount faucet holes, seamless 18 gauge stainless steel front apron, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel construction, Perlick Quick Clamp tool less leg attachment, stainless steel legs with adjustable thermoplastic feet (replaces TSD43L)
*Image may not depict product color, inclusions or accessories.
Perlick TSF48M3-DBR Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Perlick |
| Backsplash Height (in) | 6 |
| Depth (in) | 24 |
| Drainboard Length (in) | 12 |
| Drainboard Location | Right |
| Faucet Centers (in) | 4 |
| Faucet Mount | Deck |
| Height (in) | 36 |
| Length (in) | 48 |
| Product | Compartment Sinks |
| Product Type | Commercial Sinks |
| Series | TSF Series |
| Sink Depth (in) | 9.25 |
| Sink Length (in) | 14 |
| Sink Width (in) | 10 |
| Special Features | Skirted |
| Special Features | Under Bar |
| Stainless Steel Gauge | 18 gauge |
| Warranty | 1-year Against Defects in Material & Workmanship |
| Weight | 115.00 |
