Perlick TS54M3-EC Description

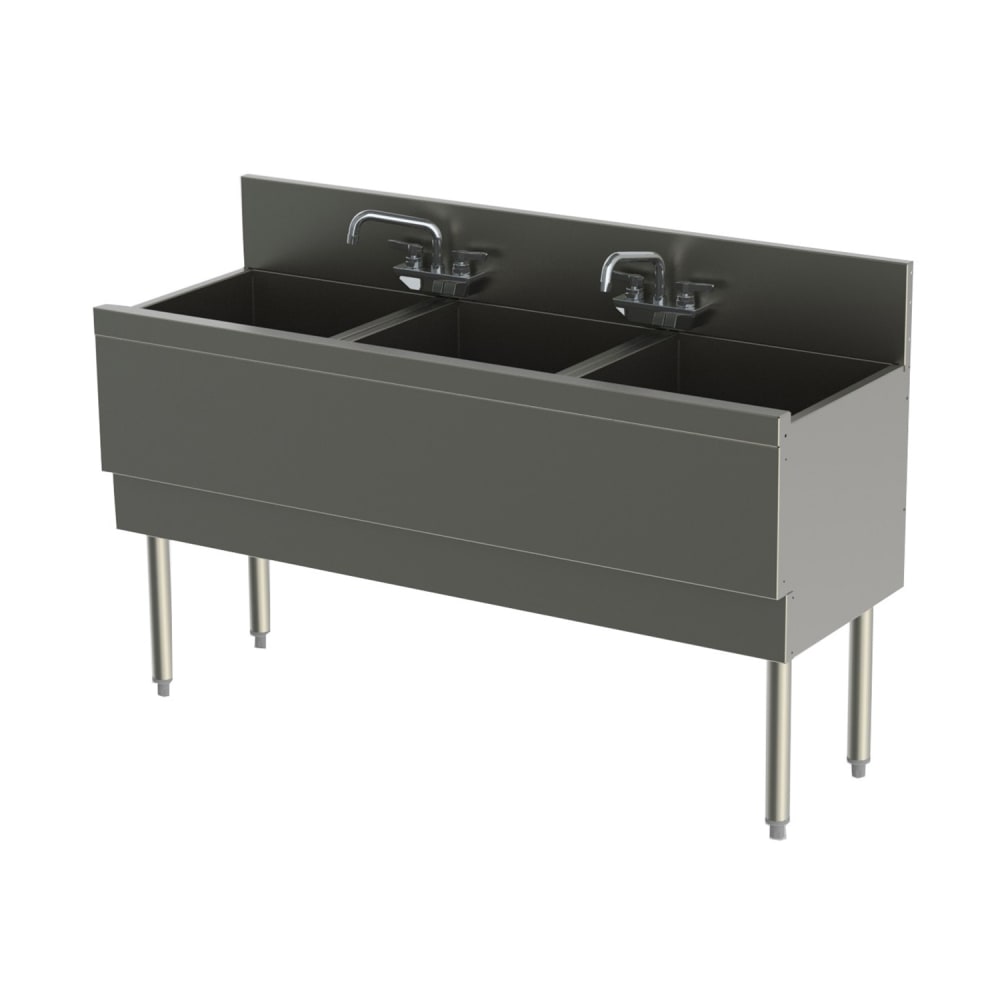

Made of 20-gauge stainless steel, the Perlick TS54M3EC compartment sink is resistant to dents and corrosion to withstand persistent use in a busy kitchen environment. This unit measures 54 inches wide by 189/16 inches deep by 36 inches tall and is designed for back-bar setups. With its extra capacity, this unit provides users ample space for washing and sanitizing dinnerware.

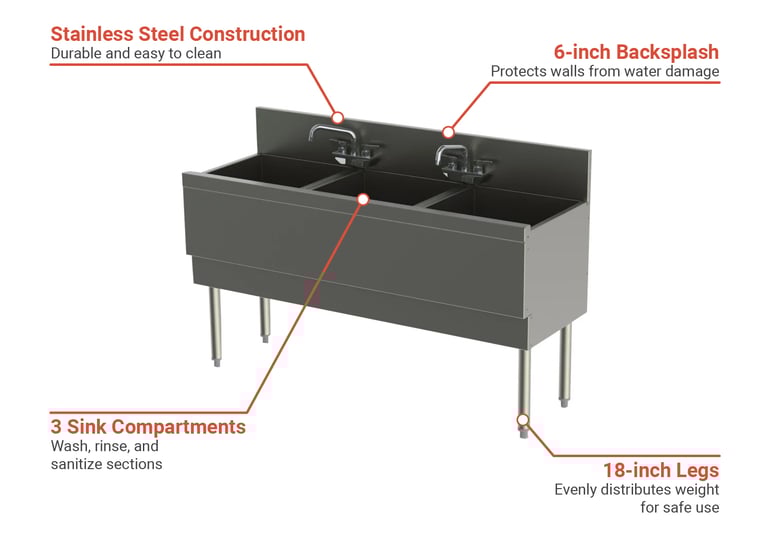

The 6-inch backsplash on the Perlick TS54M3EC compartment sink helps protect the wall behind the unit from water damage. To distribute weight evenly and ensure stability during use, this unit sits atop four tubular stainless steel legs with 1-inch thermoplastic feet. Each sink compartment has balled corners to permit efficient cleaning and is equipped with a sound-deadening underside.
Product Details
- TS series
- Underbar design
- 20-gauge stainless steel
- (4) 15/8-in. stainless steel with adjustable 1-in. thermoplastic feet
- 6-in. backsplash with 4-in. option
- 11/2-in. NPS male drain connection
- Hot and cold connections with 1/4 NPT female connection
Sink Compartments
- 3 sink compartments
- Horizontal corners have 1/4-in. radius and vertical corners have 3/16-in. radius
- Balled corners
- 11/2-in. drain socket
- 12-in. standpipe
- Sound-deadening underside
- Faucet must be ordered separately
Dimensions
- Bowls: (3) 16 in. L x 161/4 in. W x 15 in. D
- Overall: 54 in. W x 189/16 in. D x 36 in. H
Product Features
From The Manufacturer
TS Series Extra Capacity Underbar Sink Unit, three compartment, 54"W x 18-9/16"D, 6"H backsplash, 16-1/4" wide x 16" front-to-back x 15" deep compartment, 4" OC splash mount faucet holes (TS) or 4" OC deck mount faucet holes (TSF), apron on front & sides, sound-deadened underside, includes (1) 1-1/2" drain & (1) 12" standpipe, stainless steel construction, stainless steel legs with adjustable thermoplastic feet (replaces TS543CA)
*Image may not depict product color, inclusions or accessories.
Perlick TS54M3-EC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Perlick |
| Depth (in) | 18.56 |
| Height (in) | 36.5 |
| Length (in) | 54 |
| Warranty | 1-year Against Defects in Material & Workmanship |
| Series | TS Series |
| Sink Width (in) | 16 |
| Sink Length (in) | 16.25 |
| Sink Depth (in) | 15 |
| Faucet Mount | Splash |
| Backsplash Height (in) | 6 |
| Stainless Steel Gauge | 20 gauge |
| Product | Compartment Sinks |
| Product Type | Commercial Sinks |
| Faucet Centers (in) | 4 |
| Weight | 205.00 |
