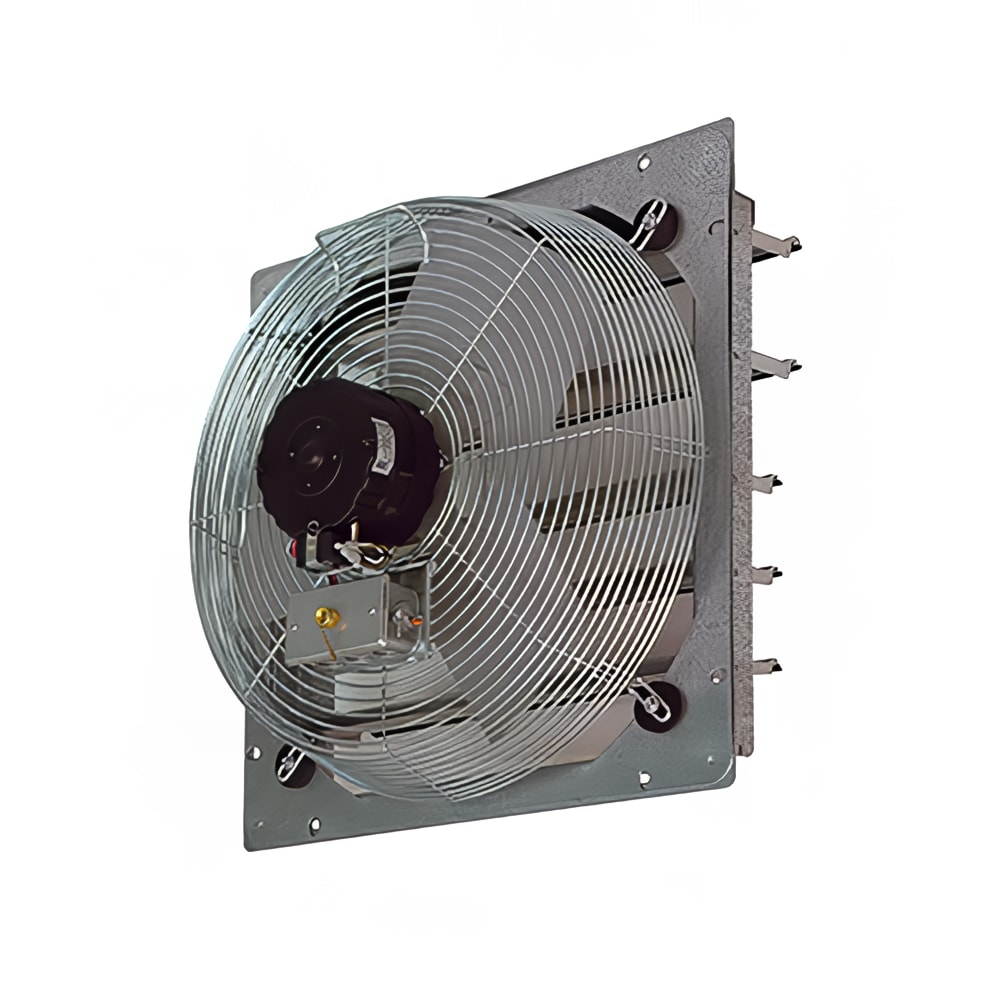

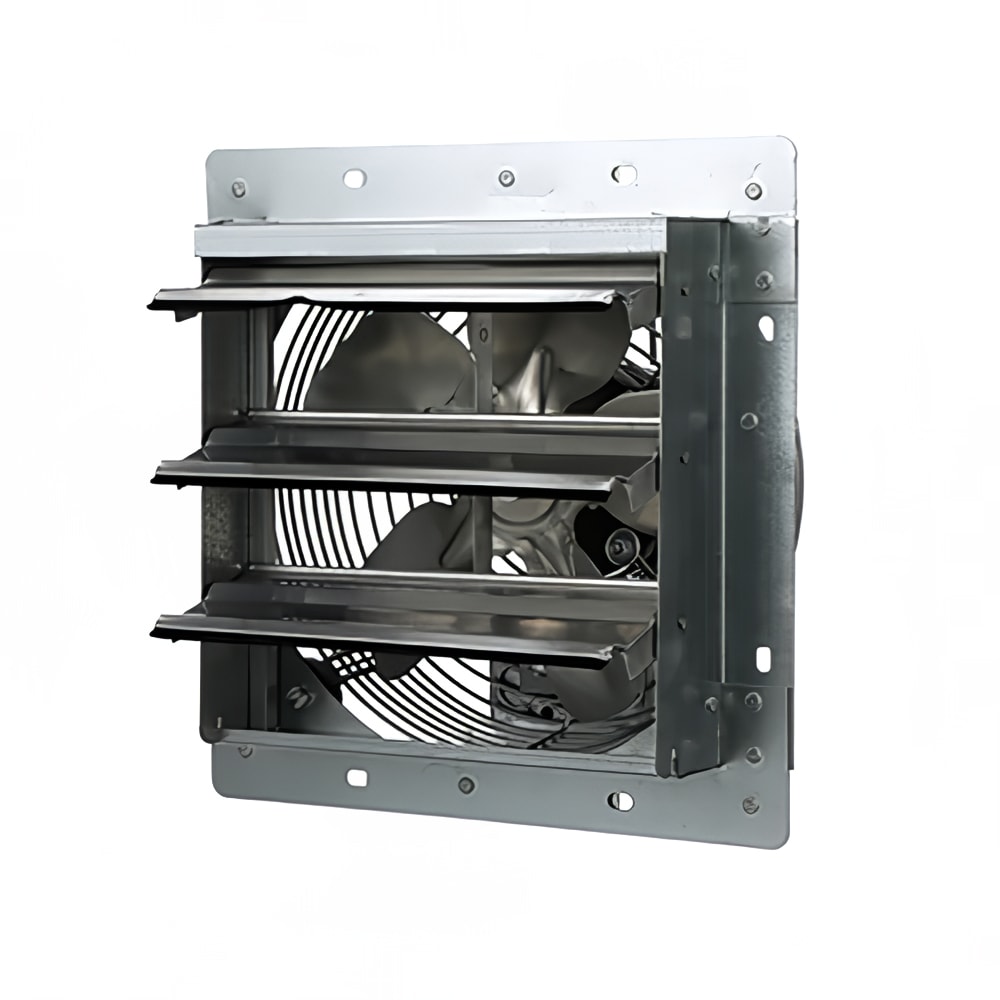

TPI CE24DS 24" Shutter Mounted Exhaust Fan - Direct Drive, 120v
Typically ships in 9 - 13 Business Days
TPI CE24DS Description
From The Manufacturer
Shutter Mounted Exhaust Fan, direct drive, 24" blade size, 27.13"W x 27.13"H, Can be installed from inside wall, Pull chain switch, No Cord-Junction box provided for direct wiring, Aluminum blade, Steel spiral wire guards, 2 speeds, 3400 CFM high, 1/4 HP, 1140 RPM high, 2.5 amps, galvalanized, 120v/60/1ph
*Image may not depict product color, inclusions or accessories.
1-year
TPI CE24DS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | TPI |
| Amps | 3.2 |
| Color | Silver |
| Construction | Aluminum |
| Depth (in) | 9.12 |
| Height (in) | 27.13 |
| HP | 0.25 |
| Material | Aluminum |
| Mounting Location | Shutter |
| Voltage | 120 |
| Warranty | 1-year |
| Width (in) | 27.13 |
| Series | CE-DS |
| No. of Speeds | 2 |
| RPM | 1140 |
| Blade Length (in) | 24 |
| Product | Fans |
| Product Type | Facility Maintenance |
| Blade Diameter (in) | 24 |
| Mounting Style | Shutter |
| CFM | 3400 |
| Max CFM | 3400 |
| Min CFM | 2770 |
| Weight | 54.00 |
Documents
Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
