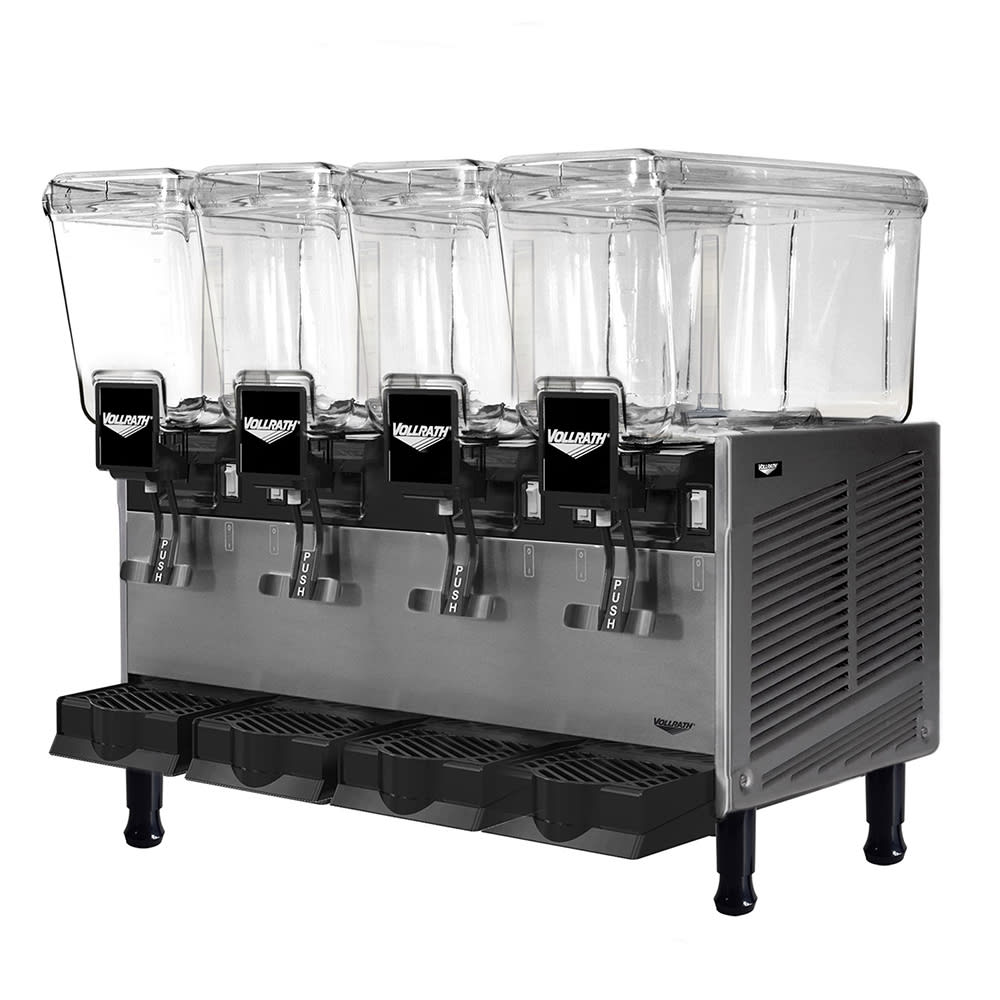

Vollrath VBBD4-37-F Pre Mix Refrigerated Dispenser w/ (4) 3 1/5 gal Bowls - Fountain Spray Circulation, 115v

To accommodate high-volume applications, the Vollrath VBBD4-37-F pre-mix refrigerated beverage dispenser is furnished with four 3.17-gallon polycarbonate food-grade bowls that are transparent to effectively merchandise product to customers. A magnetic-drive fountain spray bowl circulation agitates product, ensuring freshness as it's served. Each bowl’s correlating thermostat helps operators adjust temperatures to meet specific drink requirements. It uses an R134a refrigerant to produce and maintain temperatures between 35 and 41 degrees Fahrenheit.

Stainless steel gravity-fed spigots located at the bottom of the Vollrath VBBD4-37-F refrigerated beverage dispenser’s bowls release beverages immediately when operators press the corresponding button without electrical or mechanical operation. An ABS plastic tray built beneath the bottom of the spigots traps spills and dribbles that would otherwise create messes on countertops. Designed to endure daily, heavy-duty use, the unibody cabinet is made of corrosion- and rust-resistant stainless steel. Overall, it measures 28⁵/₈ inches wide by 18¹/₂ inches deep by 25¹/₂ inches high.

Product Details

• Operates with magnetic-drive fountain spray bowl circulation
• (4) 3.17-gal. food-grade polycarbonate bowls with transparent structure
• 4 gravity-fed stainless steel, drip-free spigots
• ABS plastic tray catches spills beneath spigots
• Rust- and corrosion-resistant stainless steel unibody cabinet
• 1 thermostat per bowl (4 total)
• Bowl holding temperature range: 35-41 degrees F
• R134a refrigerant
• 1 rocker switch per bowl
• Removable bowls and dispensing handles
• Indoor use
• Clearance: 6 in. on all sides
• Required ambient temperature: 41-86 degrees F
• 3,660 BTU per hour

Product Features

Dimensions & Utilities

• 28⁵/₈ in. W x 18¹/₂ in. D x 25¹/₂ in. H
• 16 A
• 115 V/60 Hz/1 ph, NEMA 5-15P plug

*Free shipping on Vollrath VBBD4-37-F within the 48 contiguous states.

From The Manufacturer

Vollrath Pre-Mix Refrigerated Beverage Dispenser, electric, fountain spray circulation, (4) 3.2 gallon polycarbonate food grade bowls, 35° to 41°F temperature range, (1) thermostat per bowl, rocker controls, stainless steel unibody cabinet, gravity fed, stainless steel spigot, ABS plastic drip trays, R134a, 115v/60/1-ph, 16 amps, NEMA 5-20P, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor
