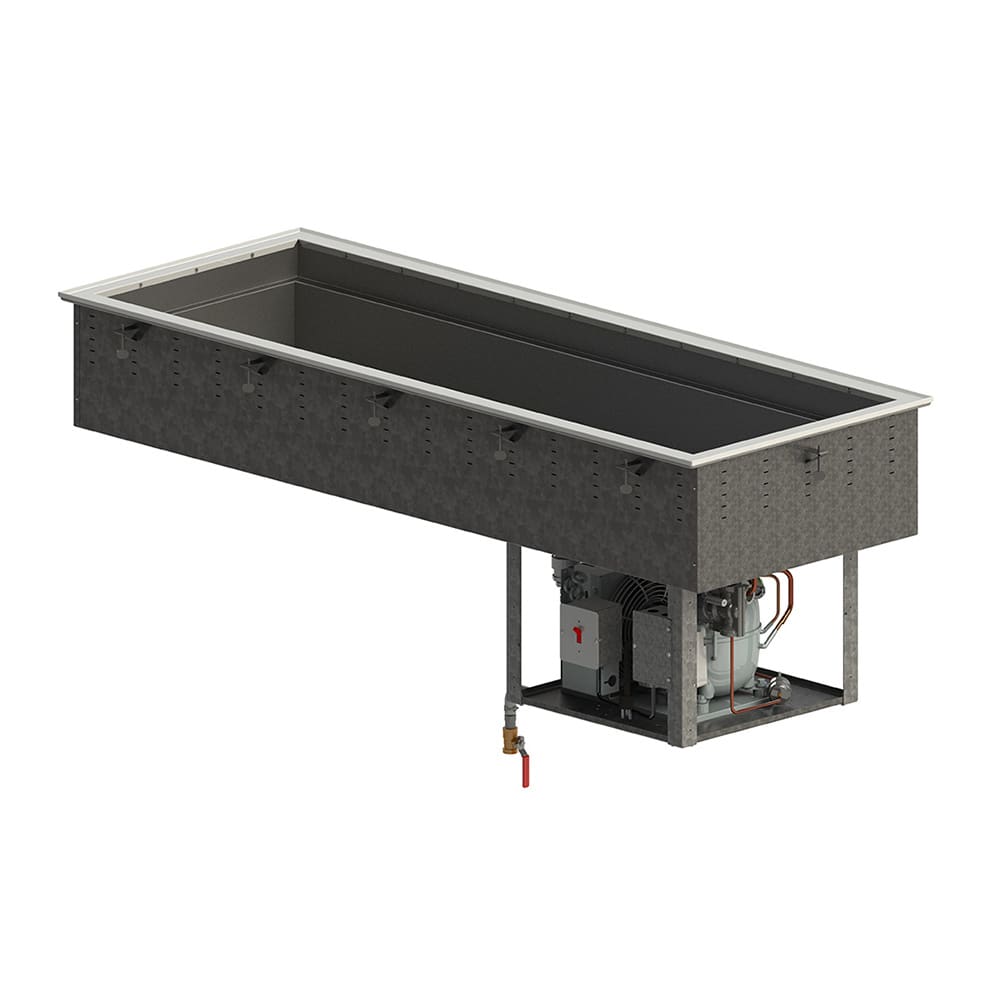

Vollrath FC-4C-06120-N 81 1/4" Drop In Refrigerator w/ (6) Pan Capacity - Cold Wall Cooled, 120v

Great for high-volume cafeteria and buffet service, the Vollrath FC-4C-06120-N NSF7 refrigerated cold pan is designed for in-surface, countertop installation. It features one stainless steel well that accommodates six 12-inch by 20-inch pans, and it includes adapter bars for configurations of smaller pans. For additional durability and corrosion resistance, it's encased in galvanized steel, and to contain condensation and leaks, it features a full-perimeter drip edge and gasket. Overall, this unit measures 26 inches long by 81¹⁄₄ inches wide and requires a countertop cutout of 25¹/₄ inches long by 80¹⁄₂ inches wide for installation.

To keep deli meats, cheeses, and produce cool, the Vollrath FC-4C-06120-N drop-in refrigerator utilizes R513A refrigerant and is fully insulated with high-density polyurethane foam. Its 20-inch-long by 75⁷⁄₈-inch-wide by 6⁵/₈-inch-deep well is lined with refrigeration coils, and to protect exposed product from ambient temperatures, it features a 3-inch recess that provides a cold air blanket. To clean after service, this unit has a 1-inch-diameter drain, and to ease maintenance, its condenser is housed beneath the unit. It features a simple on/off switch that's attached to a 4-foot cord for user-friendly operation.

Product Details

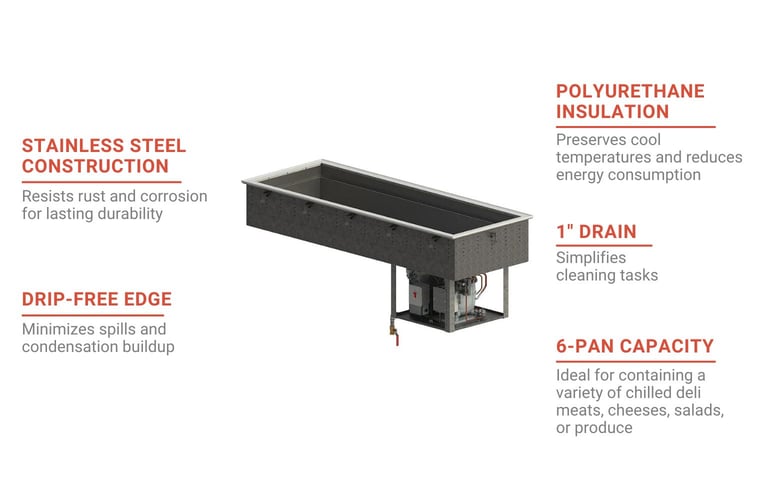

• 6-pan capacity
• Stainless steel construction
• Galvanized steel exterior
• Drop-in, top-mount design
• Full perimeter drip edge with gasket
• 3-in. recess encases top of pans with cold air
• Accommodates 12-in. x 20-in. pans
• Pan adapter bars
• 1-in.-diameter drain
• Refrigeration coils line wells to maximize cooling
• High-density polyurethane insulation
• Remote on/off switch with 4-ft. cord
• R513A refrigerant
• Bottom-mounted condenser unit
• 4,800 BTUH

Dimensions and Utilities

• Overall: 26 in. L x 81¹⁄₄ in. W
• Cutout: 25¹/₄ in. L x 80¹⁄₂ in. W
• Well: 20 in. L x 75⁷⁄₈ in. W x 6⁵/₈ in. D
• Requires ambient temperatures below 86 deg. F
• Requires minimum clearance of 80 sq. in. for fresh air intake and exhaust
• 7.8 A, ¹/₃ HP
• 120 V/60 Hz/1 ph, with 6 ft. cord and NEMA 5-15P plug

Product Features

*Free shipping on Vollrath FC-4C-06120-N within the 48 contiguous states.

From The Manufacturer

NSF7 Refrigerated Cold Pan, drop-In, 6-pan, 6-5/8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 300 series stainless steel, 20 gauge galvanized exterior housing, self contained refrigeration, 1/3 HP, 120v/60/1-ph, cord, NEMA 5-15P, 7.8 amps, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Against Defects in Material & Workmanship

Vollrath FC-4C-06120-N Specifications

Vollrath has been making commercial cookware for over 150 years. Offering serving items, food prep tools, smallwares, and more, Vollrath is a leading name in quality kitchen equipment and trusted by chefs around the world.

Documents

Spec Sheet

Parts Breakdown

Manual

Installation Guide

Product Info
