Vollrath CT4H-208550 Conveyor Toaster - 550 Slices/hr w/ 3" Product Opening, 208v/1ph

This Vollrath CT4H-208550 horizontal conveyor toaster can toast 550 slices in an hour. Because the opening is adjustable, it can fit standard sliced bread, bagel halves, and bun slices, and they can be placed side by side on the 10¹⁄₂-inch-wide conveyor. As products move through the chamber on the conveyor, they are toasted by heat from the quartz elements. Toasting levels depend on how long the product is in the chamber, so users can modify the conveyor speed to adjust the toast color. Its top and bottom elements can also be regulated by the operator, providing additional control that supports different product types.

In standby mode, the Vollrath CT4H-208550 commercial conveyor toaster can operate at lower temperatures when business is slow, and in this mode, the unit saves energy by as much as 75 percent. Its forced convection system circulates heat for uniform results through different batches. Durable for heavy use, this unit is made of corrosion-resistant stainless steel and aluminized steel.

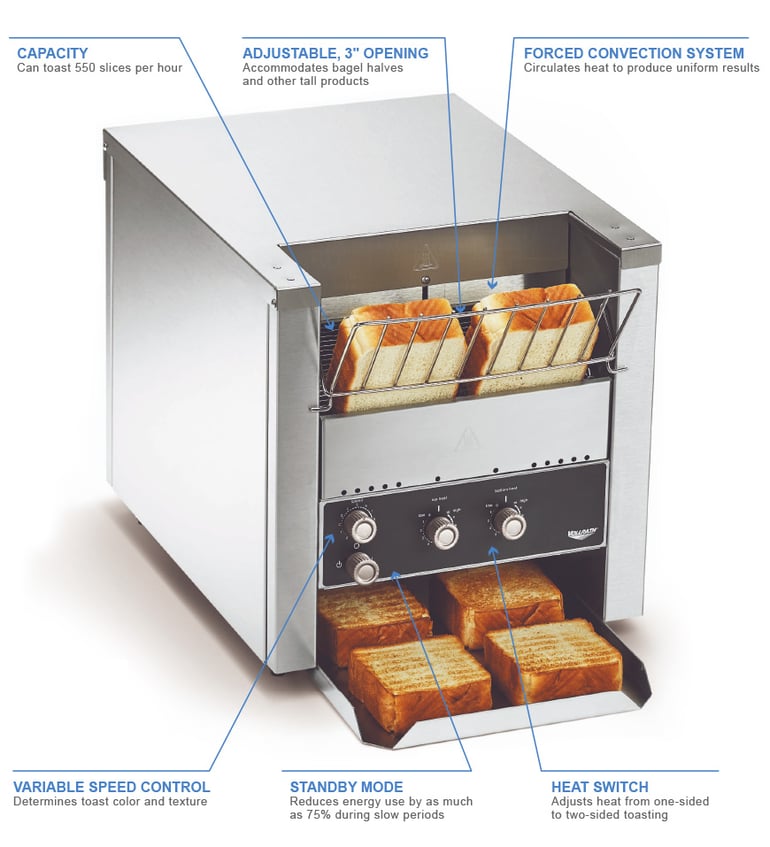

Product Details

• Can toast 550 slices per hr.
• Adjustable, 1¹⁄₂ to 3-in. conveyor opening
• 10¹⁄₂-in.-wide conveyor can accommodate 2 slices of bread side by side
• Variable conveyor speed control lets the operator choose how dark the bread gets by regulating how much time it spends in the chamber
• Modifiable top and bottom heat control
• Forced convection system moves heat throughout the chamber evenly to ensure toasting results are uniform
• Fan control switch senses the chamber temperature, keeping the fan on when the unit is cooling down
• Standby mode conserves energy by as much as 75 percent when business is slow
• Stainless steel drive chain and high-temperature bearings reduce maintenance needs because they do not require lubrication
• High-quality, insulated wires resist dry rotting and cracking
• Made of stainless, aluminized steel for dent, scratch, and corrosion resistance
• 1-in. adjustable legs stabilize on uneven countertops

Product Features

Dimensions & Utilities

• 14¹⁄₈ in. W x 23³⁄₄ in. D x 15¹⁄₈ in. H
• 13.5 A, 2800 W
• 208 V/60 Hz/1 ph, 4¹/₂-ft. cord with a NEMA 6-20P plug

*Free shipping on Vollrath CT4H-208550 within the 48 contiguous states.

From The Manufacturer

Conveyor Toaster, horizontal conveyor, all bread types, (550) slices per hour, 3" opening x 10-1/2"W belt (2 slice), variable top & bottom heat control, variable speed control, power saver mode, quartz heaters, fan safety switch, stainless steel and aluminized steel construction, 1" adjustable legs, 208v/60/1-ph, 2.8 kW, 13.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor

Vollrath CT4H-208550 Specifications

Vollrath has been making commercial cookware for over 150 years. Offering serving items, food prep tools, smallwares, and more, Vollrath is a leading name in quality kitchen equipment and trusted by chefs around the world.
