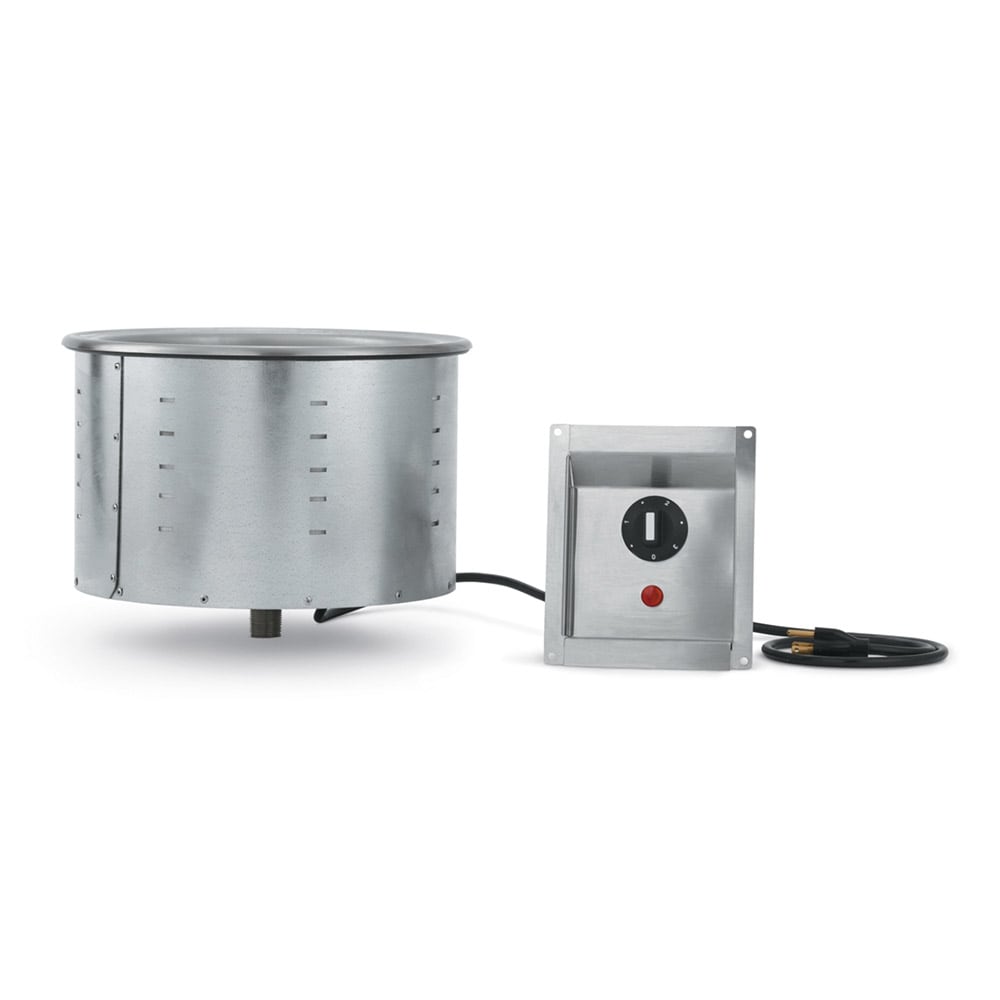

Vollrath 36462 7-1/4-qt Soup Well Modular Drop-In - Infinite Control, 120v

KaTom #: 175-36462 • MPN: 36462

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $737.30
$341.75 / Each

Vollrath 36462 Description

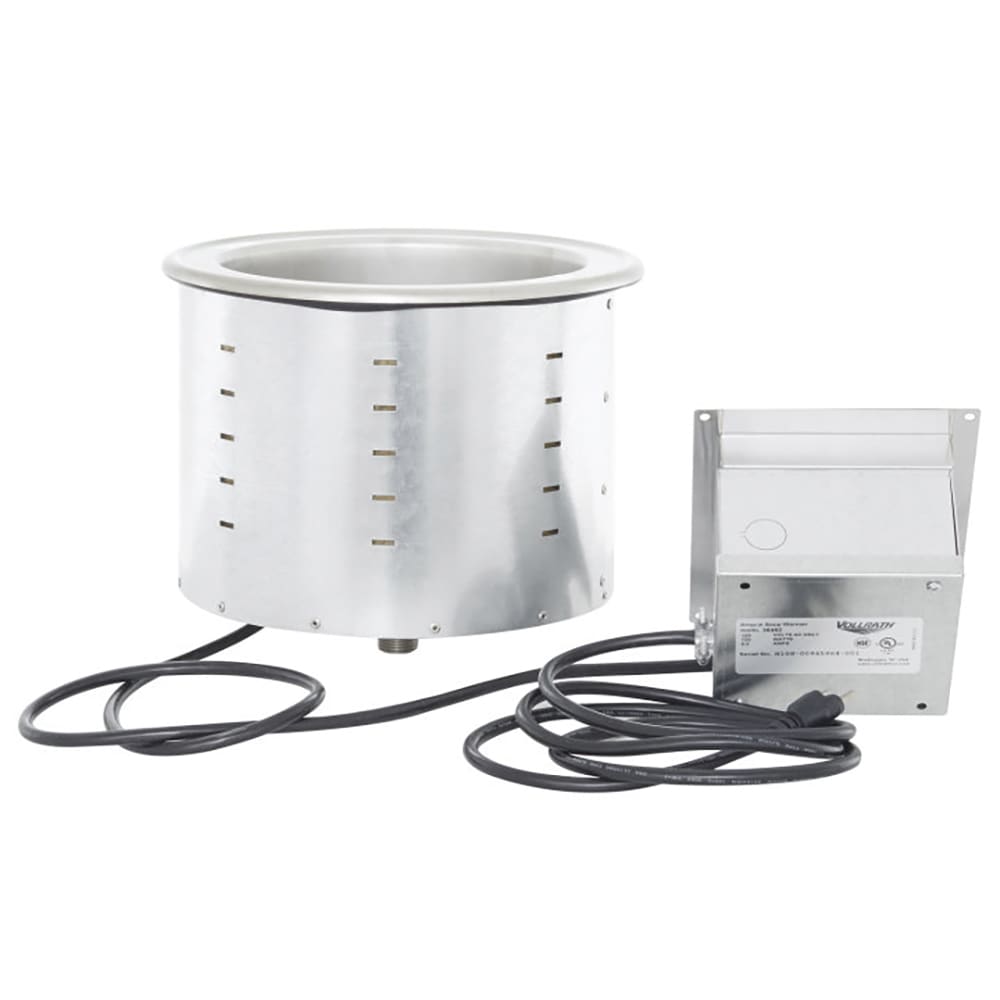

Designed for top-mount installation, the Vollrath 36462 modular drop-in soup well does not require hard-wiring. Instead, it plugs into a standard 120-volt outlet. To ensure a flush fit with the countertop to make cleaning simpler, the well comes with a flat flange and a gasket. A stainless steel drain nipple is welded to the inside of the well. With its stainless steel and double wall construction, the well is durable and designed for a long life.

High-density fiberglass insulation ensures that heat stays in the well. This drop-in warmer comes with a stainless steel control panel and mounting brackets. A molded breaker gasket fits under the drip edge, and there is a flat work surface around the Vollrath 36462 modular drop-in soup well’s opening so nothing gets caught and cleaning is easy.

Product Details

  • Designed for top-mount installation
  • Stainless steel exterior housing and well make the unit durable
  • Double wall construction and fiberglass insulation keep heat inside the well
  • Provides moist heat to maintain food's texture when the water pan is sufficiently filled

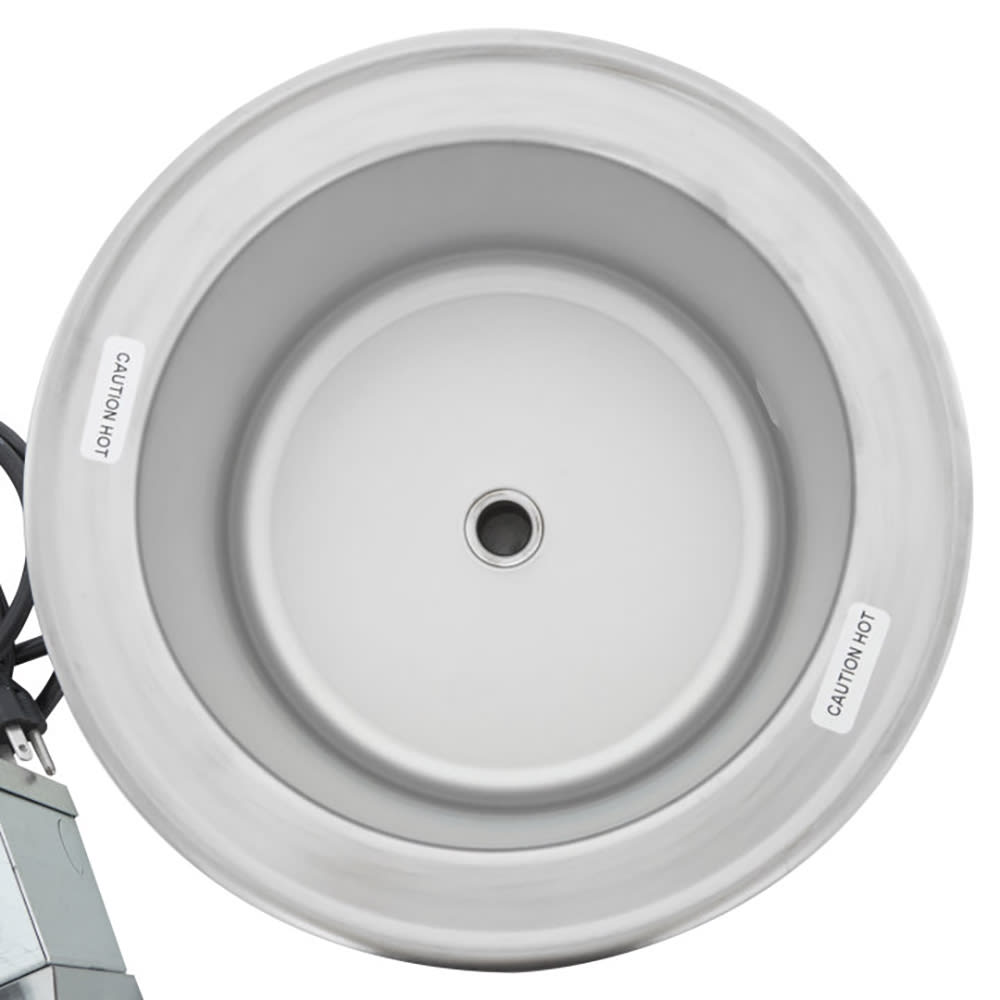

  • Long life is ensured since a stainless steel drain nipple is welded in the interior
  • Flat flange with a gasket ensures a flush fit against the countertop
  • Molded breaker gasket fits under the drip-edge
  • Flat work surface around the well’s opening makes cleaning easier

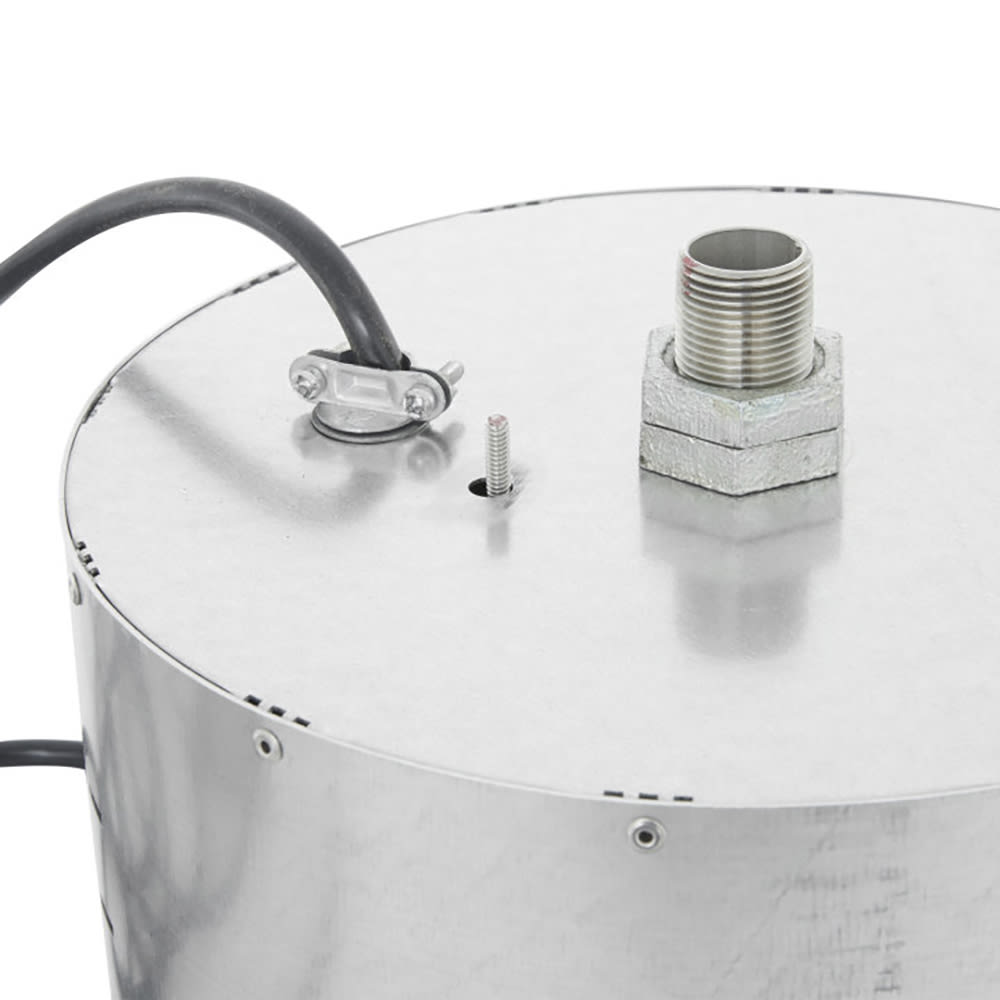

  • 34 in. drain is welded to the pan with a ball valve shutoff under the exterior housing
  • Holds vegetable insets

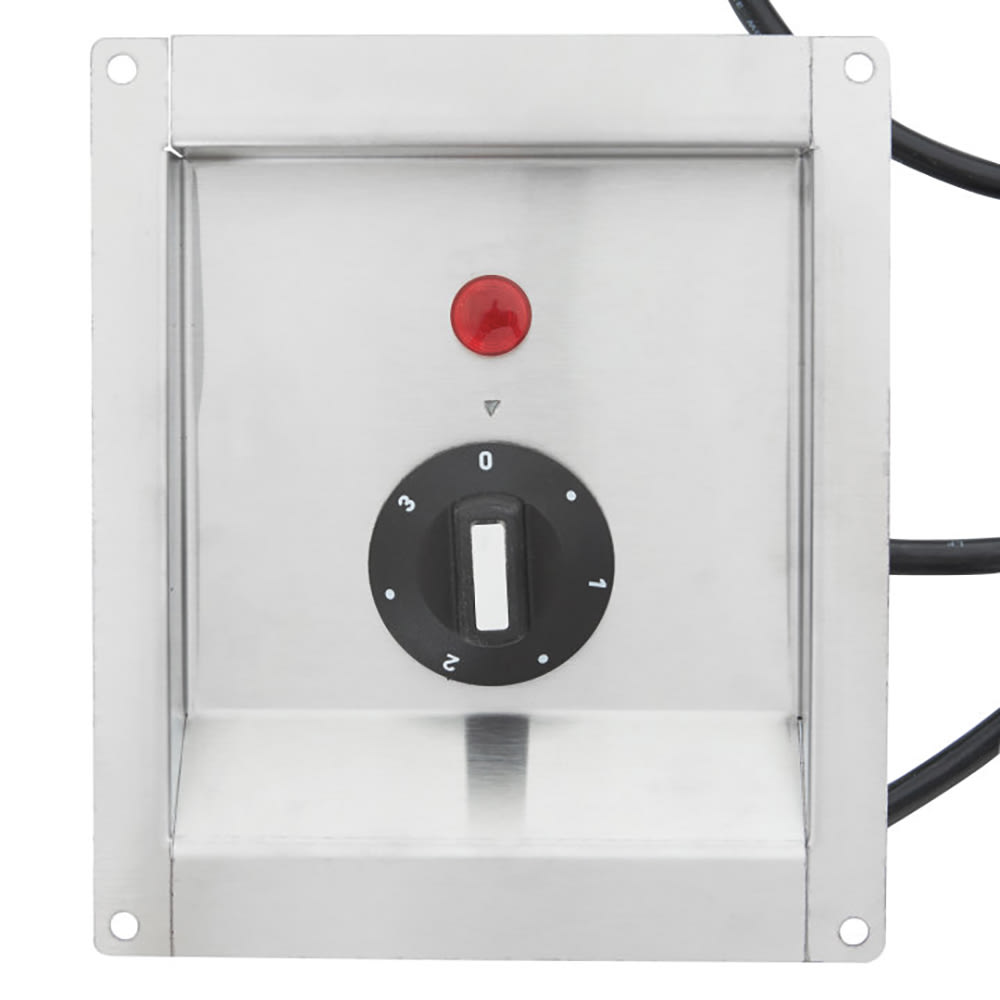

  • Supplied with stainless steel control panel
  • Mounting brackets are included
  • No hard wiring is required
  • 120 V/60 Hz/1 ph, 720 W, 6 A, 6 ft. cord with a NEMA 5-15P plug
  • Overall Dimensions: 10516 in. dia. x 111116 in. H
  • cULus listed; NSF certified

Soup Well, drop-in, infinite control mounted in stainless steel corded control panel, accommodates (1) 7-1/4 quart inset, over flange 10-3/16" dia., cutout 10-9/16" dia, outside 11-3/16" dia, well outer 10-5/16" dia., 3/4" drain, 120v/60/1-ph, 720 watts, 6.0 amps, 6 ft. cord with NEMA 5-15P, cULus, NSF, Made in USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Vollrath 36462 Specifications

PDF Spec Sheet
Manufacturer Vollrath
Weight 14.80
Vollrath 36462 Certifications
  • UL
  • NSF
