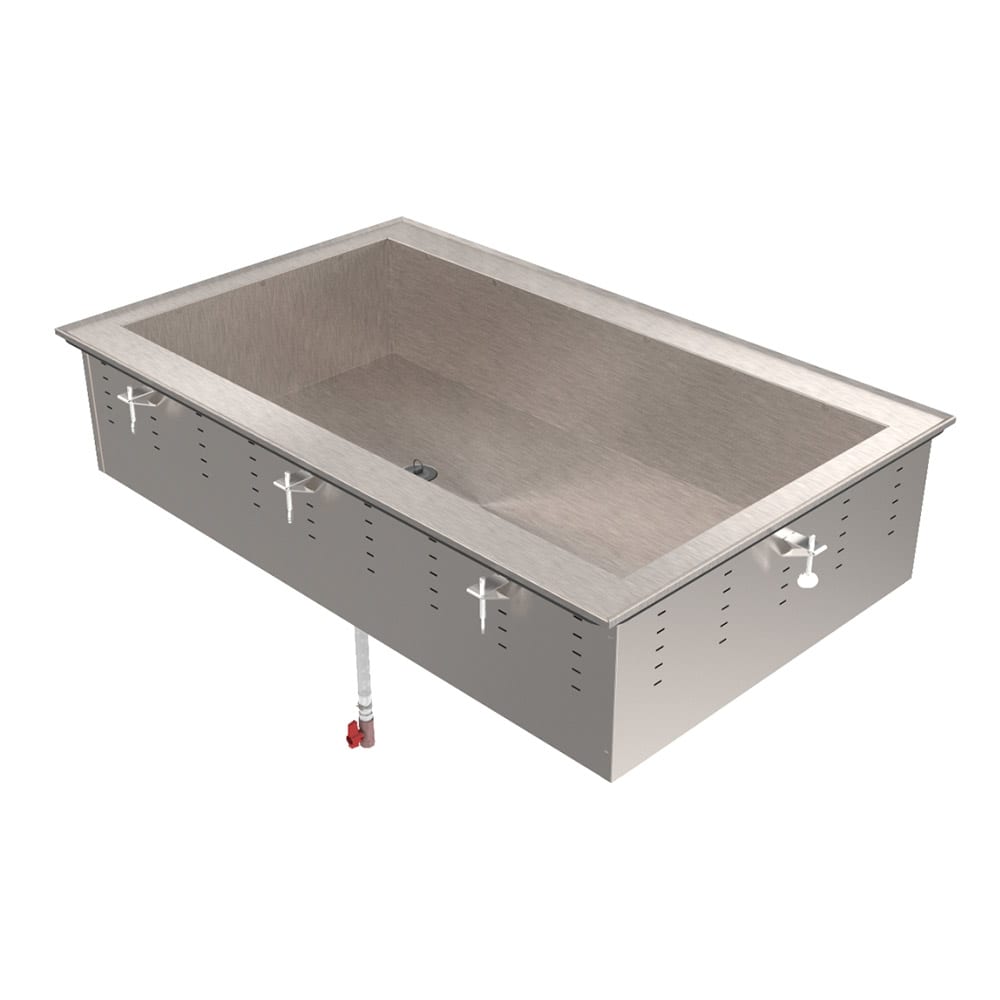

Vollrath 36452 55" Drop-In Cold Well w/ (4) Pan Capacity, Ice Cooled

KaTom #: 175-36452 • MPN: 36452
special-order-item close Special Order Item Special order items may require additional time to fulfill and cannot be returned or canceled. Your special order item will be shipped once your item is ready and your payment has been processed. Please call us at 800-541-8683 for more information.

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $2,265.20
$1,019.34 / Each

Vollrath 36452 Description

This Vollrath modular 4-pan refrigerated drop-in, cold pan is designed for top-mount installation and comes with a full-perimeter drip edge to contain spills and condensation within the stainless steel countertop area of the drop-in. Keep your cold items ready for your customers with this refrigerated cold pan from Vollrath!

Standard Features and Benefits:

  • Vollrath 4-pan non-refrigerated cold drop-in
  • Top is 18-8 gauge, type 304 stainless steel
  • Comes with a 3/8 in. (9.52 mm) overhang on all sides and die stamped with full-perimeter drip edge. Molded breaker gasket fitted under drip edge.
  • Flat work surface around opening.
  • Seamless well is 18-gauge 18-8 stainless Type 304, and is 8-in. (20.3-cm) deep
  • 1-in. (2.5 cm) integral drain is standard
  • Exterior housing is 18 gauge galvanized steel
  • Inner well assembly insulated with foamed-in-place polyurethane foam insulation
  • Temperature control on the compressor
  • Optional perforated false bottom is nominal 1-in. (2.5-cm) high and is constructed of 18-gauge type 304 stainless steel. False bottom will reduce pan depth by the same dimension.
  • 4-pans that are 8-in. deep
  • OA dim. 54-3/4 in. L x 26-in. W x 18-in. H
  • Inside dim. 50-1/4 in. L x 19-7/8 in. W
  • Cutout dim 54-in. L x 25-1/4 in. W, with a 7/8-in. corner radius required
  • Made in the USA

4-PAN NON-REFRIGERATED COLD PAN MODULAR DROP-IN, 18/8 stainless steel, drip-free flange, polyurethane foam insulated, 8" deep well, OA dim 54-3/4"Lx26"Wx18"H, inside dim 50-1/4"Lx19-7/8"W, cutout dim 54"x25-1/4", 7/8" corner radius required, 5 business day lead time, Made in U.S.A.

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Vollrath 36452 Specifications

PDF Spec Sheet
Manufacturer Vollrath
Access Top
Height (in) 18
Length (in) 55
Pan Capacity 4
Specialty Options Drain
Type Ice Well
Width (in) 26
Weight 200.00
