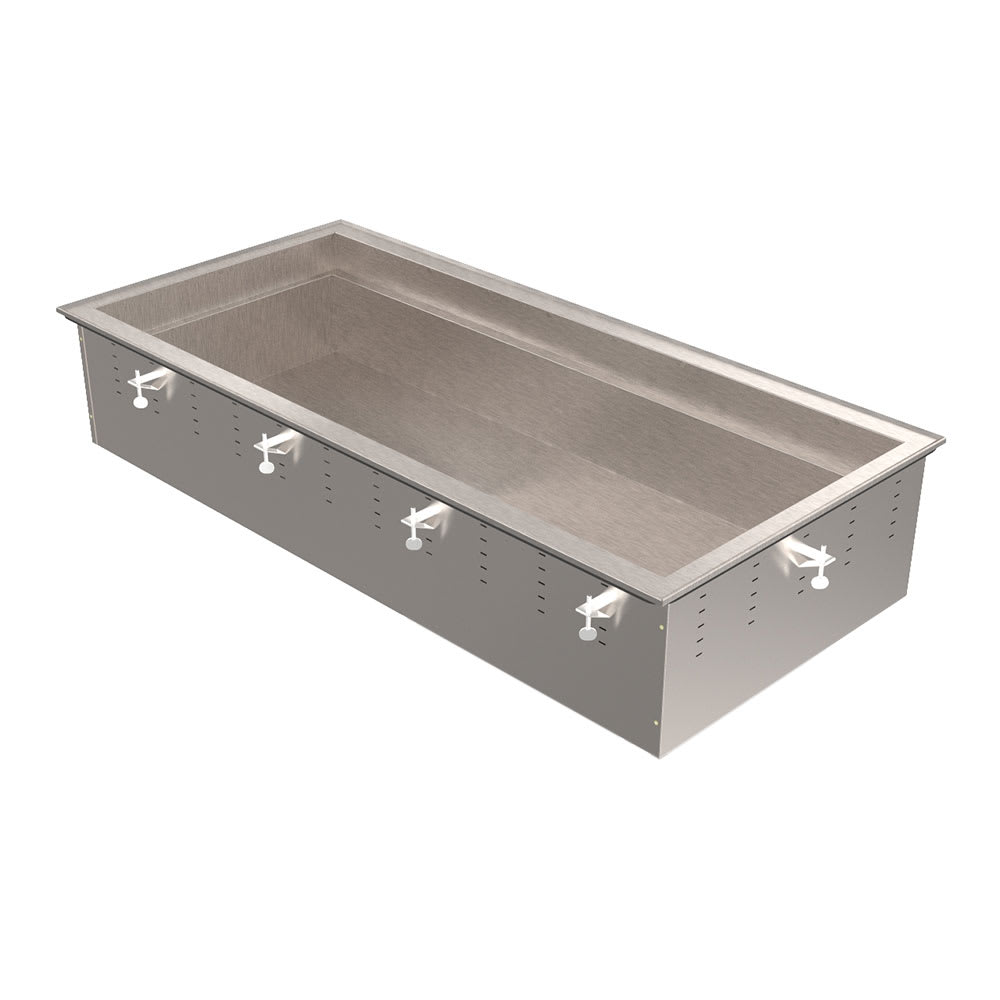

Vollrath 36434R 55" Drop-In Refrigerator w/ (4) Pan Capacity, Cold Wall Cooled, 120v

With its 6⁵/₈-inch-deep well designed to hold four full-size food pans and the ice required to keep it cool, the Vollrath 36434R drop-in refrigerator reduces downtime by keeping popular products close at hand and at their ideal temperatures. It fits into countertop cutouts measuring 54 inches long by 25¹/₄ inches wide. Additionally, its edge is rimmed with a drip-resistant flange to reduce spills and keep workstations clean.

The Vollrath 36434R refrigerated pan holder uses an 18/8 stainless steel formula for its body to protect it against damage and help expediate the cleaning process. Beyond its steel frame is a layer of polyurethane foam and copper tubing, giving it greater insulation and reducing upkeep costs. The hole unit is cooled using a remote compressor that hooks into the bottom of the unit.

Product Details

• 18/8 stainless steel well with 18-gauge galvanized steel exterior housing
• 4-pan capacity
• 6⁵/₈-in.-deep pan well
• Drip-resistant flange
• Insulated with polyurethane foam
• Uses a remote compressor set up (sold separately)
• Copper tubing included for operator-supplied thermostat control
• Fits in a 54-in. x 25¹/₄-in. cutout

Dimensions & Utilities

• Well: 50¹/₄ in. W 19⁷/₈ in. D x 10³/₄ in. H
• Overall: 54³/₄ in. W x 26 in. D x 18¹/₂ in. H
• 120 V/60 Hz/1 ph

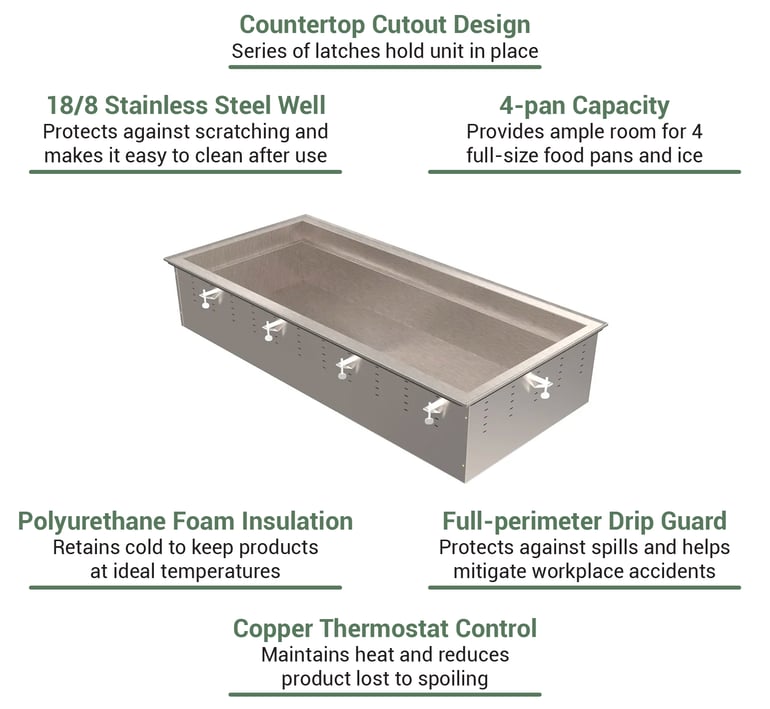

Product Features

*Free shipping on Vollrath 36434R within the 48 contiguous states.

From The Manufacturer

4-PAN NSF7 REMOTE REFRIGERATED COLD PAN DROP-IN, 18/8 stainless steel, 54" x 25-1/4" cutout, drip-free flange, polyurethane foam insulated, 6-5/8" deep well, NSF & UL listed, Made in U.S.A. (note: remote units do not include compressor), 120v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Vollrath 36434R Specifications

Documents

Spec Sheet

Manual

Installation Guide
