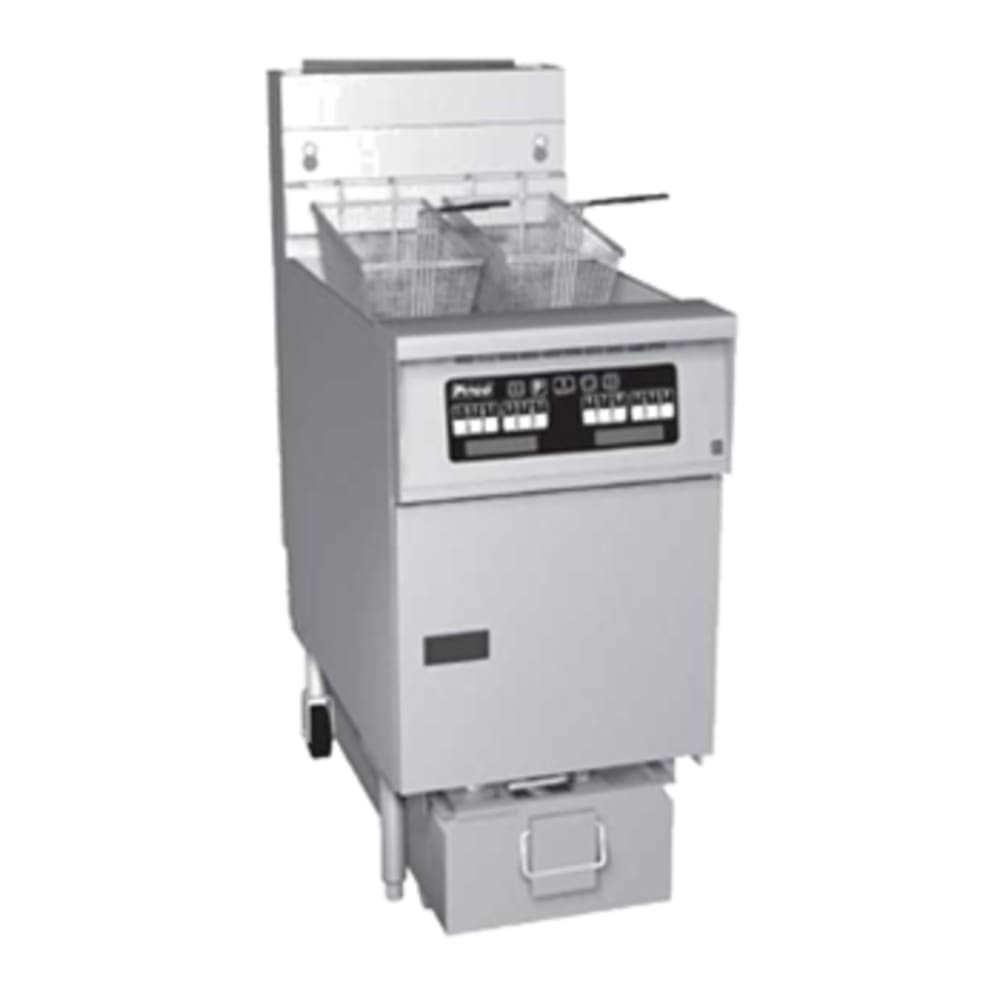

Pitco SG14RS-5FD Gas Fryer - (5) 50 lb Vats, Floor Model, LP

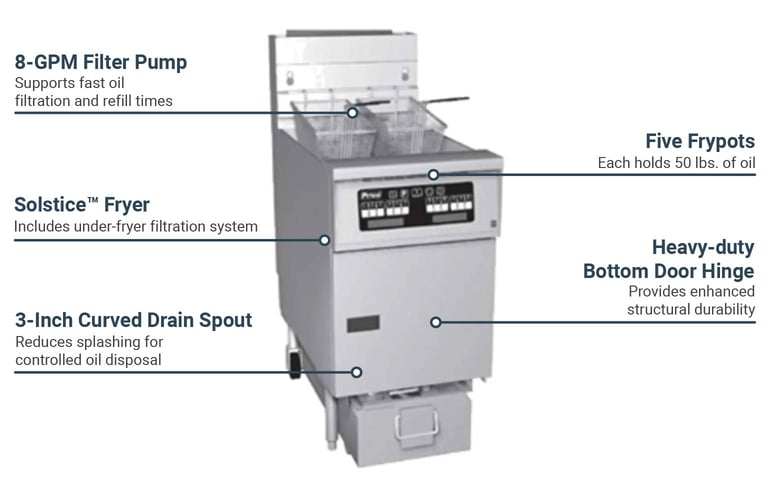

The Pitco SG14RS-5FD gas fryer is built with a heavy-duty ³/₁₆-inch bottom door hinge that reinforces structural durability, ensuring long-lasting performance in busy commercial kitchens. Designed for LP gas operation, this floor model fryer is part of the Solstice™ series and includes five full-size frypots, each holding 50 pounds of oil, totaling 250 pounds. The stainless steel tank, front, and sides provide a corrosion-resistant construction suitable for high-volume use. A matchless ignition system automatically lights the pilot when the unit is powered on, removing the need for an open flame. A tube rack collects food debris and directs crumbs into a cool zone, reducing oil contamination and extending oil life.

The extra-large 3-inch curved drain spout on the Pitco SG14RS-5FD fryer is designed to minimize splashing and allows for controlled oil disposal. The under-fryer filtration drawer system enhances oil circulation and supports two-step filtration for improved oil quality. A rear oil return system helps clear debris from the frypot bottom before recirculating oil, while the 8-GPM filter pump enables fast oil filtration and refill times. A 1 ¹/₄-inch full-port drain valve ensures quick and efficient oil removal, and separate manual gas shutoffs positioned at the front allow for easy servicing. The integrated flue deflector directs heat away from the workspace, helping maintain a comfortable kitchen environment. The fryer stands on 10-inch adjustable legs for stability and clearance during cleaning, while the stainless steel filter pan is fitted with rear wheels for enhanced mobility. A self-aligning filter connection simplifies setup, and the filter pan lid is designed for convenient self-storage.

Product Details

• Solstice series
• 5 full-size frypots
• 50-lb. oil capacity per frypot
• Holds 250 lbs. of oil
• Tank, front, and sides constructed of stainless steel
• Millivolt thermostat control
• Self-cleaning burner
• Downdraft protection
• High-temperature safety limit switch
• 1 ¹/₄-in. full-port drain valve
• Manual gas shutoffs
• Integrated flue deflector
• Under-fryer filtration drawer system
• Two-step filtration system
• Heavy-duty ³/₁₆-in. bottom door hinge
• Adjustable 10-in. legs
• Tube rack for directing debris into the cool zone
• Removable basket hanger
• 3-in. curved drain spout for controlled oil disposal
• 8-GPM filter pump
• Self-aligning filter connection
• Filter pan with rear wheels
• Self-storing filter pan lid

Dimensions & Utilities

• 14-in. x 14-in. frying area per frypot
• 3 ¹/₄-in. to 5-in. cook depth
• 610,000 total BTU (122,000 BTU per frypot)
• Powered by liquid propane

Product Features

*Free shipping on Pitco SG14RS-5FD within the 48 contiguous states.

From The Manufacturer

Solstice™ Prepackaged Fryer System with Solstice™ Filter Drawer System, High Power, gas, (5) 50 lb. oil capacity full tanks, millivolt control, stainless steel tank, front & sides, under-fryer drawer filtration, total 610,000 BTU (-FFFFF), NSF, CE, CSA Flame, CSA Star, AuGA (contact factory for price)

*Image may not depict product color, inclusions or accessories.

Pitco SG14RS-5FD Specifications

Spec Attribute	Spec Value
Manufacturer	Pitco
BTU per Fryer	122000
Capacity (lbs)	250
Frypot Style	Tube Type
Gas Type	LP
Heat	Gas
Number of Fry Pots	5
Oil Capacity (lb)	250
Oil Capacity/Fryer (lb)	50
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Better
Series	Solstice™
Type	Floor Model
Warranty	1-year Limited Parts & Labor
Weight	1195.00
