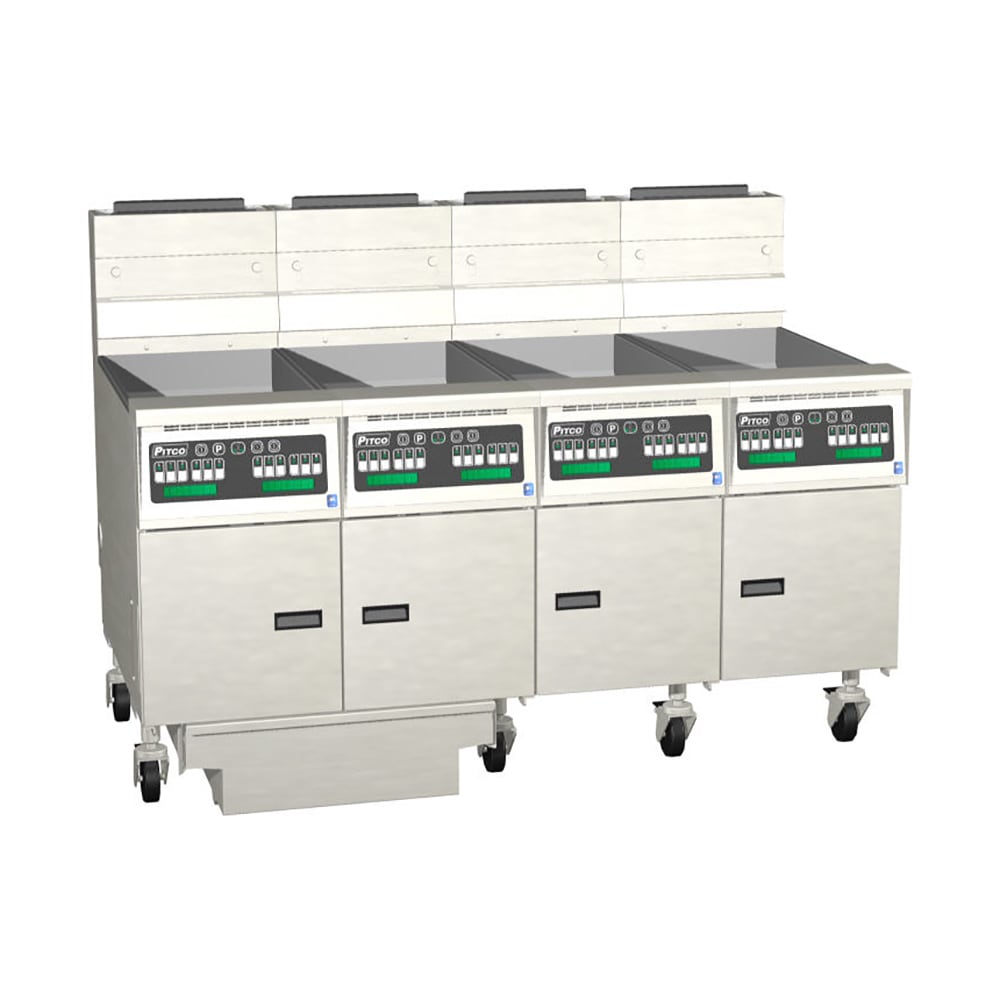

Pitco SG14RS-4FD Gas Fryer - (4) 50 lb Vats, Floor Model, LP

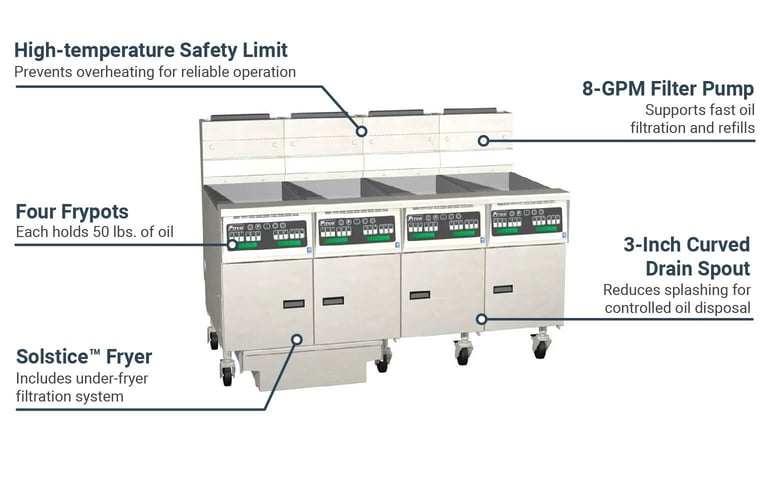

The under-fryer filtration drawer system in the Pitco SG14RS-4FD gas fryer supports two-step oil filtration, helping maintain frying efficiency and extending oil life. Designed for LP gas operation, this floor model fryer is part of the Solstice™ series and includes four full-size frypots, each with a 50-pound oil capacity, totaling 200 pounds. The stainless steel tank, front, and sides provide durability in high-use environments, while the self-cleaning burner reduces carbon buildup to keep heating consistent. A tube rack captures food debris and directs crumbs into a cool zone to preserve oil quality. The millivolt thermostat system allows precise temperature control without requiring an electrical connection. An integrated flue deflector helps regulate heat distribution, ensuring safe and efficient kitchen operation.

The extra-large 3-inch curved drain spout on the Pitco SG14RS-4FD fryer minimizes splashing and swivels for controlled oil disposal, helping to streamline cleanup. A 1 ¹/₄-inch full-port drain valve enables rapid oil removal, while the rear oil return system clears debris from the frypot bottom before oil is recirculated. The fryer includes a high-temperature safety limit switch that prevents overheating and ensures safe operation. Separate manual gas shutoffs positioned at the front for quick maintenance, and the fryer stands on 10-inch adjustable legs for added stability and clearance during cleaning. The heavy-duty ³/₁₆-inch bottom door hinge reinforces the unit’s structure, supporting long-term durability. The stainless steel filter pan includes rear wheels for easy mobility, while a removable basket hanger allows for tool-free maintenance.

Product Details

• Solstice series
• 4 full-size frypots
• 50-lb. oil capacity per frypot
• Holds 200 lbs. of oil
• Tank, front, and sides constructed of stainless steel
• Millivolt thermostat control
• Self-cleaning burner
• Downdraft protection
• High-temperature safety limit switch
• 1 ¹/₄-in. full-port drain valve
• Manual gas shutoffs for servicing
• Integrated flue deflector
• Under-fryer filtration drawer system
• Two-step filtration system
• Heavy-duty ³/₁₆-in. bottom door hinge
• Adjustable 10-in. legs
• Tube rack for directing debris into the cool zone
• Removable basket hanger
• 3-in. curved drain spout for controlled oil disposal
• 8-GPM filter pump
• Self-aligning filter connection
• Filter pan with rear wheels
• Self-storing filter pan lid

Dimensions & Utilities

• 14-in. x 14-in. frying area per frypot
• 3 ¹/₄-in. to 5-in. cook depth
• 488,000 total BTU (122,000 BTU per frypot)
• Powered by liquid propane

Product Features

*Free shipping on Pitco SG14RS-4FD within the 48 contiguous states.

From The Manufacturer

Solstice™ Prepackaged Fryer System with Solstice™ Filter Drawer System, High Power, gas, (4) 50 lb. oil capacity full tanks, millivolt control, stainless steel tank, front & sides, under-fryer drawer filtration, total 488,000 BTU (-FFFF), NSF, CE, CSA Flame, CSA Star, AuGA

*Image may not depict product color, inclusions or accessories.

Pitco SG14RS-4FD Specifications

Spec Attribute	Spec Value
Manufacturer	Pitco
BTU per Fryer	122000
Capacity (lbs)	200
Frypot Style	Tube Type
Gas Type	LP
Heat	Gas
Number of Fry Pots	4
Oil Capacity (lb)	200
Oil Capacity/Fryer (lb)	50
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Better
Series	Solstice™
Type	Floor Model
Warranty	1-year Limited Parts & Labor
Weight	980.00
