Pitco SE14X-4FD Electric Fryer - (4) 50 lb Vats, Floor Model, 220v/1ph
$48,594.00 /Each
Web price, call us!
Selected Voltage: 220V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 220V, 1 Phase |
| 220V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Looking for ENERGY STAR® Commercial Electric Fryers?
See our selection of Pitco ENERGY STAR® Commercial Electric Fryers below

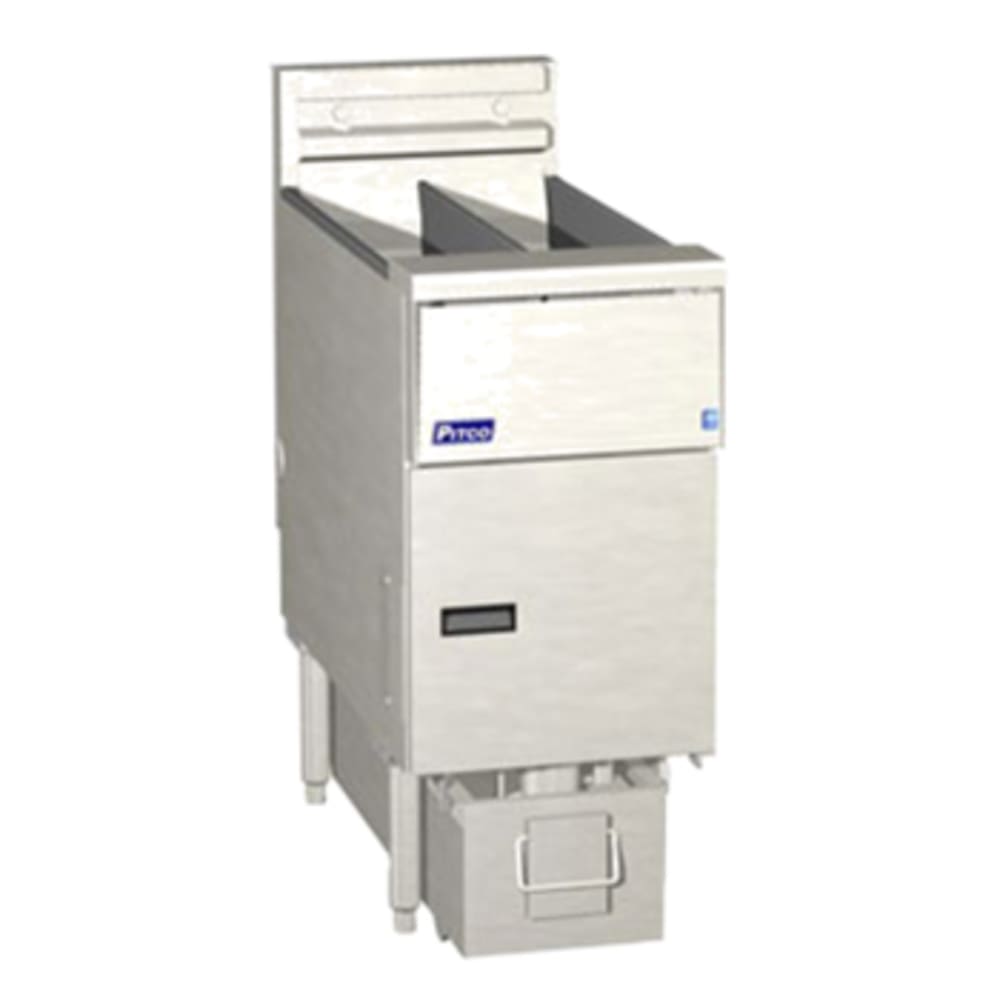

Pitco SE14X-4FD Description
The Pitco SE14X-4FD electric fryer is designed for high-volume frying applications with its four-vat configuration, enabling operators to cook different products simultaneously. Each vat holds 50 pounds of oil and measures 14 inches by 14 inches by 4 inches, providing ample frying space. To enhance durability, its cabinet is constructed of stainless steel, while a solid maintenance door encloses the components. Its solid-state controls ensure precise operation, while the built-in melt cycle and boil-out mode streamline maintenance and cleaning.
For enhanced safety, the Pitco SE14X-4FD floor fryer features a high-temperature safety limit switch and non-mercury heating contactors to prevent overheating. Each vat is equipped with fixed immersion-type heating elements sheathed in a high-temperature alloy for even heating. The unit also features a drain valve interlock, a removable basket hanger, and a 11/4-inch full port drain for oil removal. To facilitate routine upkeep, it includes a cleaning brush and a sample cleaner packet. Additionally, the integrated Solstice™ filter-drawer system supports efficient oil filtration.

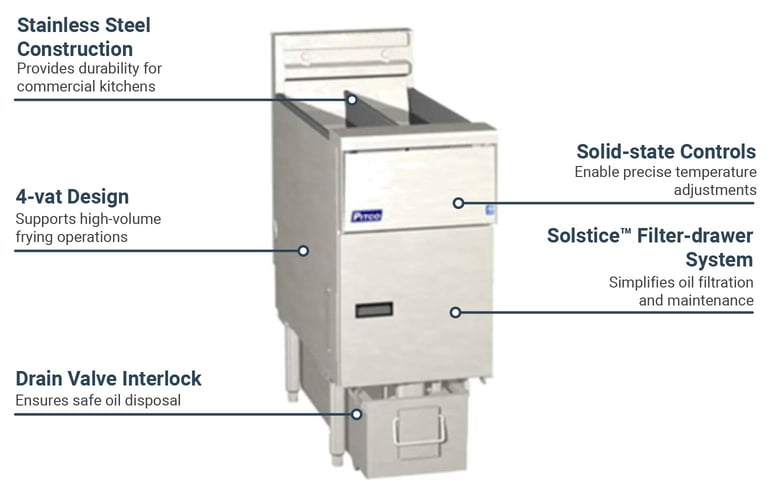

Product Details
- Freestanding, 4-vat design
- 50-lb. oil capacity per vat
- Stainless steel construction
- Solid maintenance door
- Fixed immersion-type heating elements with high-temp alloy sheath
- Removable basket hanger
- Solid-state controls
- Melt cycle and boil-out mode
- High-temperature safety limit switch
- Non-mercury heating contactors
- Drain valve interlock
- 11/4-in. full port drain
- Cleaning brush and sample cleaner packet included
- Solstice™ filter-drawer system
Dimensions & Utilities
- Vat: (4) 14 in. x 14 in. x 4 in
- Overall: 621⁄2 in. W x 391/4 in. D x 393⁄4 in. H
- 64.7 A (per vat), 56 kW
- 220 V/60 Hz/1 ph
Product Features
*Free shipping on Pitco SE14X-4FD within the 48 contiguous states.
From The Manufacturer
Solstice™ Prepackaged Fryer System with Solstice™ Filter Drawer System, electric, (4) 50 lb. oil capacity full tanks, solid state controls, boil out & melt cycle, drain valve interlock, stainless steel tank, front & sides, under-fryer drawer filtration, total 56.0kW (-FFFF), 220v/1ph, cULus, NSF, CE, GS
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Pitco SE14X-4FD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Pitco |
| Capacity (lbs) | 200 |
| Heat | Electric |
| Hertz | 60 |
| kW | 56 |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Phase | 1 |
| Product | Electric Fryers |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Solstice™ |
| Type | Floor Model |
| Voltage | 220 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 980.00 |
