Pitco SE14RS-1FD Electric Fryer - (1) 50 lb Vat, Floor Model, 208v/3ph

The Pitco SE14RS-1FD Solstice™ electric fryer works best for commercial kitchens with limited space. This fryer is a two-in-one product that fries foods and filters oil with its fryer tank and a two-step filter. Filtering oil keeps oil clean to ensure foods maintain a good taste while maximizing oil life and reducing food waste. By implementing fixed, ENERGY STAR®-rated heating elements, the fryer can accommodate 40 to 50 pounds of oil. Its stainless steel tank works with a filter pump for fast refills, and a self-aligning filter connection drains oil effortlessly. The filter pan includes rear wheels for smooth movement and a curved drain spout minimizes splashing when oil is disposed. Users can set the temperature and other filter cycles with the solid-state T-Stat, which includes a melt cycle and boil-out mode. However, if the unit gets too hot, a high-temperature safety limit switch automatically turns off the fryer to keep the kitchen safe.

Accessories are included with the Pitco SE14RS-1FD Solstice electric fryer for best use. When draining oil, users can quickly remove oil from the tank with the 1¹⁄₄-inch full-port drain valve. Also, a drain line clean-out rod can help move obstructions in the drain when clogged. When the valve is in use, the drain valve interlock switches on, turning off the unit so oil temperature doesn't continue to rise. A removable basket hanger, fryer cleaning brush, and fryer cleaner sample packet are included to expedite maintenance. Operators also have options for baskets: They can choose two twin baskets or one full basket depending on their most common needs.

Product Details

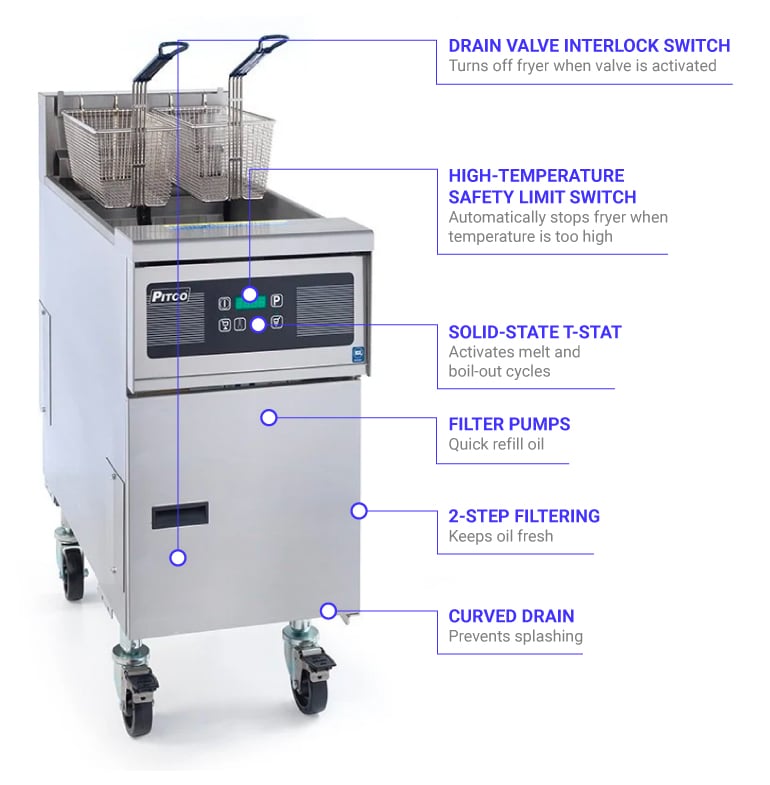

• Fries food and filters oil
• Oil capacity: 40-50 lbs.
• 2-step filtering with self-aligning filter connection
• Stainless steel construction for tank and cabinet
• Fixed heating elements with mercury-free contactors
• Solid-state T-Stat for melt cycle and boil-out mode
• Drain valve interlock switch when valve is on
• High-temperature safety limit switch
• Quick-refill filter pump
• 1¹⁄₄-in. full-port drain valve
• 3-in.-wide curved drain spout prevents splashing
• Choice of 2 twin baskets or 1 full basket
• (4) 10-in.-tall adjustable legs
• Fryer cleaning brush and cleaner sample packet included
• Power cord available for separate purchase

Product Features

Dimensions & Utilities

• 14 in. L x 14 in. W x 4 in. D
• 3.8 A, 48 kW
• 208 V/60 Hz/3 ph

*Free shipping on Pitco SE14RS-1FD within the 48 contiguous states.

From The Manufacturer

Solstice™ Prepackaged Fryer System with Solstice™ Solo Filter System, High Power, electric, (1) 40-50 lb. oil capacity full tank, solid state controls, boil out, drain valve interlock, melt cycle, stainless steel tank, front & sides, under-fryer drawer filtration, 22.0kW (-F), 208v/3ph, cULus, NSF, CE, GS

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Pitco SE14RS-1FD Specifications

A well-known name in commercial fryers, Pitco has developed fryer innovations since 1918, from heating tubes in the middle of the fryer that prevent food scraps from burning to solid state burner controls for consistent temperatures.
