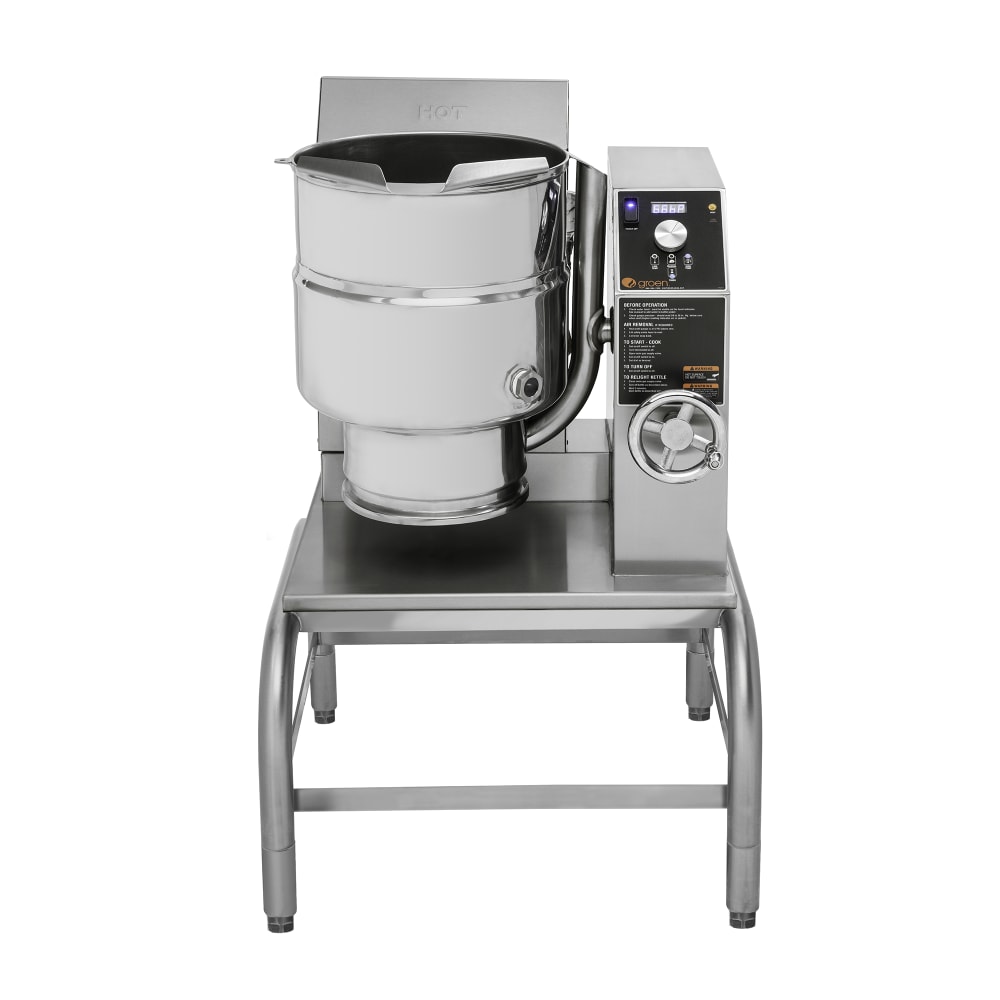

Groen TDH-48C 12 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, Natural Gas

With a 48-quart (12-gallon) capacity, the Groen TDHC-48C tilting steam kettle is designed for batch cooking. Unlike stockpot ranges, this unit provides even heat distribution to all the product and does not require much cooking experience. Self-contained steam is generated by heated water and flows into the jacket, which surrounds the lower two-thirds of the body. The temperature is regulated by the control knob, featuring 10 levels that operate within a range from 150 to 295 degrees Fahrenheit. A thermostat regulates heat, turning the burners on and off based on the temperature in the kettle and the set level.

Users can empty cooked food into a 4-inch-deep pan placed under the tilted kettle body, and a pouring lip directs the contents into it without creating messes on the countertop. The tilt motion is controlled by a hand lever, which can be mounted on the right or left side. The kettle is constructed of stainless steel, with a welded, one-piece construction, so it resists rusting and provides durability for high-volume use. A mounting bracket, included with this Groen TDHC-48C tilting steam kettle, supports an additional faucet to provide a constant supply of water for recipes and cleaning.

Product Details

• 48-qt. (12-gal.) capacity
• Self-contained steam source does not require an external boiler or generator
• Jacketed around the bottom two-thirds of the kettle
• Water in the unit is heated, generating steam that fills the jacket
• Manual tilt lever on the left or right
• 4-in.-deep pans fit under the tilted kettle rim
• Butterfly-shaped pour lip in the rim directs food into the pan
• Rim is reinforced to prevent denting that alters the steam pressure
• Welded, 1-piece, 304 stainless steel resists scratches and corrosion
• Tabletop model
• Rear-mount faucet bracket
• Maximum 50 PSI steam pressure
• 52,000 BTU

Classic Control System

• 10-level temperature control knob
• Approximate temperature range: 150-295 degrees F
• Temperature is regulated by a thermostat that automatically turns heat on and off to maintain the set level
• On/off power switch
• Power indicator light
• Heat indicator light
• Low-water indicator light
• Enclosed in a water-resistant housing on the right

Safety Features

• Safety tilt cut-off function prevents heating when body is tilted more than 12 degrees
• Gas supply shuts off if the body is tilted at all
• Low-water cut-off function shuts off the gas supply to the burners when water is too low
• High-limit pressure switch shuts the burners off if the pressure reaches 43 PSI and keeps them off until the pressure decreases
• Pressure relief valve lets out steam if the jacket pressure exceeds 50 PSI

Dimensions & Utilities

• 28 in. W x 32 in. D x 36¹/₈ in. H
• Uses natural gas

*Free shipping on Groen TDH-48C within the 48 contiguous states.

From The Manufacturer

Kettle, gas, table top, 48 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, hand tilt, support console on right, stainless steel construction, 50 PSI, 0 - 2000' elevation, 52,000 BTU, cCSAus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School

Groen TDH-48C Specifications

Documents

Spec Sheet

Warranty

Manual
