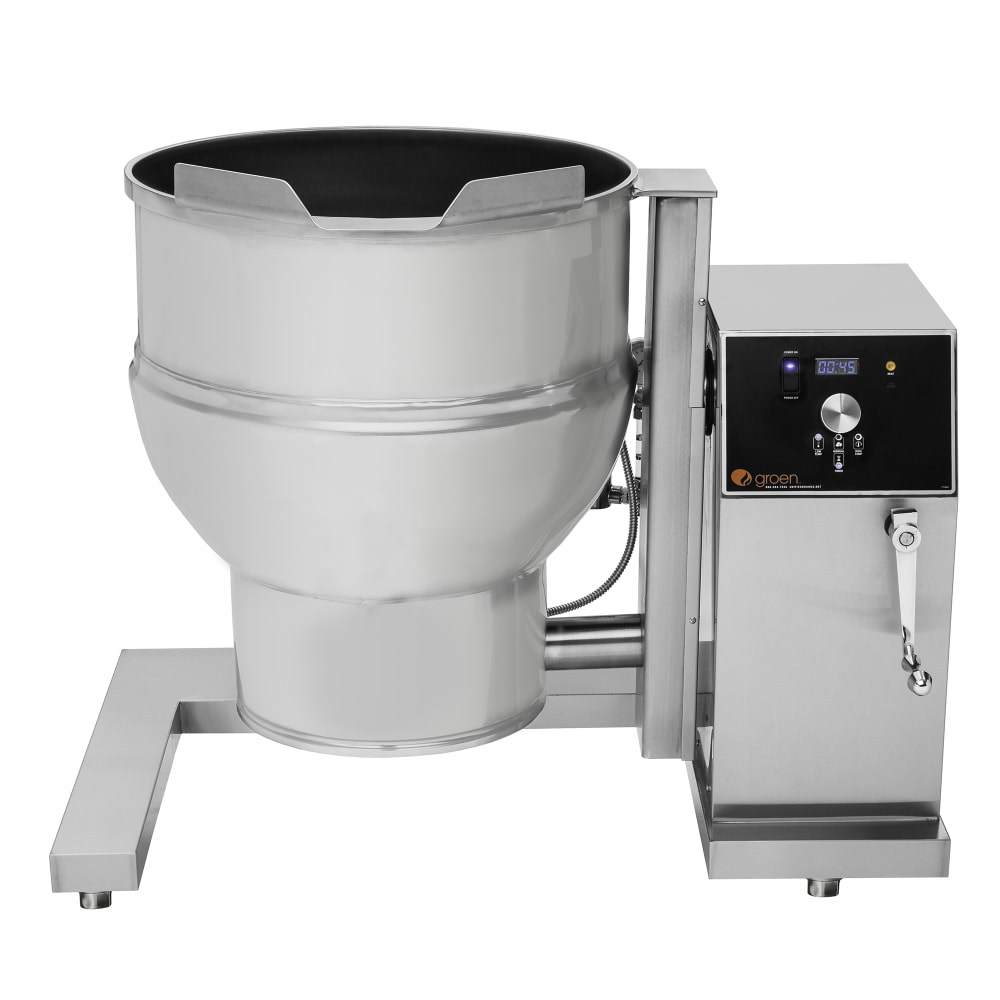

Groen DEE/4T-40CTA/3 40 gal Steam Kettle - Manual Tilt, 2/3 Jacket, 208v/1ph

The Groen DEE/4T-40CTA/3 kettle/cooker mixer is designed for high-efficiency commercial food preparation, featuring a 40-gallon capacity and a ²/₃ jacketed heating system. This electric floor model is equipped with a twin shaft scraper mixer that ensures thorough blending. Its 316 stainless steel liner enhances durability and sanitation, while the 304 stainless steel exterior facilitates easy maintenance. The unit includes a 2-inch tangent draw-off valve (TDO) for smooth dispensing and a tilt-type mechanism for effortless product transfer. Mounted on a floor-standing stainless steel control console with adjustable flanged feet, this versatile kettle mixer is built to withstand rigorous kitchen environments.

Product Details

• Electric floor model tilting kettle/cooker mixer
• 40-gal. capacity with ²/₃ jacketed heating system
• 316 stainless steel liner with a 304 stainless steel exterior
• Console-mounted tilt-out twin shaft scraper mixer for efficient blending
• Anchor-type main agitator with removable nylon finger scrapers
• Counter-rotating secondary bar agitator for thorough mixing
• Bayonet connections for quick agitator removal
• 2-in. tangent draw-off valve (TDO) for smooth liquid transfer
• Self-locking worm and gear tilt mechanism for precise tilting
• Adjustable flanged feet for added stability
• Self-contained electrically heated steam source
• Temperature range: 150 to 295 degrees F
• Power ON-OFF switch with indicator light
• Temperature control knob with precise settings
• Heating indicator light and low water warning light
• Variable speed agitator with on/off control
• Safety features: pressure relief valve, high-limit pressure switch, low water cut-off, and agitator safety tilt cut-off
• Weight: 840 lbs.
• 1-year limited parts and labor warranty (2,000 operating hours)
• 10-year hemisphere warranty
• 2-year parts and labor warranty for K-12 school use (4,000 operating hours)
• 208 V/60 Hz/3 ph electrical service

*Free shipping on Groen DEE/4T-40CTA/3 within the 48 contiguous states.

From The Manufacturer

Kettle/Cooker Mixer, electric, 40-gallon capacity, 2/3 jacket, IPX6 water washdown rated electronic Classic controls, 316 stainless steel liner, 2" TDO, tilt-type, with console mounted tilt out twin shaft scraper mixer, floor mounted control console, stainless steel construction, 50 PSI, NSF, UL, Made in USA

*Image may not depict product color, inclusions or accessories.

Groen DEE/4T-40CTA/3 Specifications

Spec Attribute	Spec Value
Manufacturer	Groen
Base	Console
Capacity (gallons)	40
Design	2/3 Jacket
Heat	Electric
Hertz	60
No. of Kettles	1
Phase	1
Tilt Mechanism	Lever
Voltage	208
Base	Console
Type	Floor Model
Hertz	60
Phase	1
Voltage	208
Type	Floor Model
Weight	840.00
