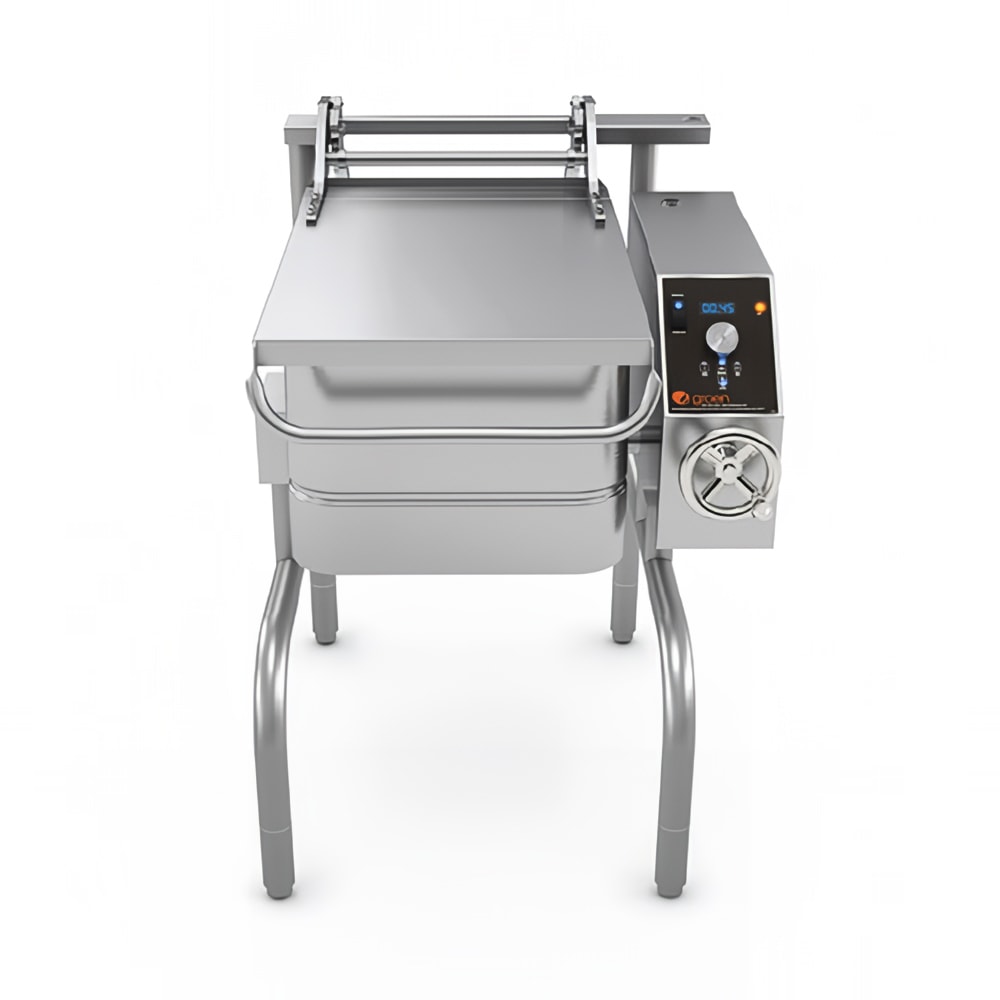

Groen BPM-15EC 15 gal. Tilt Skillet - Open Leg Base, Polished Pan, Measurement Marks, 208v/3ph

The Groen BPM-15E Eclipse™ tilting braising pan has a body constructed of one-piece stainless steel with an 8-inch depth and 35-inch height and has graduated fill marks in gallons and liters for accurate product measurements. Its cooking surface is composed of a ⁵⁄₈-inch-thick stainless steel clad plate while flat bar heating elements provide an effective heat transfer across the cooking surface. Tubular legs equipped with bullet feet help keep the unit level.

The Groen BPM-15E tilting braising pan has a 15-gallon capacity for braising, boiling, or simmering large batches of food. For precise control during pouring, its body tilts using a manual crank and worm-and-gear tilt mechanism. It tilts to a vertical position in 24 turns and will tilt past vertical to assist with cleaning. A standard faucet bracket can be installed in three possible locations, and for reduced damage, water-resistant, front-mounted controls are located on the right side.

Product Details

• 15-gal. capacity
• 1-piece stainless steel body has an 8-in. pan depth and 35-in. pan height
• Graduated fill marks in gallons and liters
• ⁵⁄₈-in.-thick, stainless steel clad plate for cooking surface
• Cooking surface features flat bar electric heating elements for effective heat transfer
• Faucet mounting bracket for right, left, or rear faucet installation
• Front-mounted, water-resistant controls on the right side
• Power on/off switch and indicator light
• Temperature control knob for setting temperature
• High-limit thermostat monitors temperature
• Temperature range: 175-400 degrees F
• Thermostatically controlled for automatic shut off or power on based on temperature
• Tubular legs have bullet feet for leveling
• Part of the Eclipse series

Manual Tilt

• Body has manual crank and worm-and-gear tilt mechanism for exact pouring control
• In 24 turns, body tilts to vertical position
• Past-vertical tilting assists with cleaning
• Controls enable operation at a 7-degree angle for griddling

Dimensions & Utilities

• 37¹/₄ in. W x 39³/₄ in. D x 41¹/₂ in. H
• 22 A, 7.7 kW
• 208 V/60 Hz/3 ph

*Free shipping on Groen BPM-15EC within the 48 contiguous states.

From The Manufacturer

Braising Pan, electric, 15-gallon capacity, 8" deep pan, 35" pan height, IPX6 water rated electronic Classic controls, manual tilt, standard etch marks, faucet bracket, round tubular open leg base, stainless steel construction, bullet feet, cUL, UL, NSF, Made in USA, 208v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Pan; 2-year Parts & Labor/4000 Operating Hours for K-12 School

Groen BPM-15EC Specifications

Documents

Spec Sheet

Warranty

Manual
