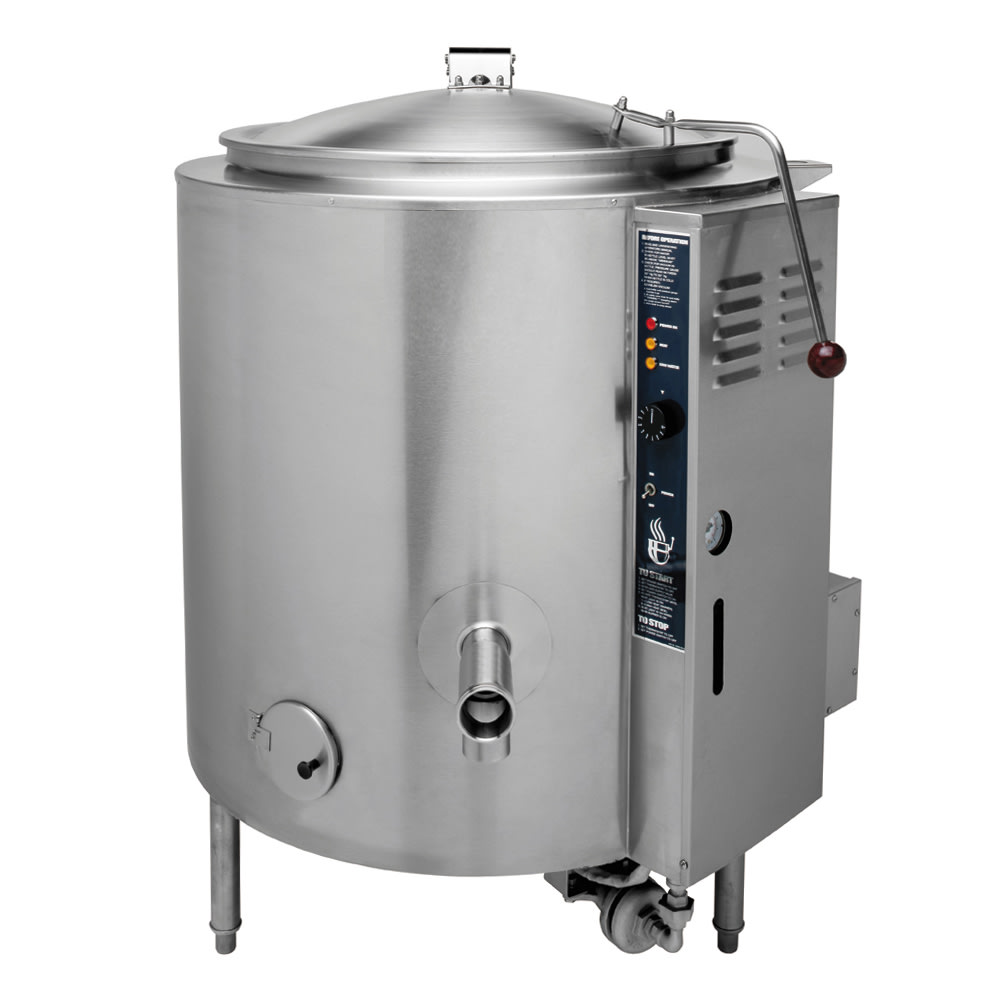

Groen AH/1E-20 20 gal Steam Kettle - Stationary, 2/3 Jacket, Natural Gas

The Groen AH/1E-20 steam-jacketed kettle is made of insulated stainless steel for simplified cleaning and rust resistance. It has a 20-gallon capacity, ideal for large batch cooking, and has a self-contained, gas-heated steam source that provides temperatures between 150 and 270 degrees Fahrenheit. Its standing pilot has an electronic ignition to produce a flame quickly, and the unit is thermostatically controlled, meaning it will turn off when the proper temperature is reached and turn on when the temperature drops.

The Groen AH/1E-20 stationary floor kettle has an insulated construction, so it stays cool to the touch for user safety while the one-piece dome cover is hinged to aid opening and closing. It has a jacket around the bottom ²⁄₃ of the unit, where steam provides efficient heat transfer, and adjustable legs ensure the unit remains level.

Product Details

• 20-gal. capacity
• Insulated stainless steel construction
• Self-contained, gas-heated steam source
• Temperature range: 150-270 degrees F
• ²⁄₃ jacketed
• 3 adjustable legs stabilize the unit
• 1-piece, hinged dome cover eases opening and closing
• Operating controls are front mounted
• Regulating thermostat controls temperature by turning unit off and on as temperature fluctuates
• Quick electronic ignition for standing pilot
• 2-in. draw-off valve for draining liquids
• Valve sends liquids through a removable, ¹⁄₄-in. perforated strainer
• Maximum working pressure: 30 PSI
• 85,000 BTU
• Factory filled with water and rust inhibitor for a long life

Dimensions & Utilities

• 39¹⁄₂ in. W x 50³⁄₄ in. D x 40 in. H (H measured to rim)
• Uses natural gas

*Free shipping on Groen AH/1E-20 within the 48 contiguous states.

From The Manufacturer

Kettle, gas, 20-gallon capacity, 2/3 jacket, 316 stainless steel liner, stainless steel insulated body, 2" TDO, 1/4" perforated strainer, hinged dome cover, faucet bracket, bullet feet, 30 PSI, 85,000 BTU, CSA Star, CSA Flame, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School
