Summit SCR504SSTBADA 19 3/4" W Undercounter Refrigerator w/ (1) Section & (1) Door, 115v

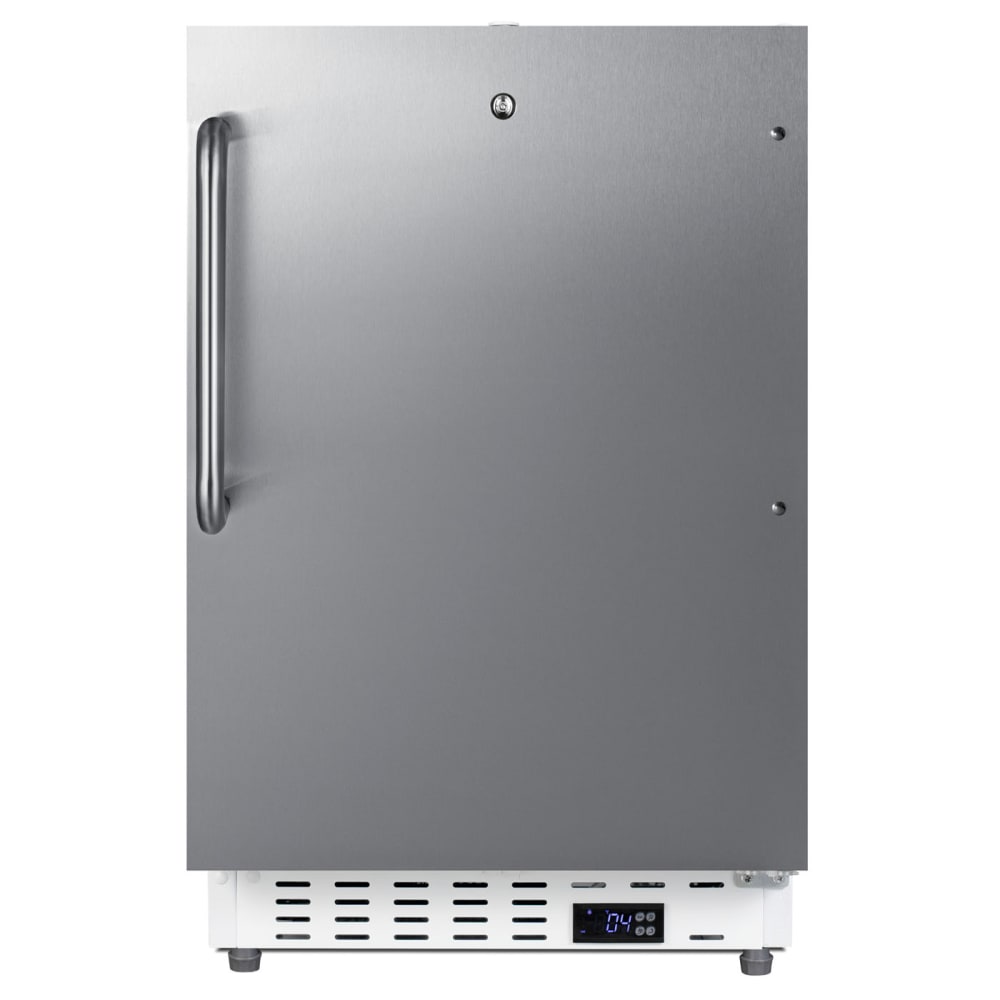

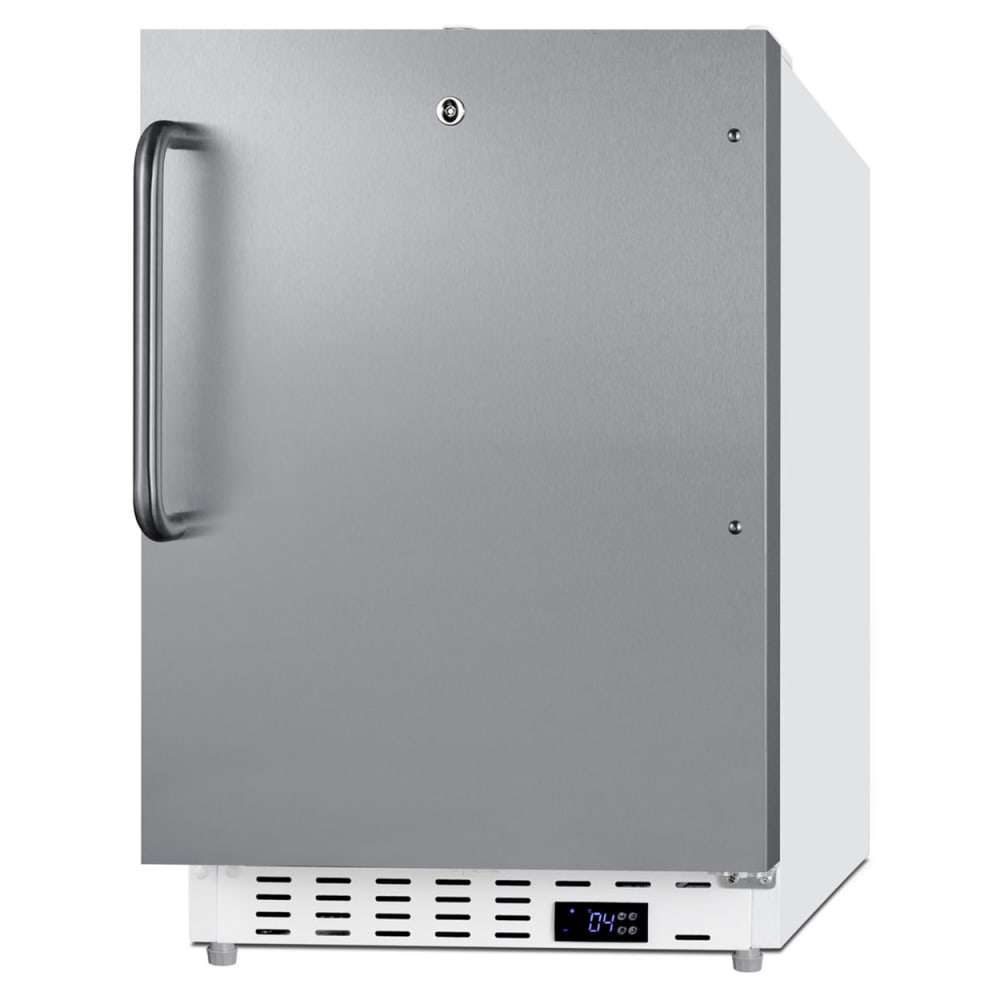

Because the Summit SCR504SSTBADA commercial all-refrigerator is front breathing and fully finished, it can be used as a built-in undercounter unit or freestanding piece of equipment in 21-inch-wide spaces. To meet ADA requirements, it measures 19¹⁄₄ inches wide by 25 inches deep by 32 inches high. Its rust- and corrosion-resistant stainless steel door provides lasting durability as well as a professional appearance that complements other back-of-house equipment. To reduce energy consumption in warm settings, this 3-inch-thick door is insulated. Its curved, stainless steel handle adds a sleek accent and ensures a secure grip, while the keyed lock includes two corresponding keys that enhance security. Although the door comes right hinged, it can be reversed in the field to accommodate various kitchen setups.

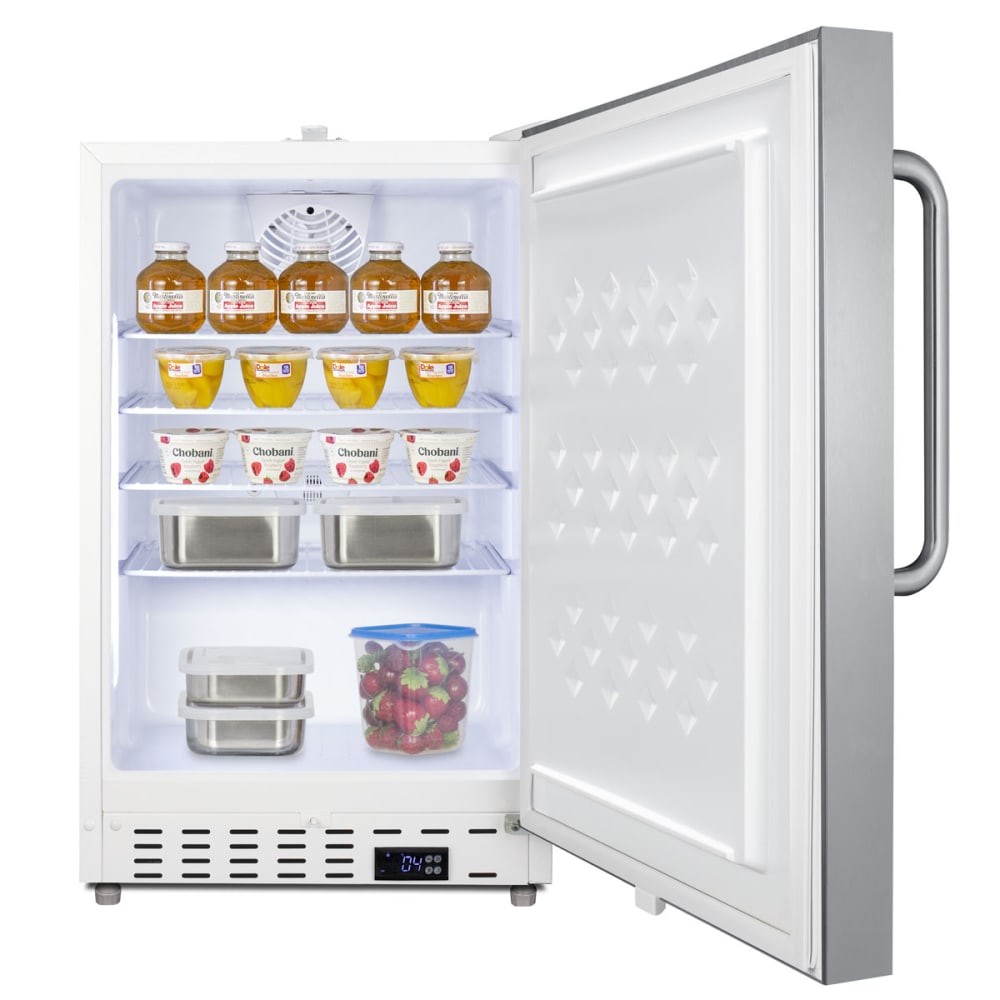

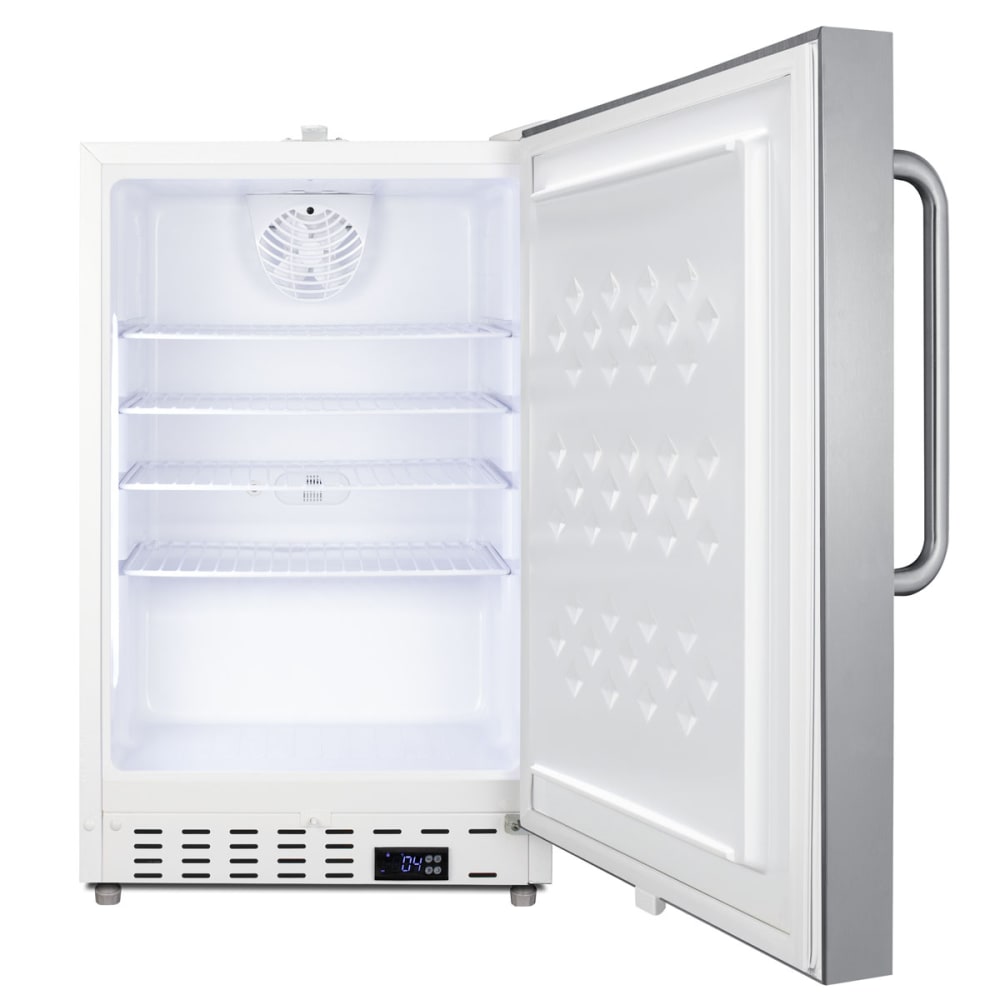

For vegetables, fruits, prepared ingredients, or meats, the Summit SCR504SSTBADA undercounter freezer uses R600a hydrocarbon refrigerant to maintain temperatures from 35.6 to 46.4 degrees Fahrenheit. Staff can adjust interior temperature with the electronic digital thermostat located in the front kickplate, and to ensure the unit is operating at safe temperatures, operators can set high- and low-temperature alarms. To further preserve an appropriate storage environment, this unit is equipped with an automatic defrost system and an audible open-door alarm. The white cabinet interior measures 16¹⁄₄ inches wide by 17 inches deep by 23¹⁄₂ inches high and provides 3.32 cubic feet of interior space. While its four wire shelves can be raised or lowered as inventory changes, the flat door liner can accommodate deep trays.

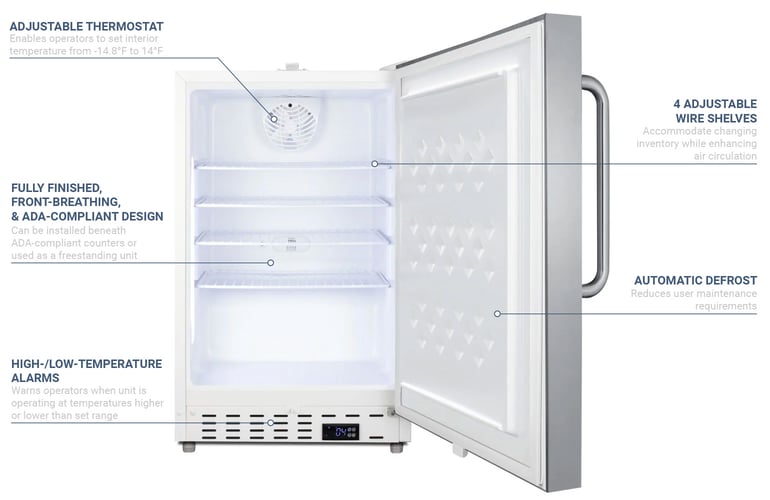

Product Details

• 3.32-cu.-ft. interior capacity
• Fully finished, front-breathing design
• Can be used as a built-in, ADA-compatible undercounter unit or freestanding unit
• Solid, insulated, and stainless steel right-hinged door (field reversible)

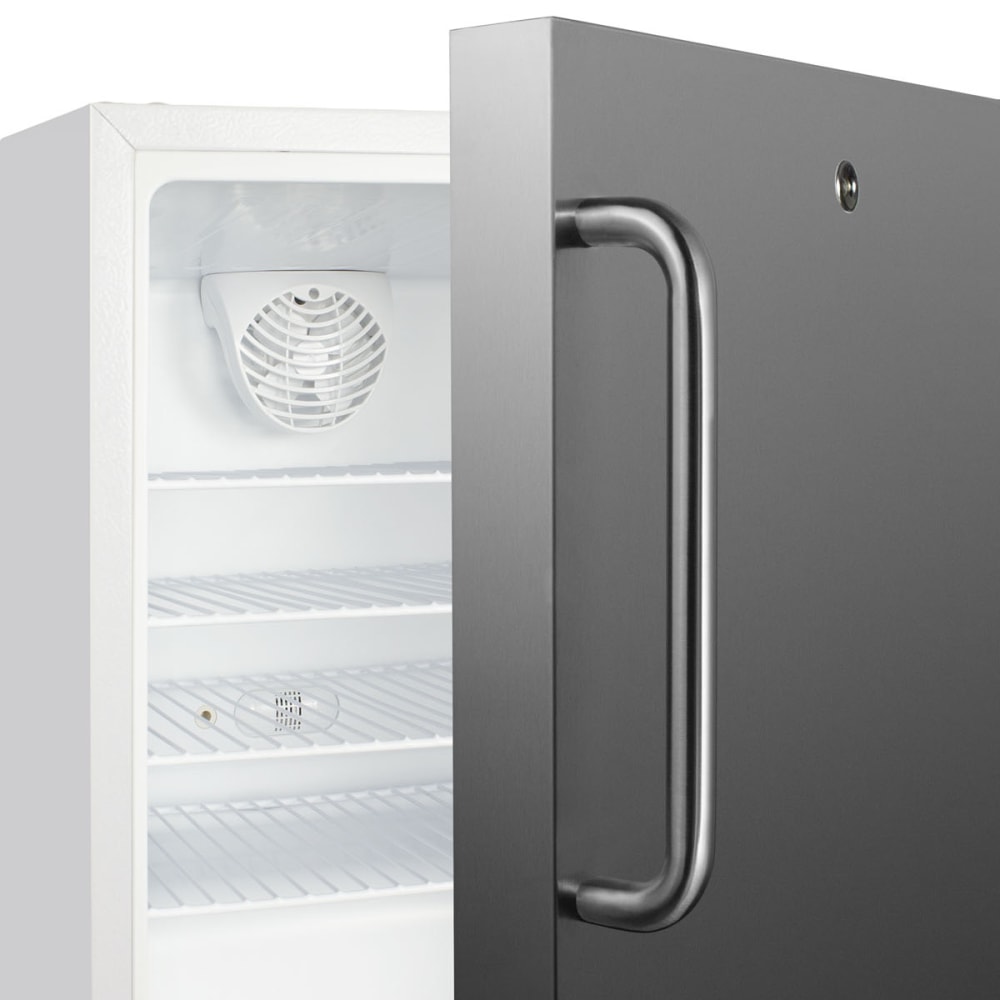

• Curved handle made of brushed stainless steel
• Keyed door lock includes 2 keys
• White interior
• Flat door liner
• 4 adjustable wire shelves
• R600a hydrocarbon refrigerant
• Fan-forced cooling
• Automatic defrost
• Adjustable operating range: 35.6-46.4 degrees F

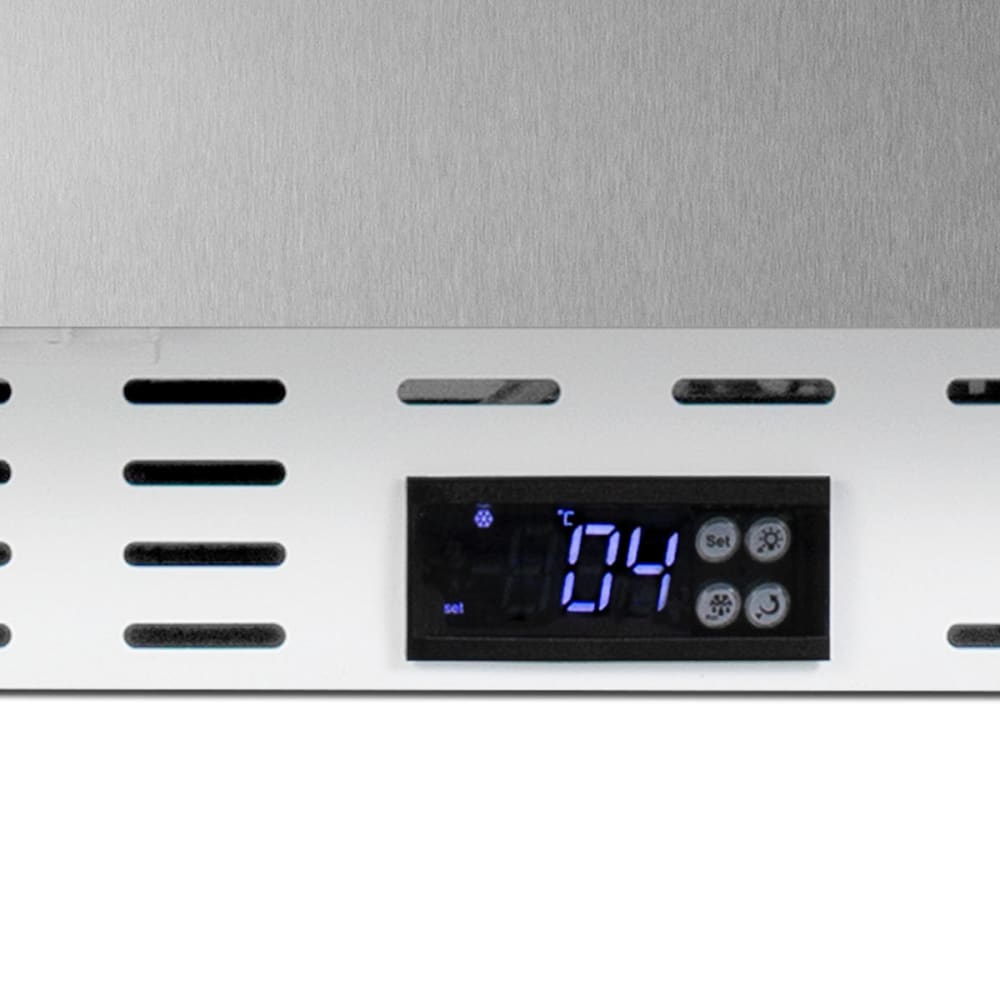

• Digital thermostat located in front kickplate
• User-set high-/low-temperature alarms
• Audible open-door alarm
• Factory-installed probe hole

Dimensions & Utilities

• Compressor step: 16¹⁄₄ in. W x 6 in. D x 6¹⁄₄ in. H
• Interior: 16¹⁄₄ in. W x 17 in. D x 23¹⁄₂ in. H
• Overall: 19¹⁄₄ in. W x 25 in. D (40¹⁄₄ in. D when door is opened 90 degrees) x 32 in. H
• 1.1 A
• 115 V/60 Hz/1 ph, includes hospital-grade cord with green-dot plug

Product Features

From The Manufacturer

Undercounter All-Refrigerator, upright design, built-in or freestanding, ADA compliant 32" height, 2 to 8°C operation, sealed back, 3" thick reversible door, stainless steel door with towel bar handle, factory-installed lock, magnetic door gasket, white cabinet exterior, (4) adjustable wire shelves, factory installed probe hole, hospital grade cord with 'green dot' plug, digital thermostat, automatic defrost, open door and high/low temperature alarms, R600a refrigerant, 115v/60/1-ph, cETLus, ETL-Sanitation (Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor Parts

Summit SCR504SSTBADA Specifications

Documents

Spec Sheet

Manual
