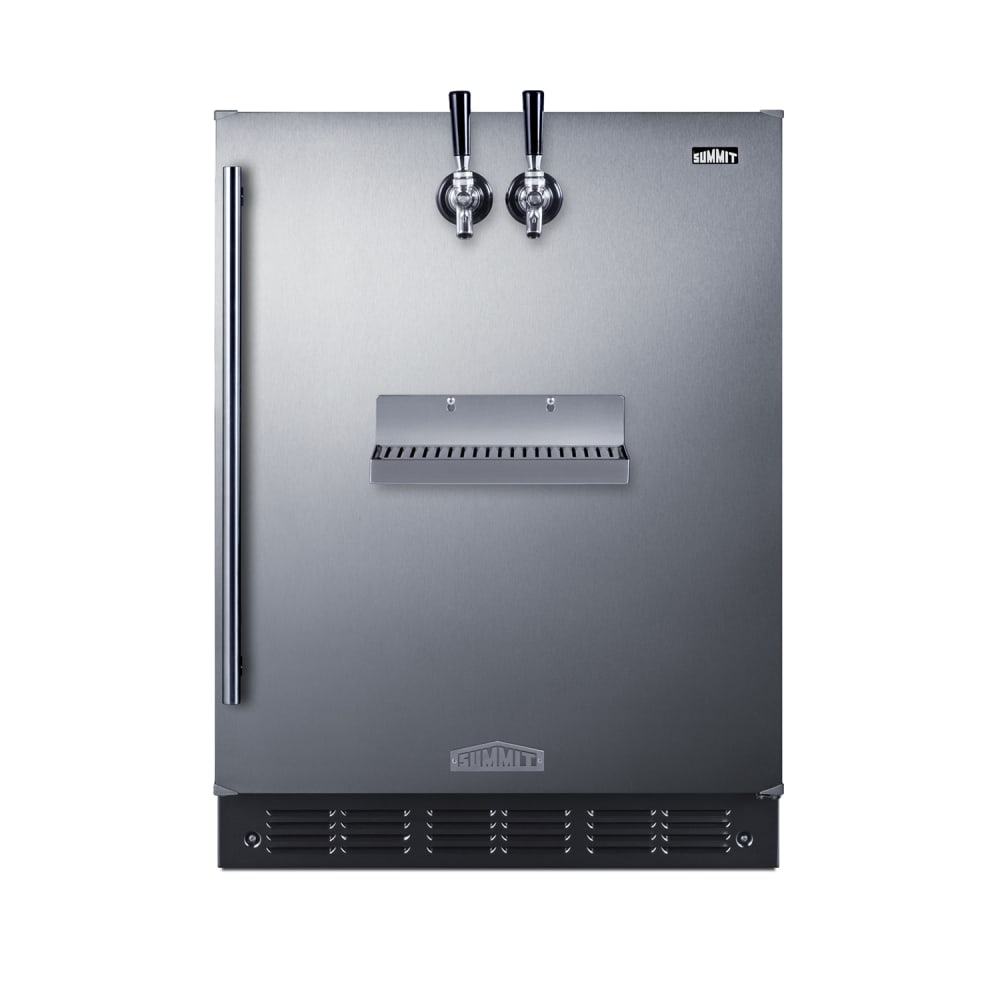

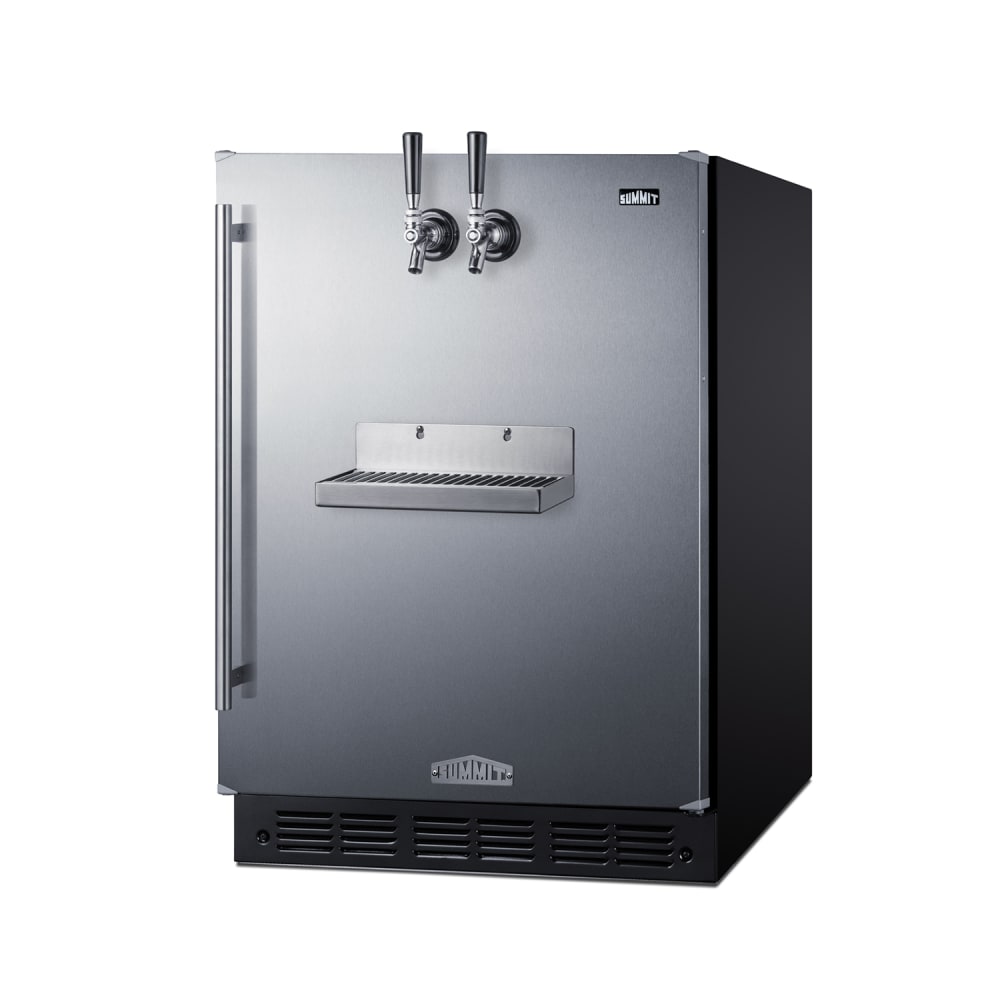

Summit SBC7BRSFRTPCFADA 24" Front Tap Cold Brew Dispenser w/ (2) Keg Capacity - Stainless, 115v

Built for accessibility and undercounter use, the Summit SBC7BRSFRTPCFADA cold brew dispenser stands at 32 inches to meet ADA height requirements. To eliminate the need for countertop alterations and to provide commitment-free convenience, this unit has a front tap design, with a twin draft tower mounted to the front of the cabinet. The interior spans 5.3 cubic feet and is capable of holding (2) 1/6 (sixtel) coffee kegs, providing staff with the ability to dispense two different brews.

The Summit SBC7BRSFRTPCFADA cold brew dispenser has a cold wall cooling system with a hidden evaporator and automatic defrost to maintain user-set temperatures. This dispenser utilizes R600a refrigerant to reach temperatures between 36 and 46 degrees Fahrenheit. To streamline operation, this unit is fitted with an interior rocker-switch light, a tank bracket holder, a front-mounted stainless steel drip tray, and a stainless steel interior floor cover that can withstand constant keg loading and unloading. With a fully-finished black cabinet, this unit is suited for undercounter placement or a freestanding setup.

Product Details

• From the SBC7 Series
• 5.3-cu.-ft. overall capacity

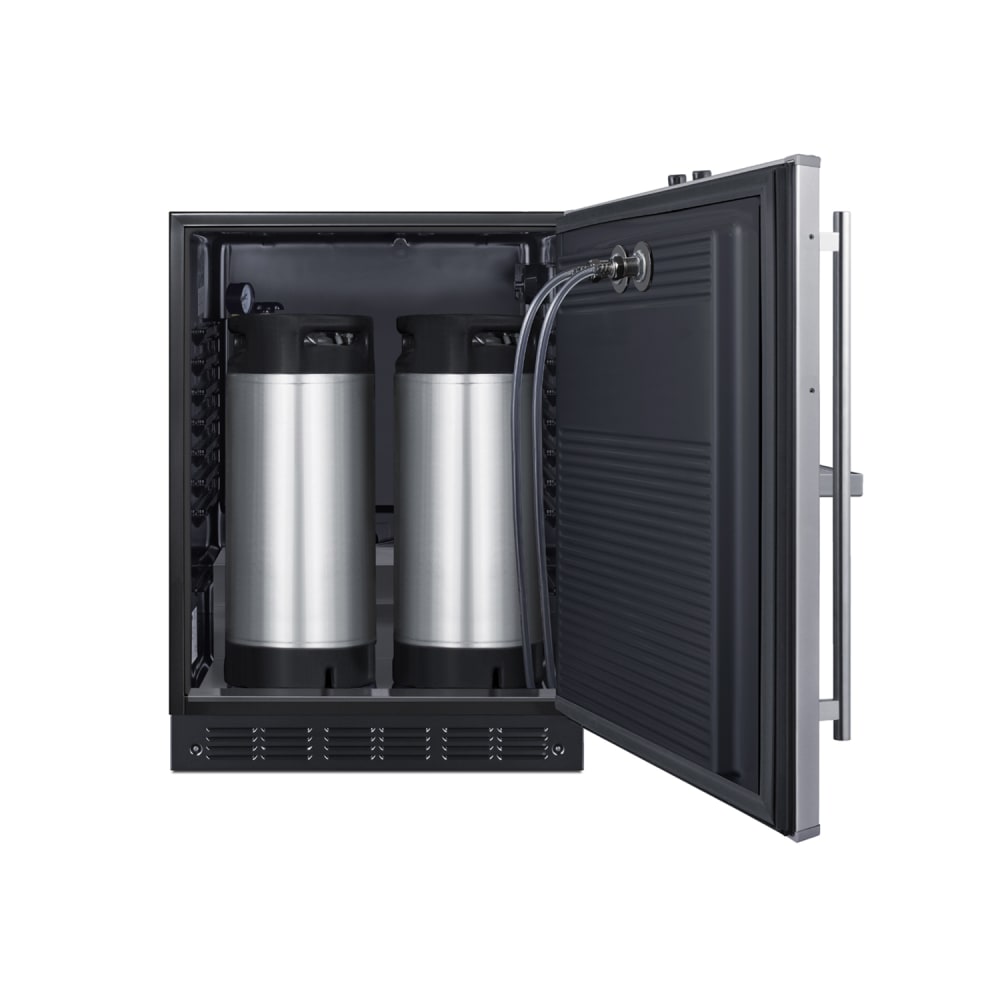

• Fits (2) 1/6 (sixtel) kegs

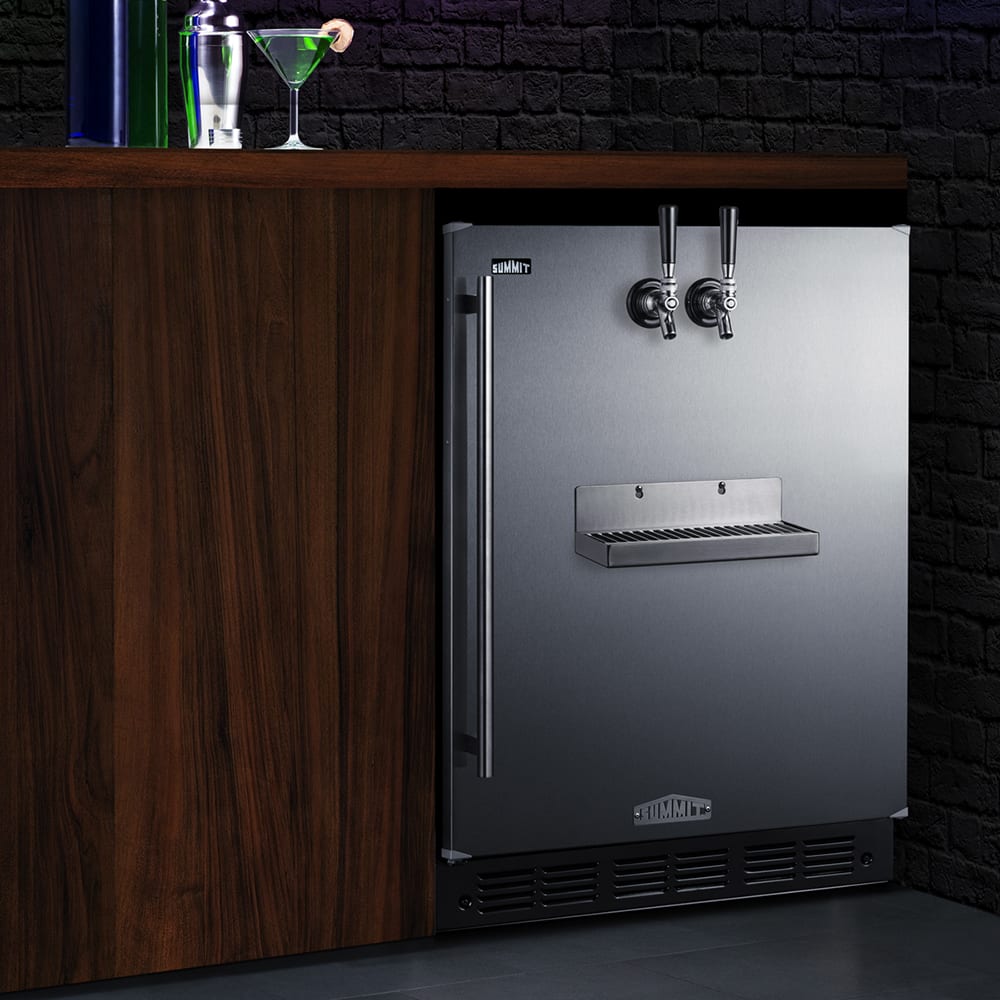

• Built-in or freestanding installation
• ADA-compliant height
• Fully-finished, black cabinet
• 1 factory-reversible right-hinged door
• Vertically mounted stainless steel handle
• 1 dual tap draft tower with removable coffee tap kit
• No countertop drilling required for installation
• Interior light with rocker switch
• Stainless steel floor shield, drip tray, and kickplate

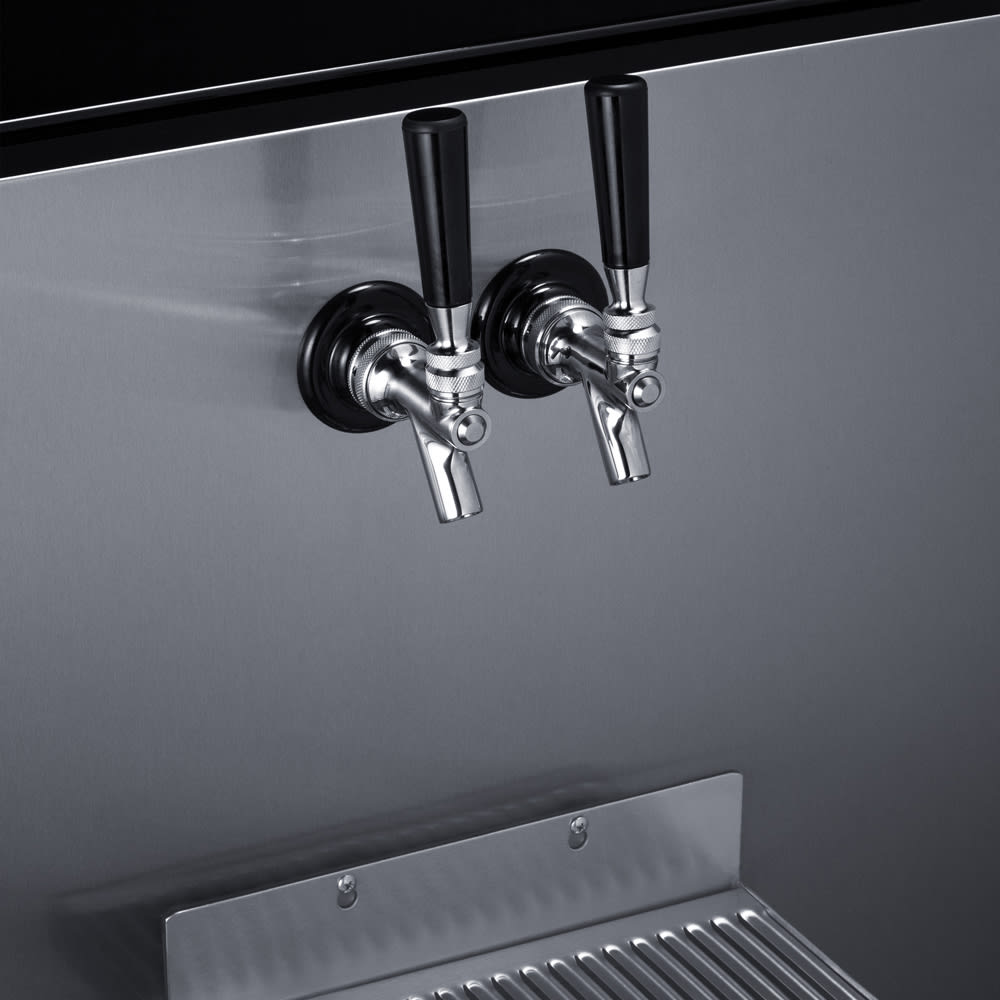

• Taps are located on the front of the door
• 4 adjustable legs and removable leg shield
• Coffee tap kit includes a 5-lb. CO2 tank, regulator, dual tap draft arm, Sankey American tap, and connection hardware

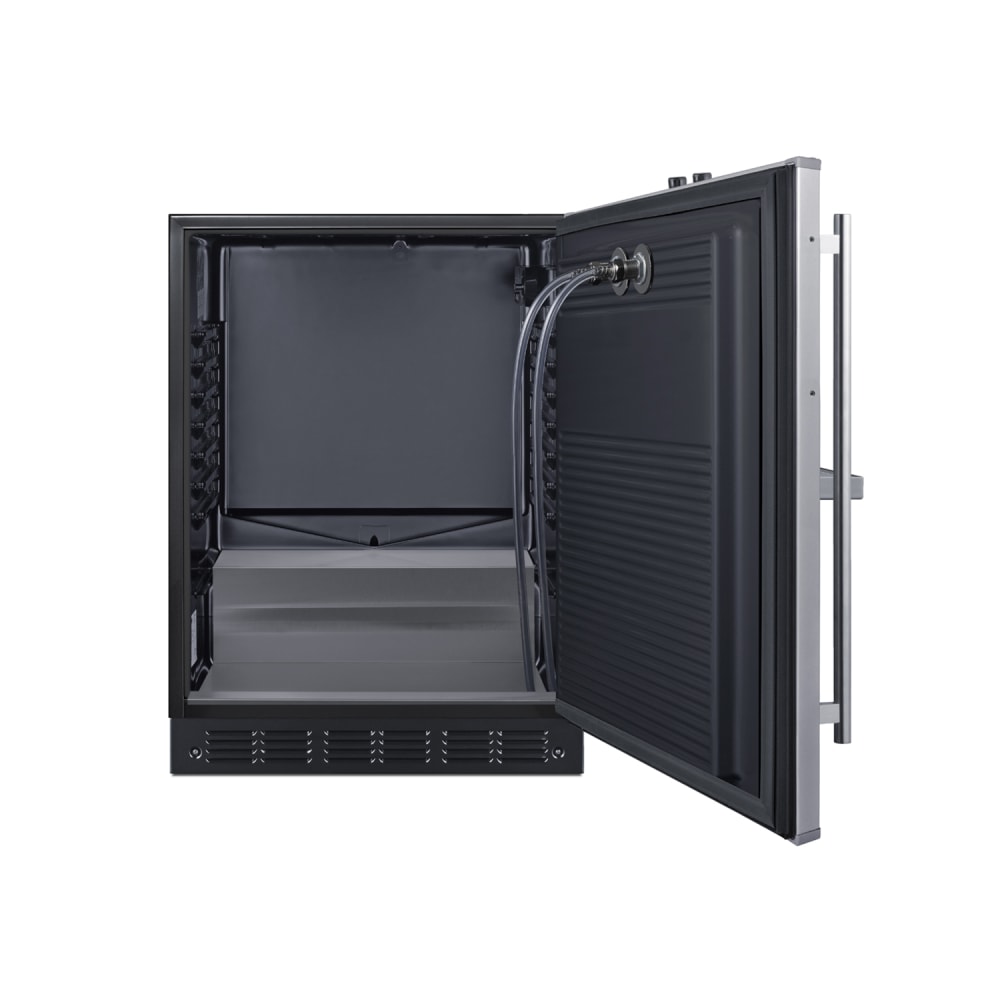

• Interior tank holder

Refrigeration System

• Self-contained
• Bottom-mounted
• Cold wall design with hidden evaporator
• Automatic defrost
• Adjustable dial thermostat
• Analog controls
• R600a hydrocarbon refrigerant
• Temperature holding range: 36-46 degrees F

Dimensions & Utilities

• Interior: 21 in. W x 18 in. D x 27³⁄₄ in. H
• Overall: 23⁵⁄₈ in. W x 27³⁄₈ in. D x 32 in. H
• 0.8 A, 1/4 HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

From The Manufacturer

Front Tap Built-In Cold Brew Coffee Kegerator (requires no alterations to your countertop), 24"W, ADA height compliant, black cabinet and stainless steel door, right handed swing door, factory reversible door, black interior, 5.3 cu.ft. capacity, indoor, freestanding use, includes a 5 lb. CO2 tank and regulator, dual front tap, Sankey American tap, connection hardware, interior light (rocker switch), stainless steel drip tray, stainless steel floor cover, interior tank holder, adjustable dial thermostat, automatic defrost, can hold two 1/6 (sixtel) sized kegs, R600a hydrocarbon refrigerant, CARB compliant, 100% CFC free, 115V/60 Hz, ETL, ETL-C, ETL-S (Residential and Commercial)

*Image may not depict product color, inclusions or accessories.

Summit SBC7BRSFRTPCFADA Specifications

Spec Attribute	Spec Value
Manufacturer	Summit
Access	Door
Base	Feet
Color	Silver
Compressor Location	Bottom
Cubic Feet	5.3
Depth (in)	27.38
Height (in)	32
Hertz	60
Keg Capacity	2
NEMA	5-15P
Number of Taps	2
Phase	1
Product	Cold Brew Dispensers
Product Type	Coffee & Tea Service
Rating	Better
Refrigerant	R600a (Hydrocarbon)
Series	SBC7 Series
Special Features	Front Tap
Type	Built In
Voltage	115
Warranty	1-year Limited Parts & Labor; 5-year Compressor
Width (in)	23.63
Weight	150.00
