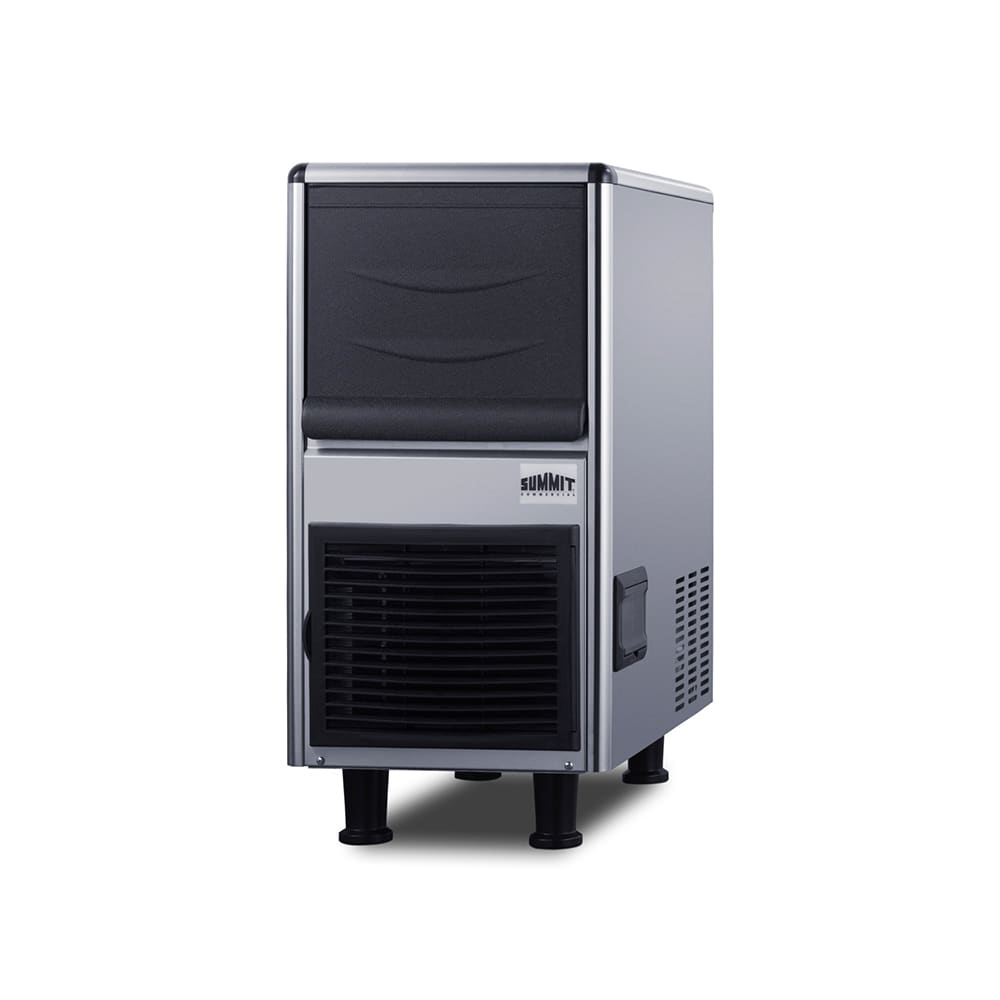

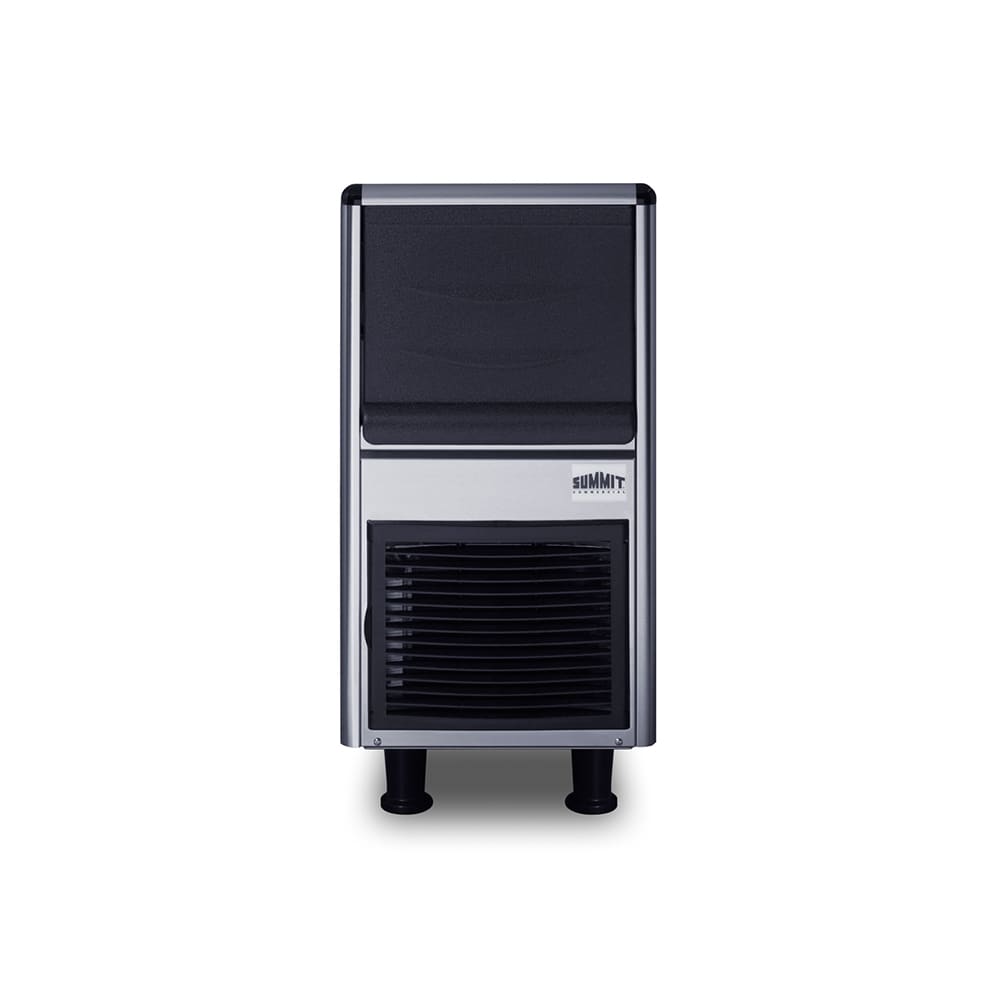

Summit BIM77BU 14 3/4"W Bullet Cube Undercounter Ice Machine - 77 lbs/day, Air Cooled

Outfitted with a lift-up sliding door and interior LED lighting, the Summit BIM77BU undercounter ice machine streamlines access during peak hours in bars, hotel lounges, and compact commercial setups. This unit delivers up to 77 pounds of clear bullet-shaped ice daily and stores as much as 33 pounds in its internal bin. Its bullet-style cubes provide quick chilling and fast harvest turnaround, ideal for high-volume beverage service. The compact 15-inch width and slim 21³⁄₄-inch depth enable installation in tight bar layouts and undercounter areas with minimal clearance.

Designed with digital ice controls, the Summit BIM77BU lets operators adjust ice thickness to suit their specific application. Its clean mode supports internal sanitation with a neutral detergent, and the removable rear mesh filter simplifies maintenance by shielding the condenser from debris. The cabinet is constructed of stainless steel with a black lift-up lid and a fully finished design suited for freestanding use. With gravity drainage and a 4-leg base, this model supports routine floor cleaning and stable operation. Foamed-in-place insulation helps preserve thermal efficiency throughout the production cycle.

Product Details

• 77-lb. daily ice production
• Makes bullet-shaped ice
• 2 selectable cube sizes
>
• Stainless steel cabinet exterior
Foamed-in-place insulation
• Black sliding lift-up bin door
• Interior LED lighting
• Digital controls for thickness adjustment
• Clean mode

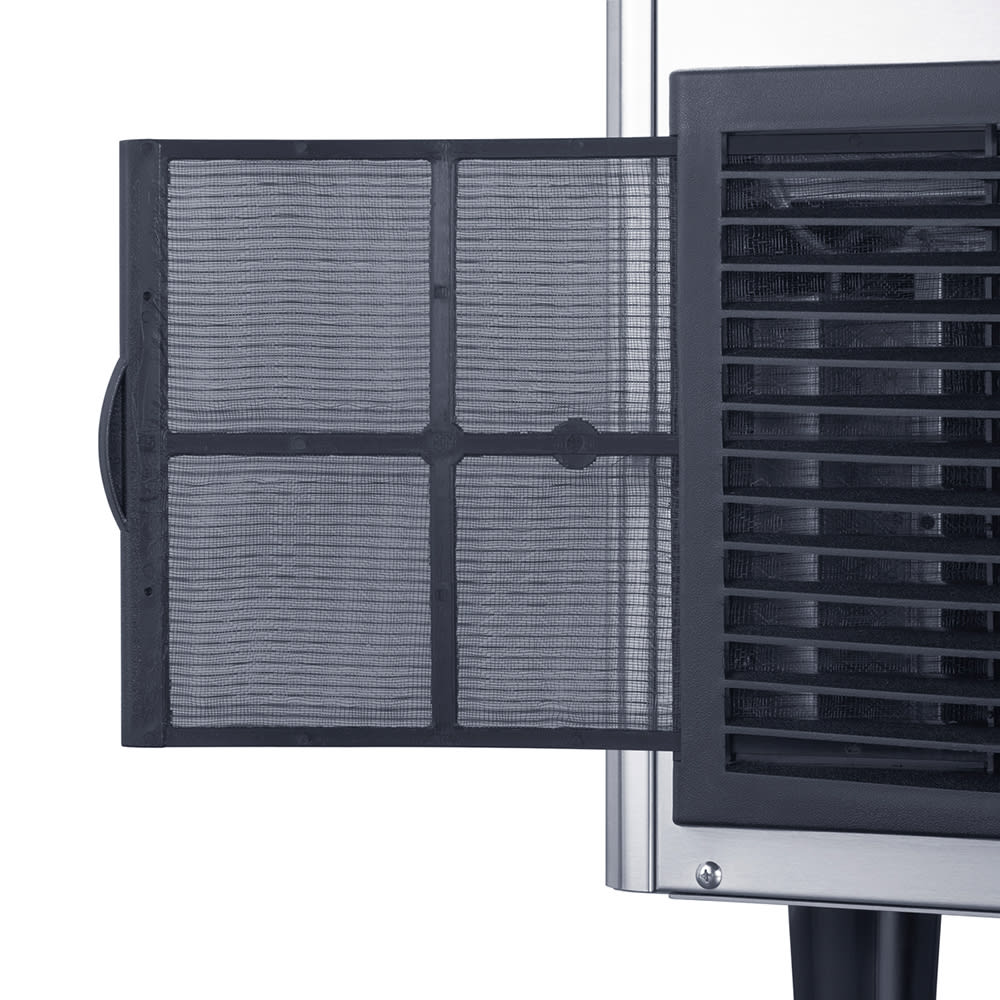

• Removable mesh air filter (rear mounted)
• Includes ice scoop
• Includes 4 leveling legs
• Gravity drain

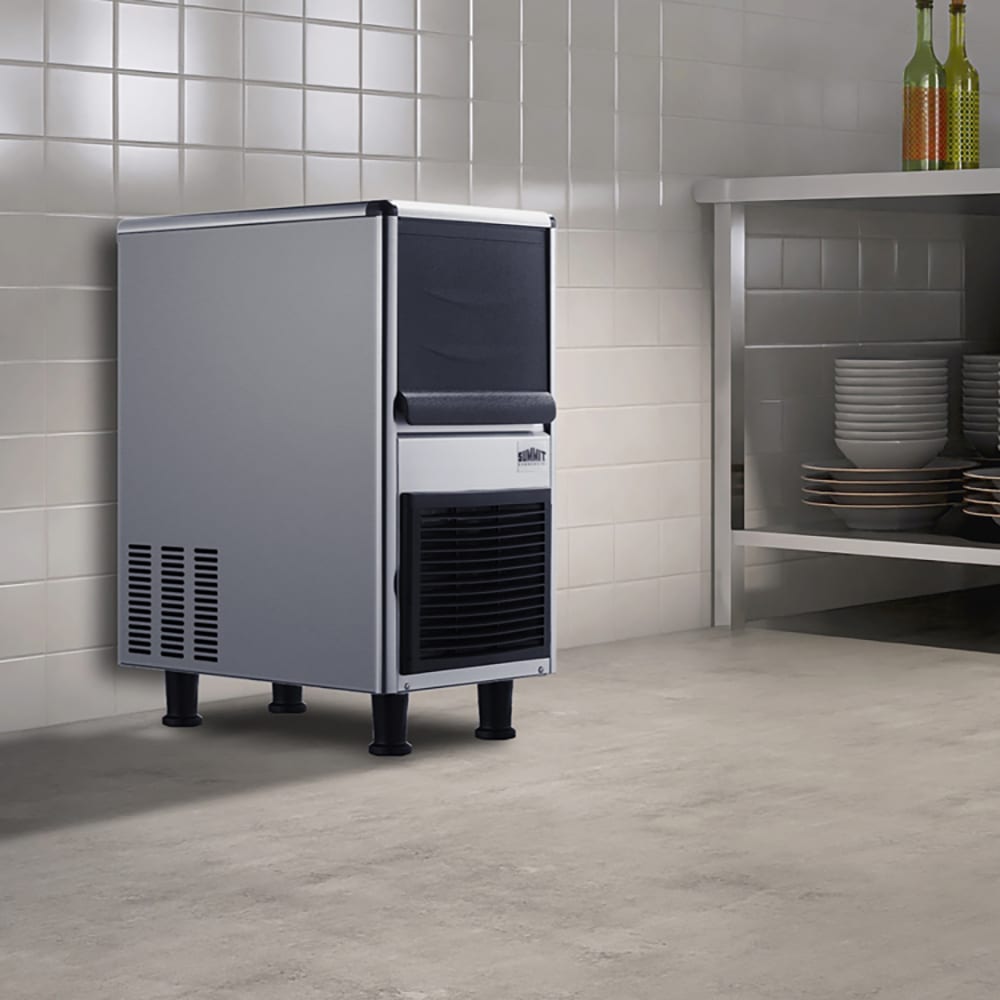

• Fully finished cabinet for freestanding use

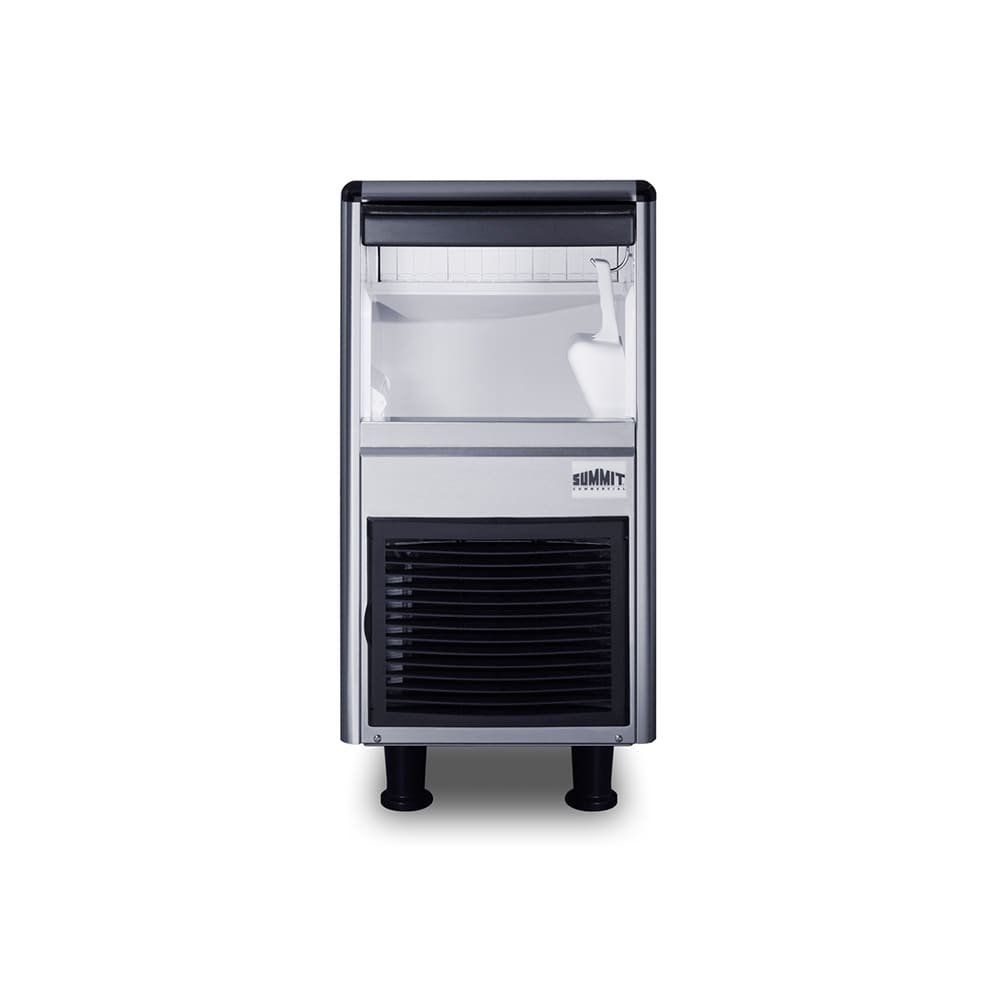

Bin Details

• 33-lb. storage capacity
• Lift-up gliding top lid
• Interior light
• Automatic full bin sensor

Refrigeration System

• Air-cooled compressor
• Rear ventilation
• Uses R290 hydrocarbon refrigerant
• Interior fan
• Automatic defrost cycle
• Drain connection required

Dimensions & Utilities

• Interior dimensions: 12³⁄₄ in. W x 15¹⁄₂ in. D x 13¹⁄₂ in. H
• Overall dimensions: 14³⁄₄ in. W x 21³⁄₄ in. D x 30 in. H
• 3.5 A
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

*Summit BIM77BU is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Commercial Bullet Ice Machine, 14.75" W, sliding door, large capacity 77 lb. clear bullet ice production, store up to 33 lbs, full bin sensor, slim 22" depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space, air and water filter, easily increase or decrease bullet ice thickness to desired size via digital controls, ice scoop, clean mode allows you to periodically clean the system as needed with a neutral detergent, Included leg set allows you to clean the space below the icemaker, fully finished cabinet, CARB Compliant, Lead-free, 115v/60/1-ph, 3.5 amps, ETL, ETL-C, ETL-S, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Summit BIM77BU Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.

Documents

Spec Sheet

Manual
