Summit BIM44GCSSADA 14 1/2"W Full Cube Undercounter Ice Machine - 50 lbs/day, Air Cooled, ADA, Pump Drain, 115v

For office break rooms or residential kitchens, the Summit BIM44GCSSADA full-cube undercounter ice machine produces 50 pounds of ice in 24 hours, while its built-in storage bin can hold as much as 25 pounds. So the ice cubes stay frozen for extended periods, the storage bin is fully insulated. To maintain ideal internal temperatures, it operates using R134a refrigerant via its air-cooled condenser. Its integrated manual defrost mechanism heats the coils when excess frost is detected, lowering maintenance needs.

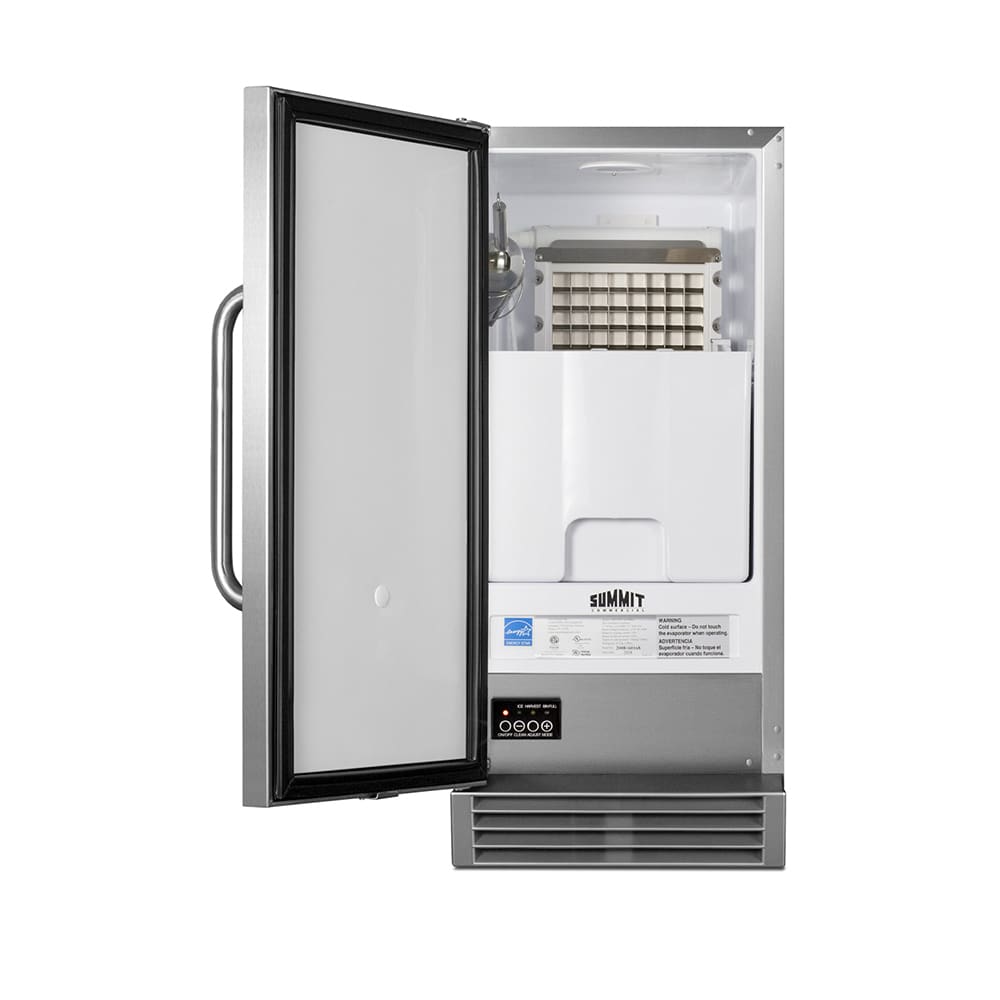

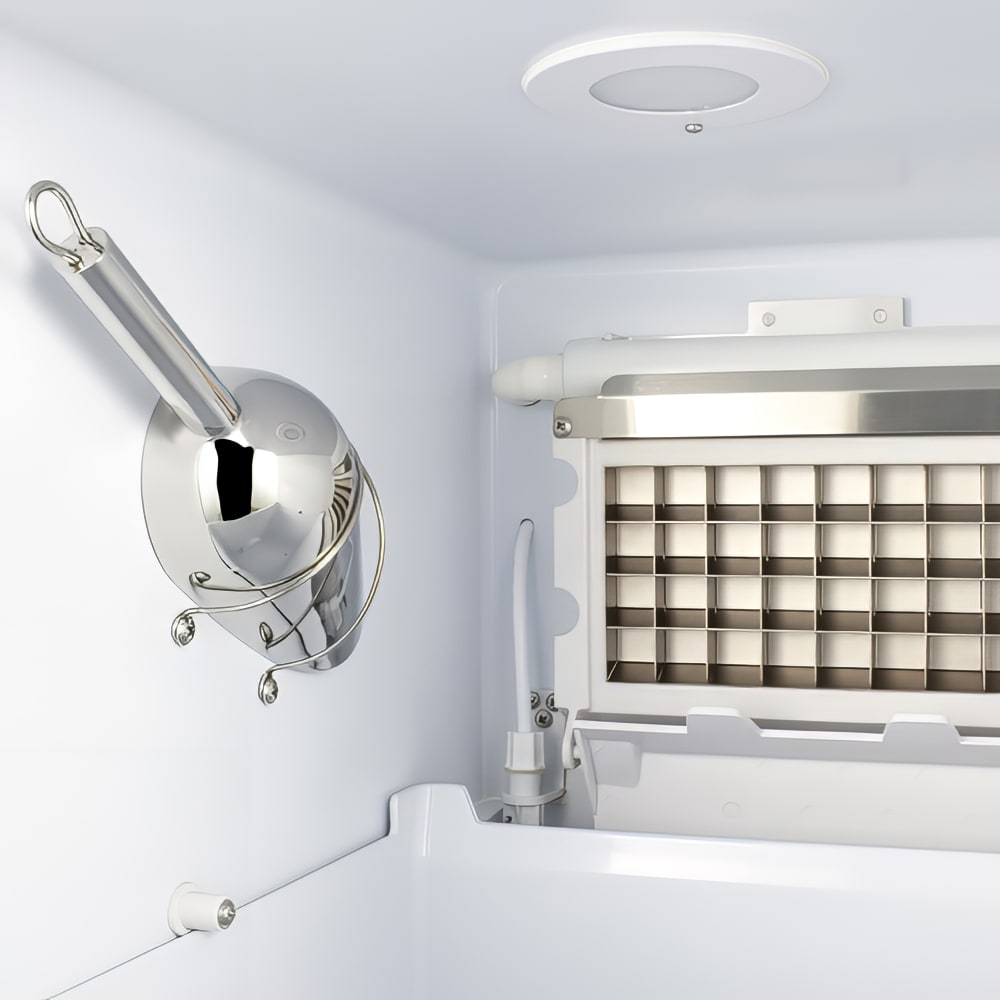

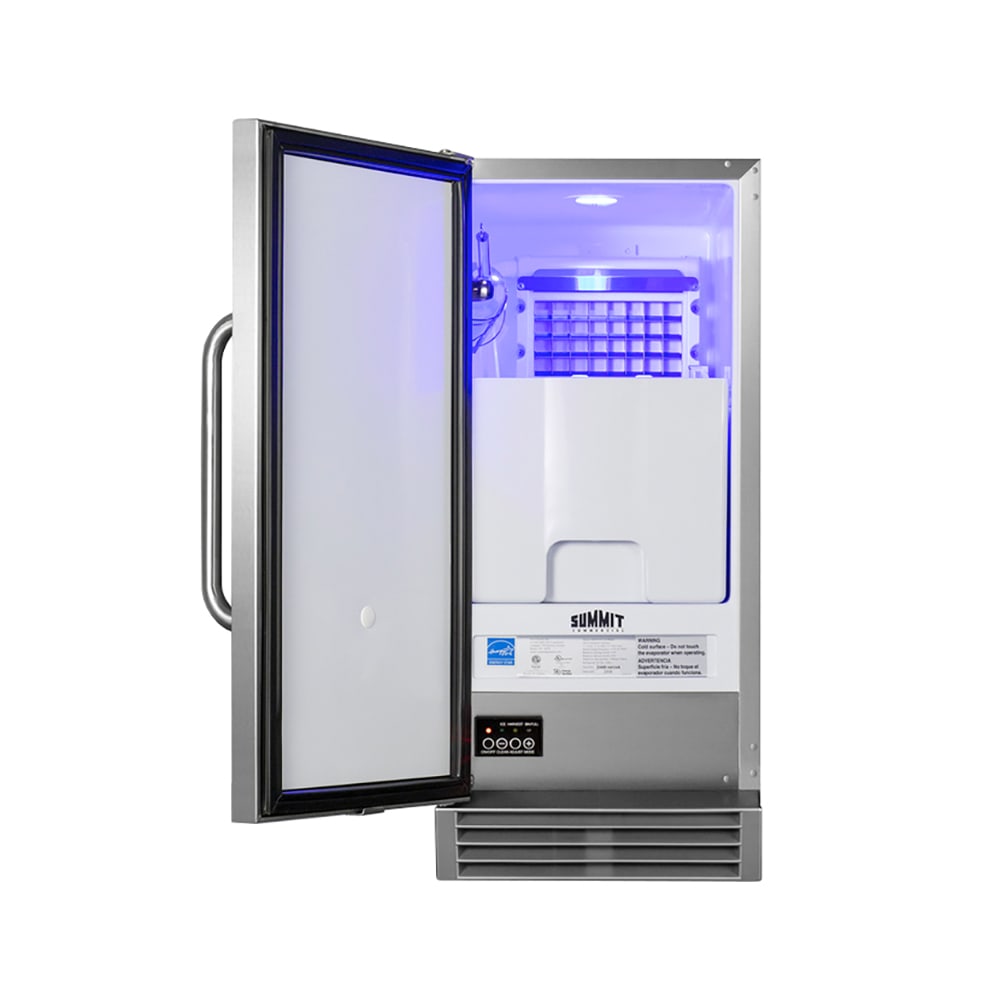

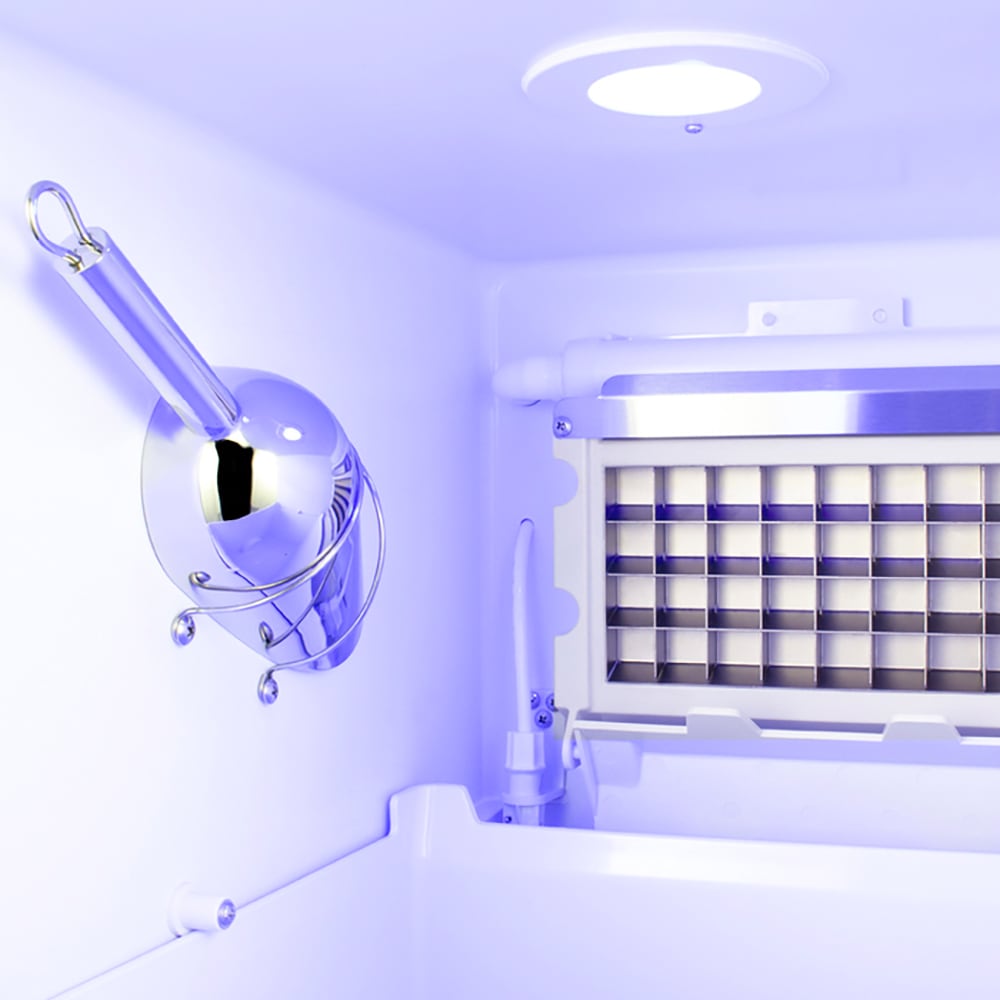

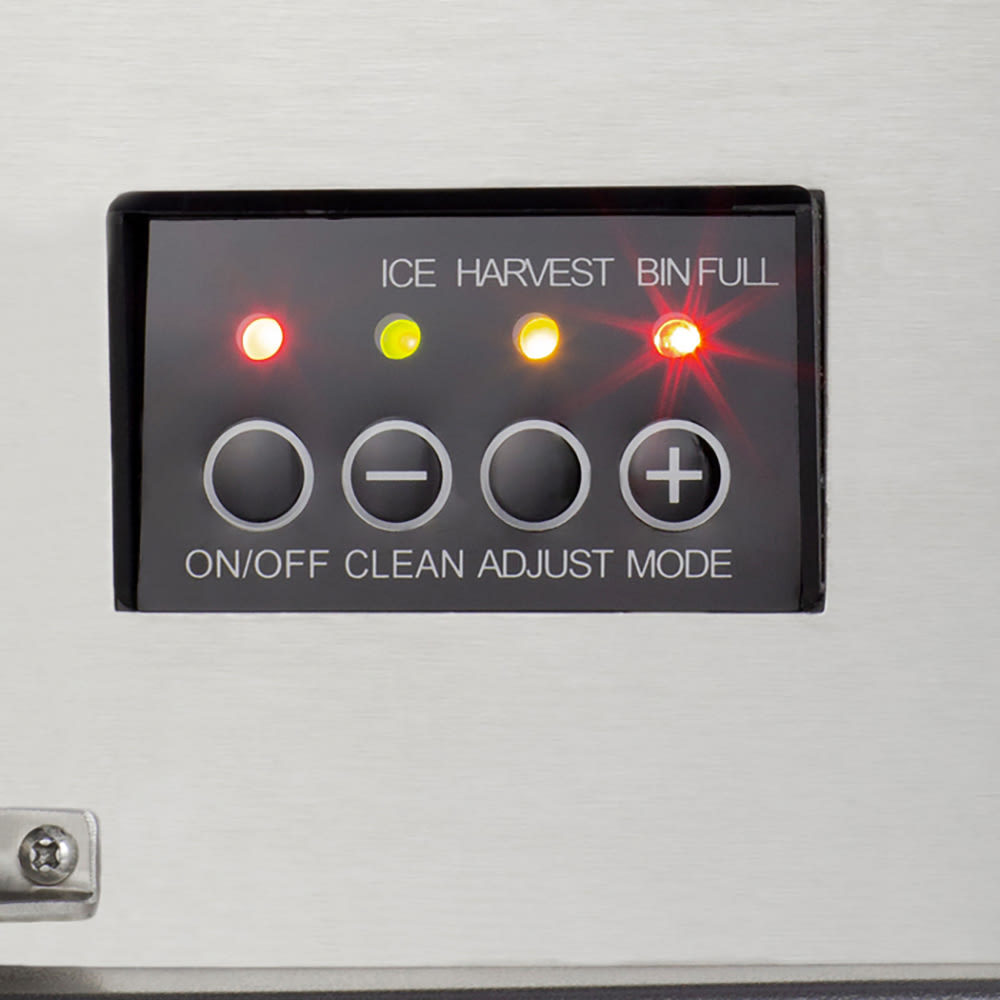

Overall, the Summit BIM44GCSSADA undercounter ice maker measures 14¹/₂ inches wide by 25 inches deep by 32¹⁹/₅₀ inches high and features a sealed back that can be placed directly against walls. For optimized control, it has an interior-mounted control panel with indicator lights for each stage of production; to enhance visibility, its interior is illuminated with blue lighting. To enhance sanitation and minimize direct contact with ice, the interior wall features a bracket that can hold an ice scoop. So users can configure this unit to fit the desired space, its door is reversible, and for a streamlined appearance it sports a towel bar handle. For stable placement on uneven flooring, this unit sits on leveling legs.

Product Details

• Produces 50 lbs. in 24 hours
• Holding capacity: 25 lbs.
• Freestanding/undercounter configuration
• Insulated storage bin
• Produces sheets of ice cubes
• Cube dimensions: ³⁄₄ in. x ³⁄₄ in. x 1 in.
• 1 reversible, solid-hinged door
• Interior lighting
• Towel bar handle
• Stainless steel finish and sealed back
• Leveling legs adjust to uneven surfaces
• Interior control panel with touch controls
• Ice scoop included

Refrigeration Details

• Air cooled
• Front ventilation
• Built-in pump
• Auto defrost
• R134a refrigerant

Dimensions & Utilities

• Overall: 14¹/₂ in. W x 25 in. D x 32¹⁹/₅₀ in. H
• Interior: 12 in. W x 16 in. D x 18¹⁄₂ in. H
• ³/₈-in. dia. water inlet connection
• ³/₄-in. dia. drain connection
• 4.8 A
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Icemaker, cube-style, built-in or freestanding, air-cooled, 14.5"W x 25"D x 32.38"H, (50) lbs production/24 hours, (25) lbs holding capacity, front-breathing, built-in pump, (1) reversible solid hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R134a refrigerant, 115v/60/1-ph, 4.8 amps, NSF, UL, ULC, ETL-Sanitation, ENERGY STAR® (Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor Parts

Summit BIM44GCSSADA Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.

Documents

Spec Sheet

Manual
