Summit BIM182OSLHD 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled

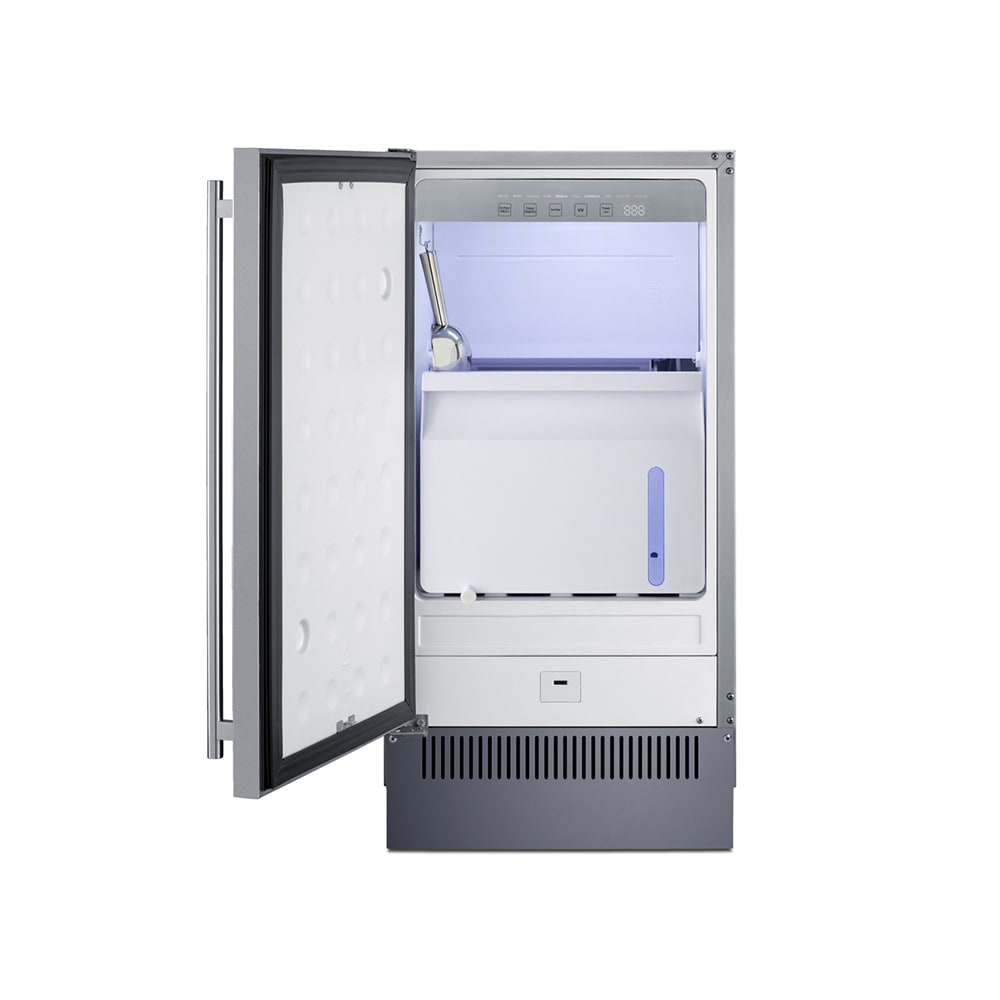

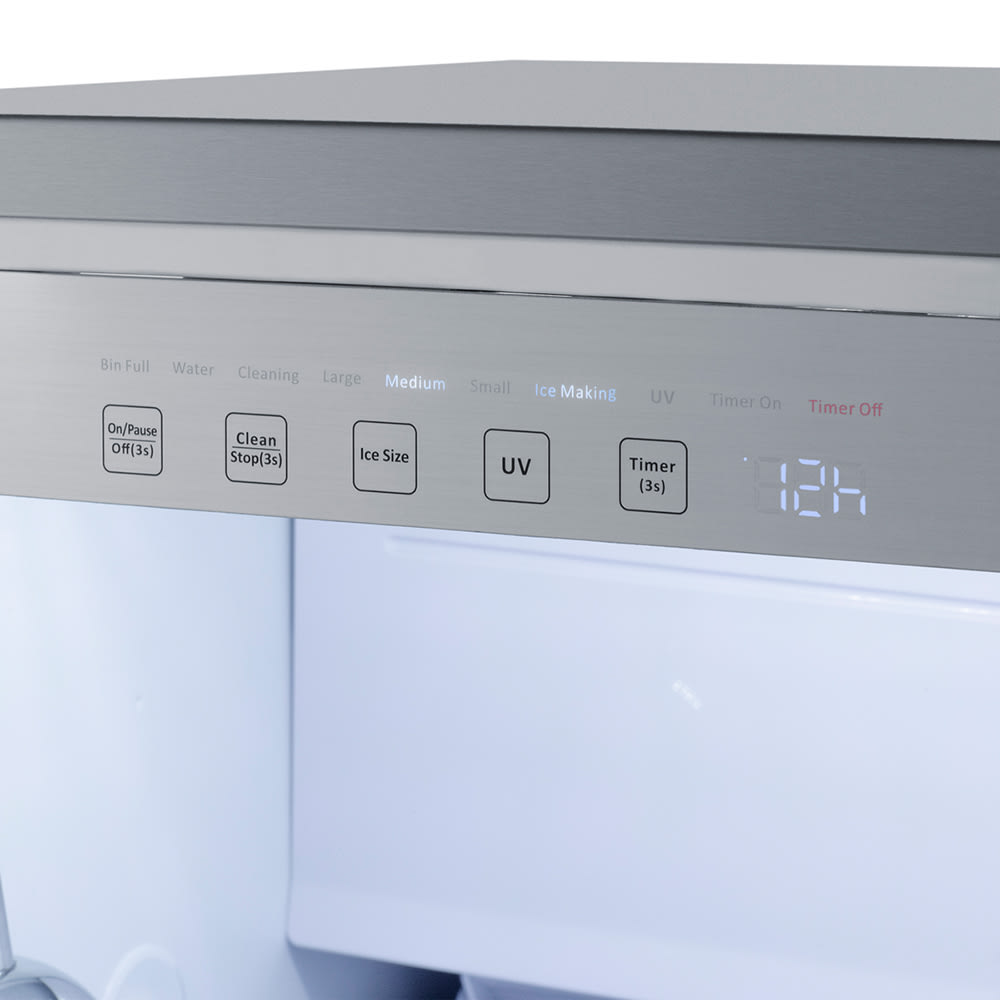

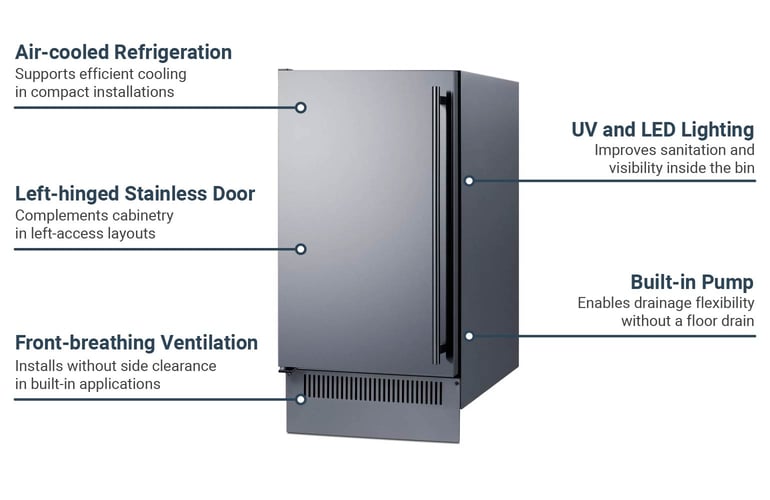

Featuring a front-breathing, air-cooled refrigeration system, the Summit BIM182OSLHD outdoor undercounter ice machine supports built-in installation in tight kitchen layouts or exterior service areas. This model produces up to 60 pounds of full-cube ice per day and retains 33 pounds in a removable, insulated bin. Its touch control panel enables the selection of small, medium, or large cubes and features LED indicators for production status. A built-in pump supports flexible drainage options in spaces with limited access to floor drains.

The Summit BIM182OSLHD outdoor ice maker is fitted with a left-hinged door, making it suitable for freestanding placement. Its sealed back and leveling legs streamline positioning, while the interior LED lighting improves visibility. A UV light enhances sanitation inside the bin, and the included ice scoop stores neatly on interior brackets. For enhanced adaptability, the unit includes a taller kickplate to increase height up to 34³⁄₄ inches. The foamed-in-place polyurethane insulation helps maintain internal temperatures and protect stored ice.

Product Details

• From the BIM182 series
• Built-in or freestanding configuration
• Produces 60 lbs. of full-cube ice per 24 hours
• 3 cube size options: small, medium, large
• Stainless steel cabinet
• Solid door with left-hinged swing
• Removable, insulated bin with 33-lb. storage volume
• Touch control panel with LED status indicators
• Plastic interior
• Foamed-in-place polyurethane insulation
• LED interior lighting
• UV interior light
• 4 leveling legs

Refrigeration System

• Front-breathing, self-contained refrigeration system
• Air-cooled compressor
• Automatic defrost cycle
• Internal drain pump
• R290 hydrocarbon refrigerant
• Drain required

Dimensions & Utilities

• Interior: 14³⁄₄ in. W x 16³⁄₄ in. D x 18³⁄₄ in. H
• Overall: 17³⁄₄ in. W x 25¹⁄₄ in. D x 34³⁄₄ in. H
• 11.8 A
• 115 V/60 Hz/1 ph

Product Features

*Summit BIM182OSLHD is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Outdoor Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 25-1/4"D x 34-3/4"H, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Summit BIM182OSLHD Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.
