Summit BIM182ADALHD 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled, ADA

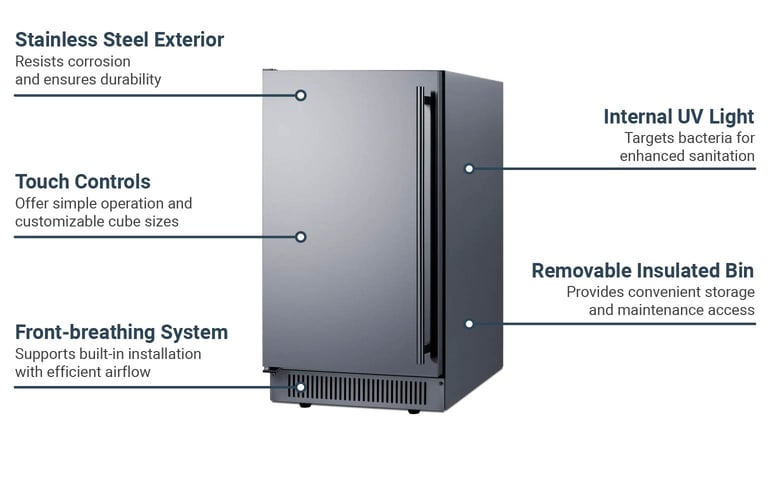

Designed with a compact footprint, the Summit BIM182ADALHD undercounter ice machine features front-breathing, air-cooled operation and a built-in drain pump. This icemaker produces up to 60 pounds of clear, full-cube ice in a 24-hour cycle and holds 33 pounds in its insulated internal bin. To address various product needs, this unit has the capability of producing three different ice sizes: small, medium, and large, and the touch control panel is used for cube size selection and provides user-friendly indicators throughout the production process.

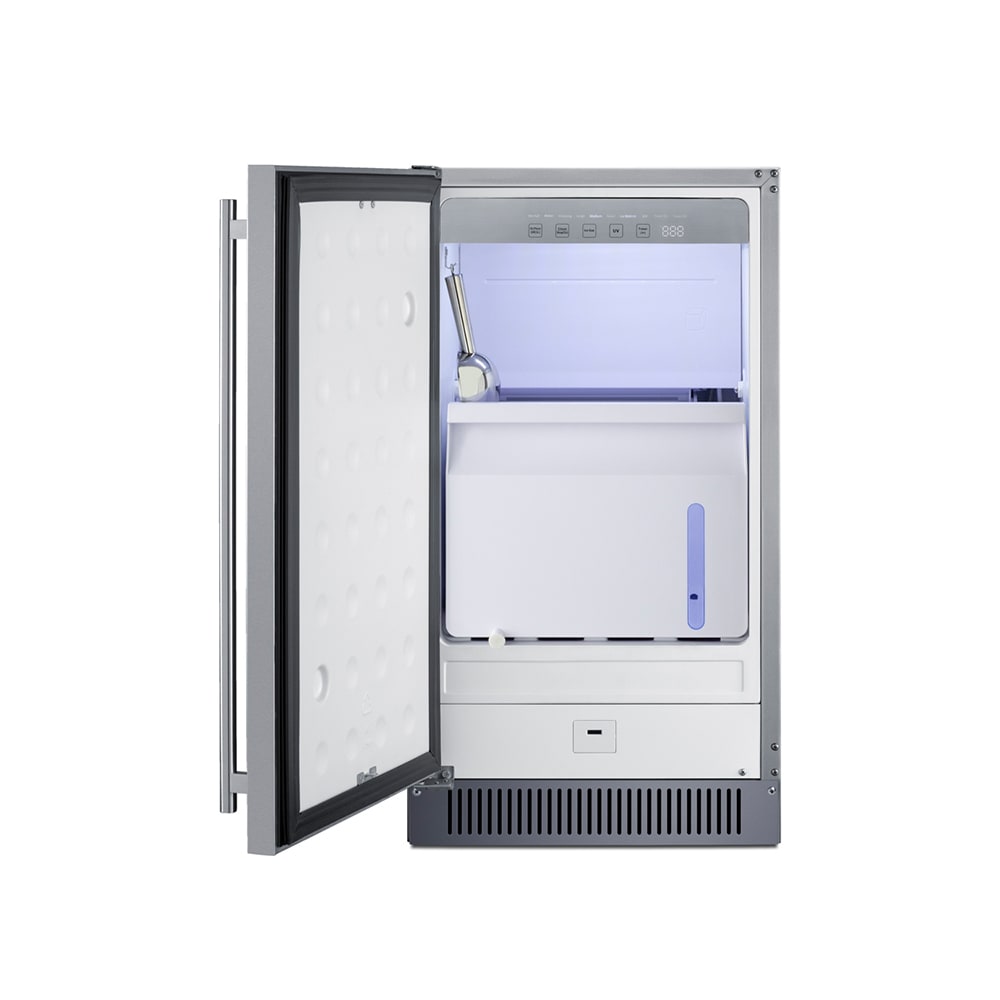

The Summit BIM182ADALHD ice machine is constructed of stainless steel for long-lasting use and a sleek exterior. With a built-in design and slim 17³⁄₄-inch width, it can be installed beneath countertops. The plastic interior is accessed through a left-hinged, solid door. Its auto defrost reduces staff interference, while the interior bin is both removable and insulated. An integrated UV light enhances sanitation by targeting bacteria during operation. To help maintain consistent temperatures during use, this unit is equipped with foamed-in-place polyurethane insulation.

Product Details

• BIM182 series
• Suited for undercounter or freestanding installation
• Produces up to 60 lbs. of ice daily
• Makes full cube ice in 3 sizes: small, medium, or large

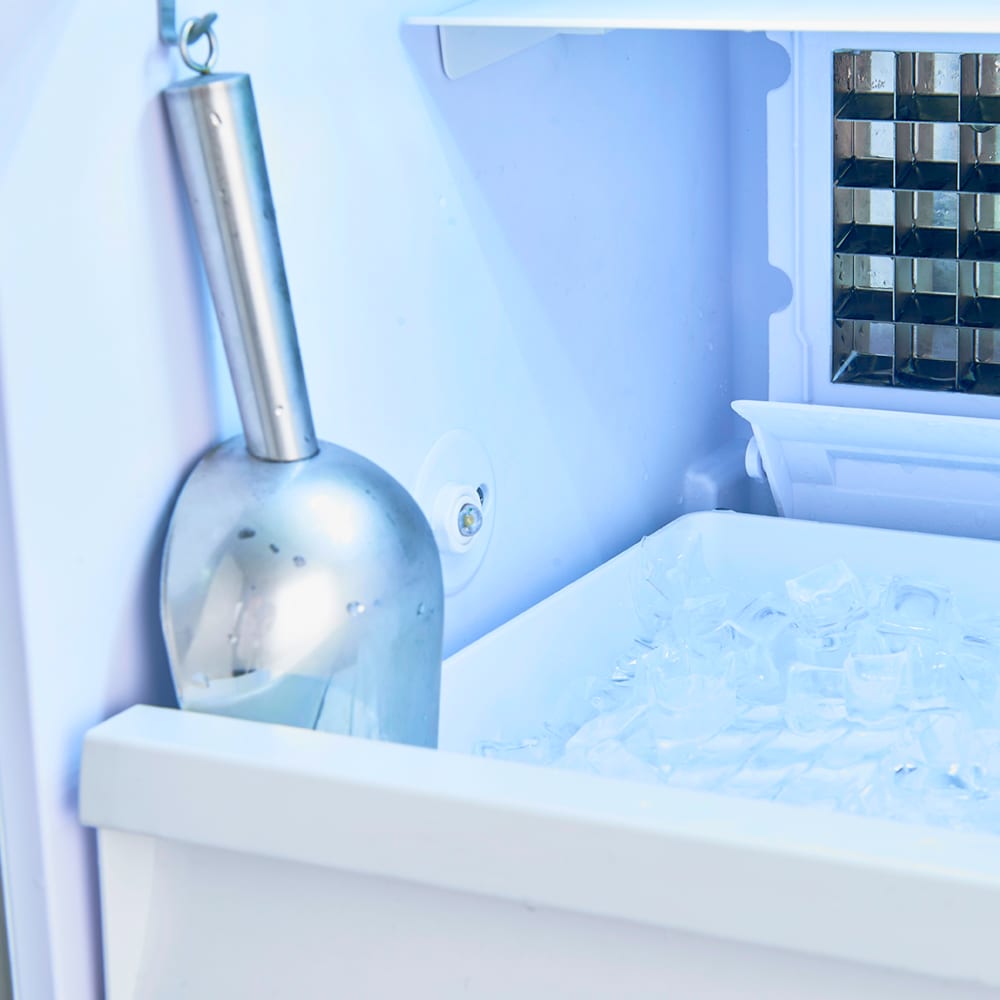

• Removable bin with 33-lb. storage volume
• Stainless steel exterior and door
• Plastic interior
• Steel frame
• Foamed-in-place polyurethane insulation
• Left-hinged door with solid panel

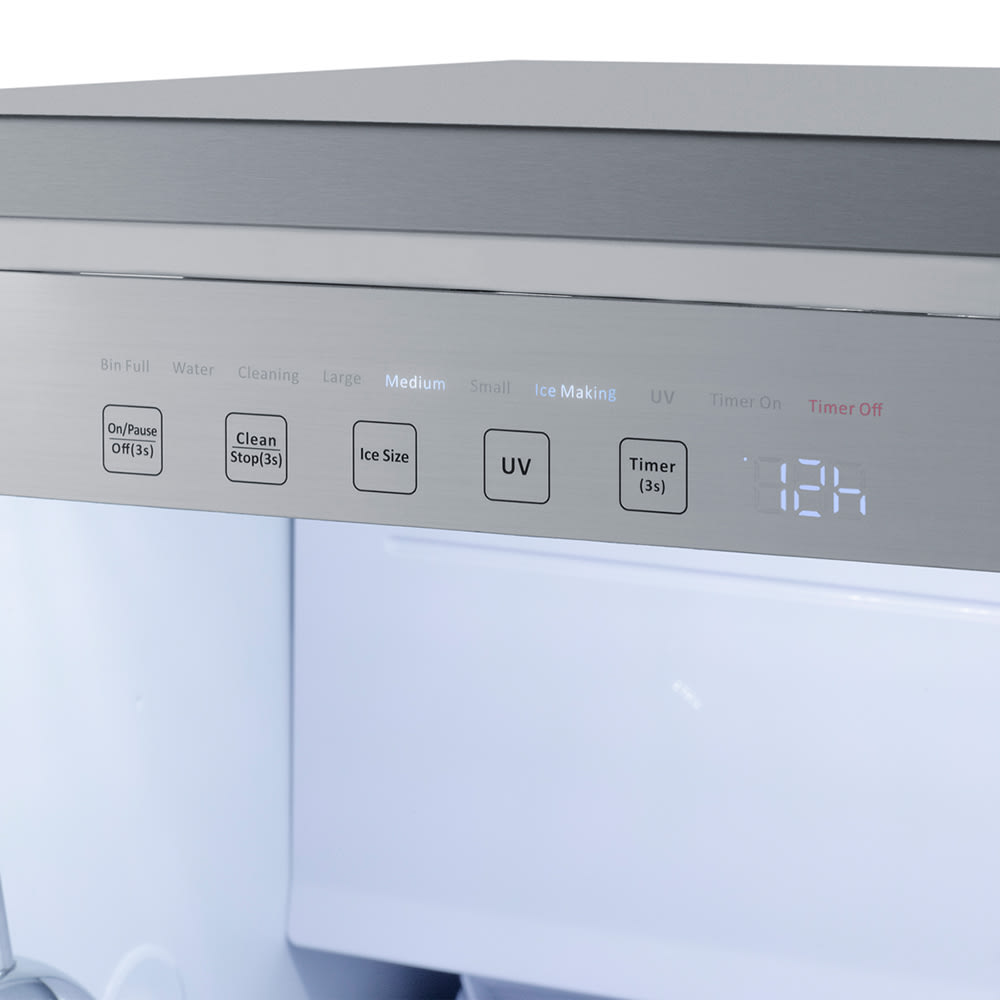

• Touch control panel with ice size selection
• LED interior lighting
• Built-in UV light
• 4 leveling legs

Refrigeration System

• Front-mounted, self-contained system
• Air-cooled compressor
• R290 hydrocarbon refrigerant
• Automatic defrost system
• Internal pump
• Drain required for operation

Dimensions & Utilities

• Interior: 14³/₄ in. W x 16³/₄ in. D x 18³/₄ in. H
• Overall: 17³⁄₄ in. W x 25¹⁄₄ in. D x 32¹⁄₂ in. H
• 11.8 A
• 115 V/60 Hz/1 ph

Product Features

*Summit BIM182ADALHD is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 25-1/4"D x 32-1/2"H, ADA height compliant, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Summit BIM182ADALHD Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.

Documents

Spec Sheet

Manual
