Continental DL3W-SS-PT-HD Full Height Insulated Mobile Heated Cabinet w/ (45) Pan Capacity, 208-230v/1ph
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 04-15-2025 to save before the price increases!
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v

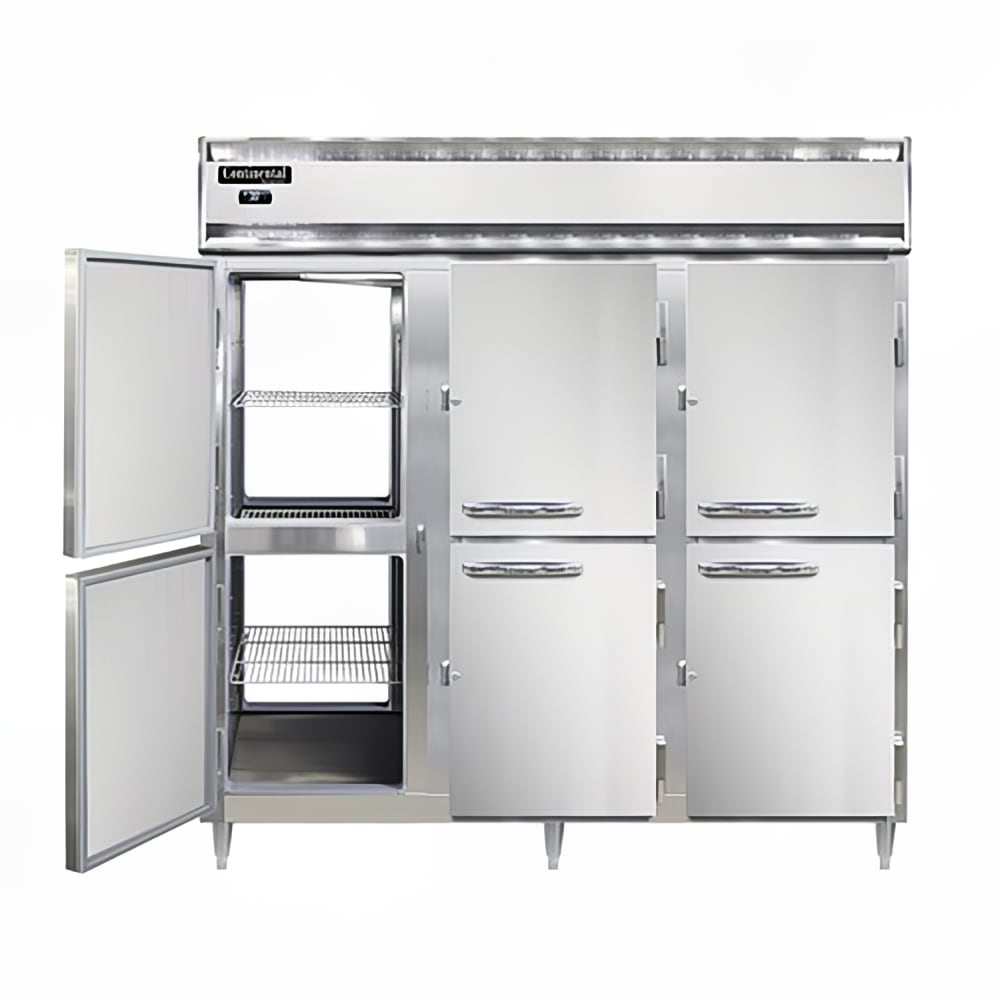

Continental DL3W-SS-PT-HD Description
Featuring a pass-thru design, the Continental DL3W-SS-PT-HD heating cabinet is a great addition to busy bakeries and buffet locations as its large 72-cubic-foot interior is accessible from either side. Overall, the unit can hold 45 standard-sized pans among its two sections and nine epoxy-coated shelves. These shelves can be removed and replaced as needed among the pilaster strips.
To ensure the Continental DL3W-SS-PT-HD warming unit can withstand commercial use, it’s fully constructed of stainless steel. Each side of the cabinet is fitted with six half-height, solid doors, which self-close to prevent drastic temperature shifts, and cylinder locks to prevent theft or tampering. Staff must access the electronic controller to set the desired holding temperature, ranging from 90 to 180 degrees Fahrenheit.
Product Details
- Designer Line series
- 3 sections
- Pass-thru design
- 72-cu.-ft. interior capacity
- Holds 45 standard-size pans
- Constructed of stainless steel
- 3-in. polyurethane foam insulation
- 9 epoxy-coated steel shelves
- Heavy-duty pilaster strips
- Automatic interior lighting
- Adjustable stainless steel legs
6 Half-height Doors
- Solid
- Self-closing design
- Polished chrome workflow handles
- Cylinder locks
- Cam-action, lift-off hinges
- Santoprene™ snap-in gaskets
Warming System
- Self-contained and top mounted
- Air distribution ducting
- Electronic controller
- Digital display
- Audible temperature alarm
- Temperature holding range: 90-180 degrees F
- Base-mounted stainless steel strip heaters
Dimensions & Utilities
- Interior: 29 in. D x 581/8 in. H
- Overall: 78 in. W x 353/8 in. D x 831/4 in. H (including extended legs)
- 10.6 A
- 208-230 V/60 Hz/1 ph (hardwire)
Product Features
*Free shipping on Continental DL3W-SS-PT-HD within the 48 contiguous states.
From The Manufacturer
Designer Line Heated Cabinet, pass-thru, three-section, 72 cu. ft. capacity, (3) shelves per section, stainless steel exterior & interior, standard depth cabinet, narrow half-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF
*Image may not depict product color, inclusions or accessories.
Continental DL3W-SS-PT-HD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Continental |
| Application | Heat Only |
| Control Location | Top |
| Construction | Stainless Steel |
| Controls | Digital |
| Door Design | Half |
| Door Type | Solid |
| Depth (in) | 35.38 |
| Hinge Configuration | Left/Right |
| Heat | Electric |
| Hertz | 60 |
| kW | 2.25 |
| Load Type | Pass Thru |
| Height (in) | 83.25 |
| No. of Doors | 12 |
| Pan Capacity | 45 |
| Phase | 1 |
| Sections | 3 |
| Size | Full Height |
| Slide Type | Shelves |
| Series | Designer Line |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Voltage | 208/230 |
| Type | Insulated |
| Warranty | 3-year Parts & Labor |
| Width (in) | 78 |
| Weight | 855.00 |
Important Prop 65 information for California residents.
