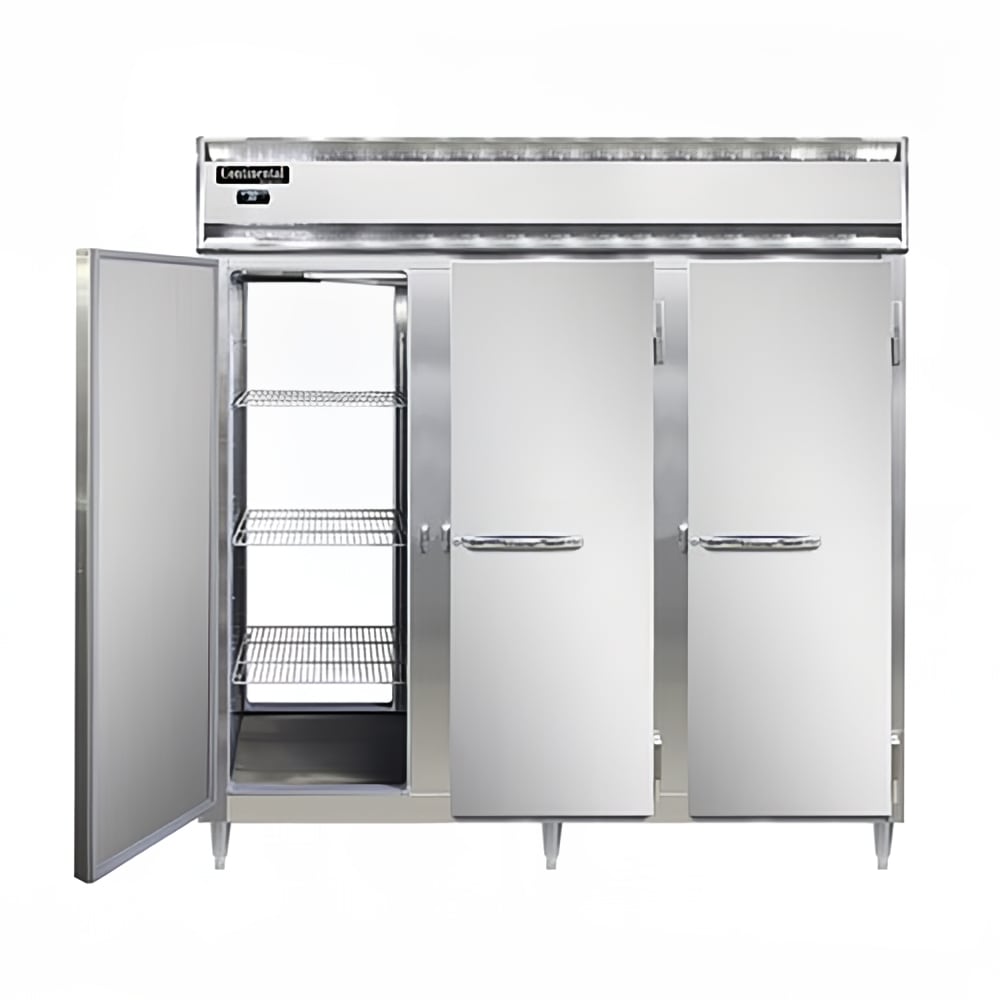

Continental DL3W-SS-PT Full Height Insulated Mobile Heated Cabinet w/ (57) Pan Capacity, 208-230v/1ph

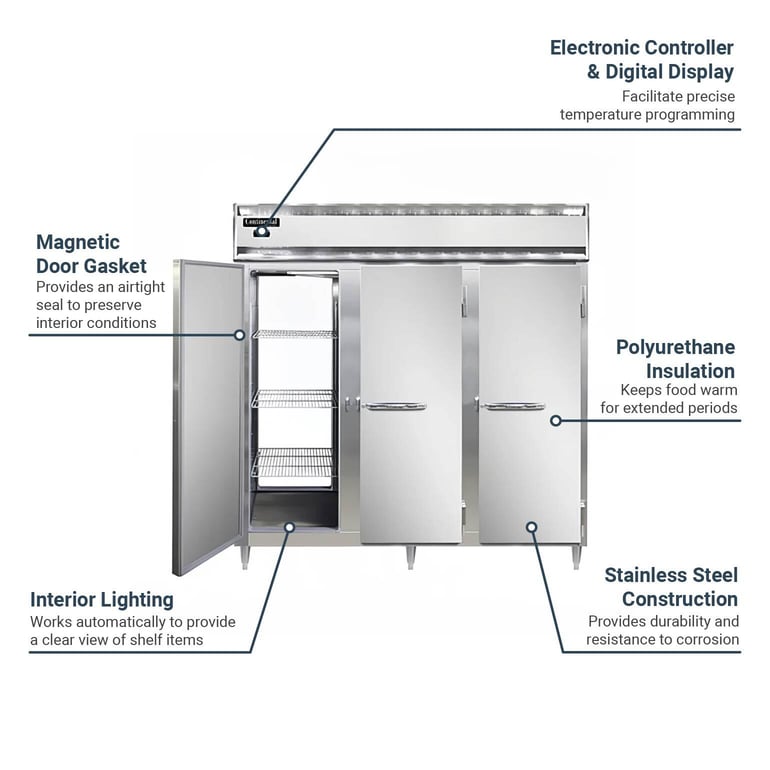

A good choice for locations with a buffet station that must replenished regularly, the Continental DL3W-SS-PT heated cabinet has nine adjustable, chrome-plated steel shelves for item storage and maintains a temperature holding range between 90 and 180 degrees Fahrenheit. The interior spans 72 cubic feet and has a pass-thru configuration ideal for center placement in a kitchen area, as it can provide both kitchen and wait staff access to the interior. To resist corrosion buildup and wear overtime, this unit has a stainless steel exterior and interior. To preserve internal conditions, there are 3 inches of polyurethane insulation between the metal paneling.

The interior of the Continental DL3W-SS-PT pass-thru warming cabinet is accessed from both sides through a total of six solid steel doors, which have a self-closing design to keep hot air from escaping. Additionally, the doors have Santoprene™ magnetic snap-in gaskets to establish an airtight closure. Each door is fitted with a smooth, polished chrome door handle to provide a comfortable grip without interrupting the flow of traffic in a kitchen workspace. This warmer is managed using the electronic controller and digital display with a high/low alarm to alert staff if the cabinet experiences a sudden temperature change.

Product Details

• Designer Line series
• 3 sections
• 72-cu.-ft. interior
• Pass-thru unit
• Exterior and interior are constructed of stainless steel
• 3-in. polyurethane foam insulation
• 9 heavy-duty, chrome plated steel shelves
• Heavy-duty pilaster strips
• Automatic interior lighting
• 6 half-height, solid stainless steel doors
• Self-closing design
• Cam action, lift-off hinges
• Cylinder lock in each door
• Santoprene magnetic snap-in door gaskets
• Polished chrome workflow door handles
• 6-in. adjustable stainless steel legs

Self-contained Warming System

• Top mounted
• Unique air flow distribution ducts
• Electronic controller with digital display
• High/low temperature alarm
• Stainless steel strip heaters in base of interior
• Temperature holding range: 90-180 degrees F

Dimensions & Utilities

• Door opening: 19³/₈ in. W x 58⁵/₈ in. H
• Interior: 29 in. W x 58¹/₈ in. H
• Overall: 78 in. W x 38³/₄ in. D x 83¹/₄ in. H
• 13.9 A, 3 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Continental DL3W-SS-PT within the 48 contiguous states.

From The Manufacturer

Designer Line Heated Cabinet, pass-thru, three-section, 72 cu. ft. capacity, (3) shelves per section, stainless steel exterior & interior, standard depth cabinet, narrow full-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor

Continental DL3W-SS-PT Specifications

Documents

Spec Sheet

Warranty

Manual
