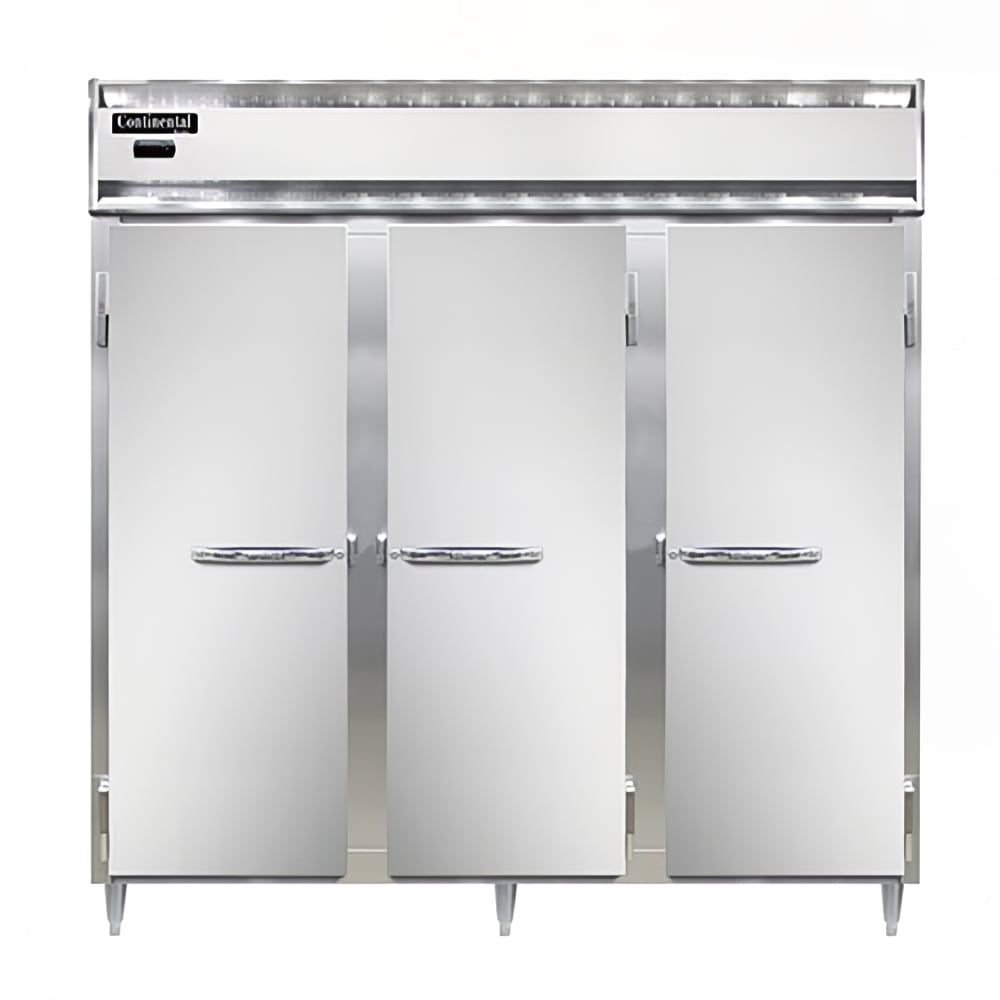

Continental DL3W-PT Full Height Insulated Mobile Heated Cabinet w/ (57) Pan Capacity, 208-230v/1ph
$17,829.74 /Each
Login or enter your email to be instantly sent the price!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Continental DL3W-PT Description
Designed to keep cooked meats at safe temperatures until they're ready to be served, the Continental DL3W-PT heated cabinet holds temperatures between 90 and 180 degrees Fahrenheit. The plenum design features a circulating fan; the addition of airflow ducts promotes an even blanket of hot air within the cabinet. The base’s stainless steel strip heaters also encourage temperature consistency. The digital display with a high-low alarm tracks and monitors the cabinet’s internal temperature. The heating system is top mounted for convenient service and maintenance.
The Continental DL3W-PT mobile heated cabinet has a 72-cubic-foot space, a pass-thru design, and comes with nine epoxy-coated steel shelves and heavy-duty pilaster strips. It has six full-height doors that self-close to reduce hot air loss; they also lock to prevent tampering. The front is made of stainless steel, while the end panels and interior are made of aluminum. For optimal temperature retention, it’s insulated with 3-inch-thick polyurethane foam.
Product Details
- Designer Line series
- 72-cu.-ft. interior space
- 9 steel shelves
- Pilaster strips
- 9 tray-slide/6 tray-slide capacity (per top/bottom section)
- Pass thru
- Aluminum end panels and interior
- Stainless steel front
- 3-in.-thick polyurethane insulation
- Cabinet lighting
- 6-in. stainless steel legs
6 Full-height Doors
- Cam-action, lift-off hinges
- Self-closing
- Magnetic door gaskets
- Chrome workflow handles
- Cylinder door locks
- Solid
Heating System
- Self-contained
- Top mounted
- Plenum design with circulating fan
- Efficient airflow distribution ducts
- Stainless steel strip heaters
- Temperature holding range: 90-180 degrees F
- Electronic controller
- Display with high/low alarm
Dimensions & Utilities
- Door: 193/8 in. W x 32 in. D x 585/8 in. H
- Overall: 78 in. W x 383/4 in. D x 831/4 in. H
- 3,000 W, 13.9 A
- 208-230 V/60 Hz/1 ph, hardwired
*Free shipping on Continental DL3W-PT within the 48 contiguous states.
From The Manufacturer
Designer Line Heated Cabinet, pass-thru, three-section, 72 cu. ft. capacity, (3) shelves per section, aluminum exterior & interior, stainless steel front & doors, standard depth cabinet, narrow full-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF
*Image may not depict product color, inclusions or accessories.
Continental DL3W-PT Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Continental |
| Application | Heat Only |
| Construction | Aluminum |
| Control Location | Top |
| Controls | Digital |
| Depth (in) | 35.38 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| kW | 2.25 |
| Load Type | Pass Thru |
| No. of Doors | 6 |
| Pan Capacity | 57 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 3 |
| Series | Designer Line |
| Size | Full Height |
| Slide Type | Shelves |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor |
| Width (in) | 78 |
| Weight | 740.00 |
