Continental DL3W-HD Full Height Insulated Mobile Heated Cabinet w/ (45) Pan Capacity, 208-230v/1ph
$14,520.04 /Each
Login or enter your email to be instantly sent the price!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v

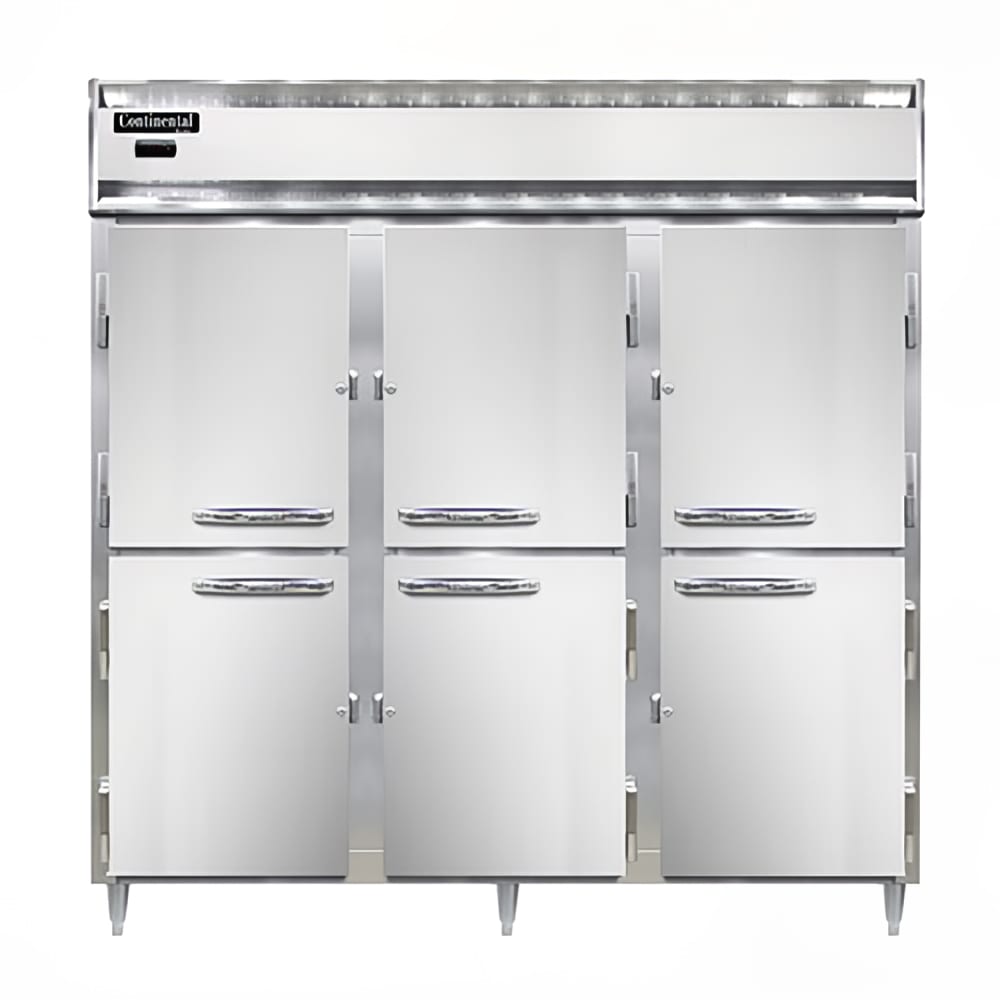

Continental DL3W-HD Description

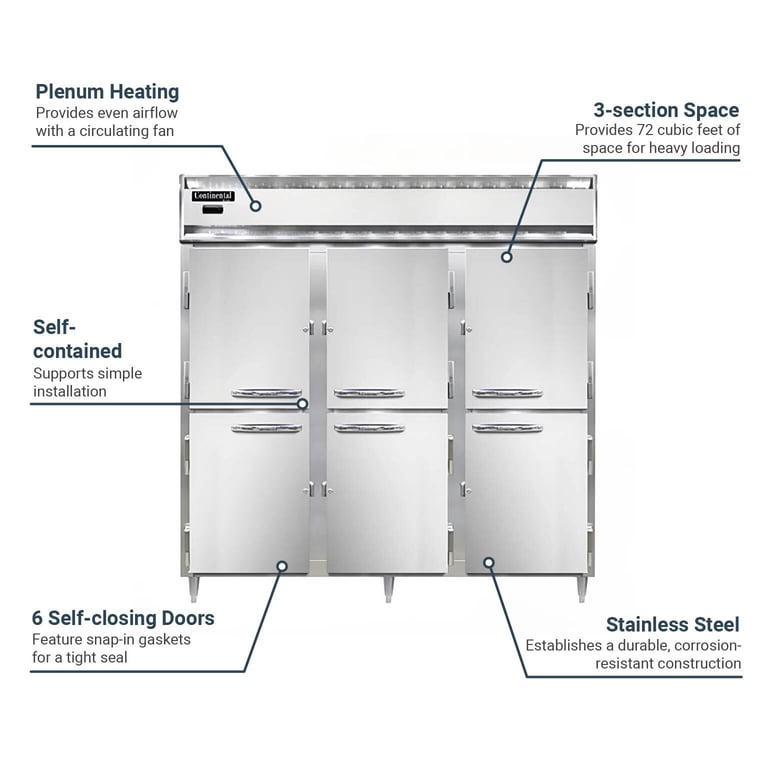

The Continental DL3W-HD heated cabinet’s external control panel has an adjustable temperature range between 90 and 180 degrees Fahrenheit. Its digital display with a high-low alarm simplifies monitoring the cabinet’s conditions. For temperature consistency, the cabinet features stainless steel base heaters, and the inner panels are insulated with 3-inch-thick polyurethane. For even air distribution, the plenum design has a circulating fan; the unit also includes unique airflow distribution ducts. This heating system is fully top mounted for simple maintenance.
For high-volume storage, the Continental DL3W-HD full-height heated cabinet has a 72-cubic-foot space, nine chrome-plated shelves, and heavy-duty pilaster strips. To pair with the pilaster strips, there’s a nine tray-slide capacity per top section, and a six tray-slide capacity per bottom section. The front is made of stainless steel, and the end panels and interior are made of aluminum for durability. The cabinet has six half-height, self-closing doors with magnetic door gaskets to keep in hot air, while the cylinder locks help prevent tampering and theft.
Product Details
- Designer Line series
- Net capacity: 72 cu. ft.
- 9 chrome-plated steel shelves
- Heavy-duty pilaster strips
- 9 tray-slide capacity (per top section)
- 6 tray-slide capacity (per bottom section)
- Stainless steel front
- Aluminum end panels and interior
- 3-in. polyurethane insulation
- Automatic cabinet lighting
6 Half-height Doors
- Lift-off, cam-action hinges
- Self-closing
- Santoprene™ magnetic snap-in gaskets
- Cylinder locks
- Polished workflow chrome handles
Heating System
- Top mounted
- Self-contained
- Circulating fan
- Airflow distribution ducts
- Stainless steel strip heaters
- Temperature holding range: 90-180 degrees F
- Electronic controller
- Display with high/low alarm
Dimensions & Utilities
- Door: 193/8 in. W x 271/2 in. H
- Overall: 78 in. W x 353/8 in. D x 831/4 in. H
- 3,000 W, 13.9 A
- 208-230 V/60 Hz/1 ph, hardwired
Product Features
*Free shipping on Continental DL3W-HD within the 48 contiguous states.
From The Manufacturer
Designer Line Heated Cabinet, reach-in, three-section, 72 cu. ft. capacity, (3) shelves per section, aluminum exterior & interior, stainless steel front & doors, standard depth cabinet, narrow half-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF
*Image may not depict product color, inclusions or accessories.
Continental DL3W-HD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Continental |
| Application | Heat Only |
| Construction | Aluminum |
| Control Location | Top |
| Controls | Digital |
| Depth (in) | 35.38 |
| Door Design | Half |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| kW | 2.25 |
| Load Type | Reach In |
| No. of Doors | 3 |
| Pan Capacity | 45 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 3 |
| Series | Designer Line |
| Size | Full Height |
| Slide Type | Shelves |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor |
| Width (in) | 78 |
| Weight | 650.00 |
