Continental DL3WE-SS-PT-HD Full Height Insulated Mobile Heated Cabinet w/ (45) Pan Capacity, 208-230v/1ph
$22,650.23 /Each
Login or enter your email to be instantly sent the price!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Continental DL3WE-SS-PT-HD Description

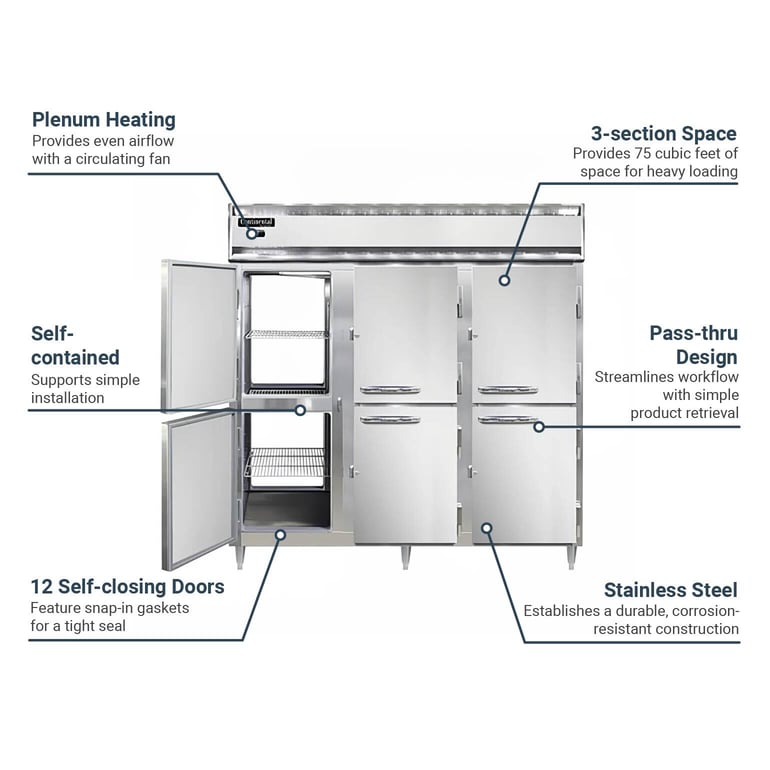

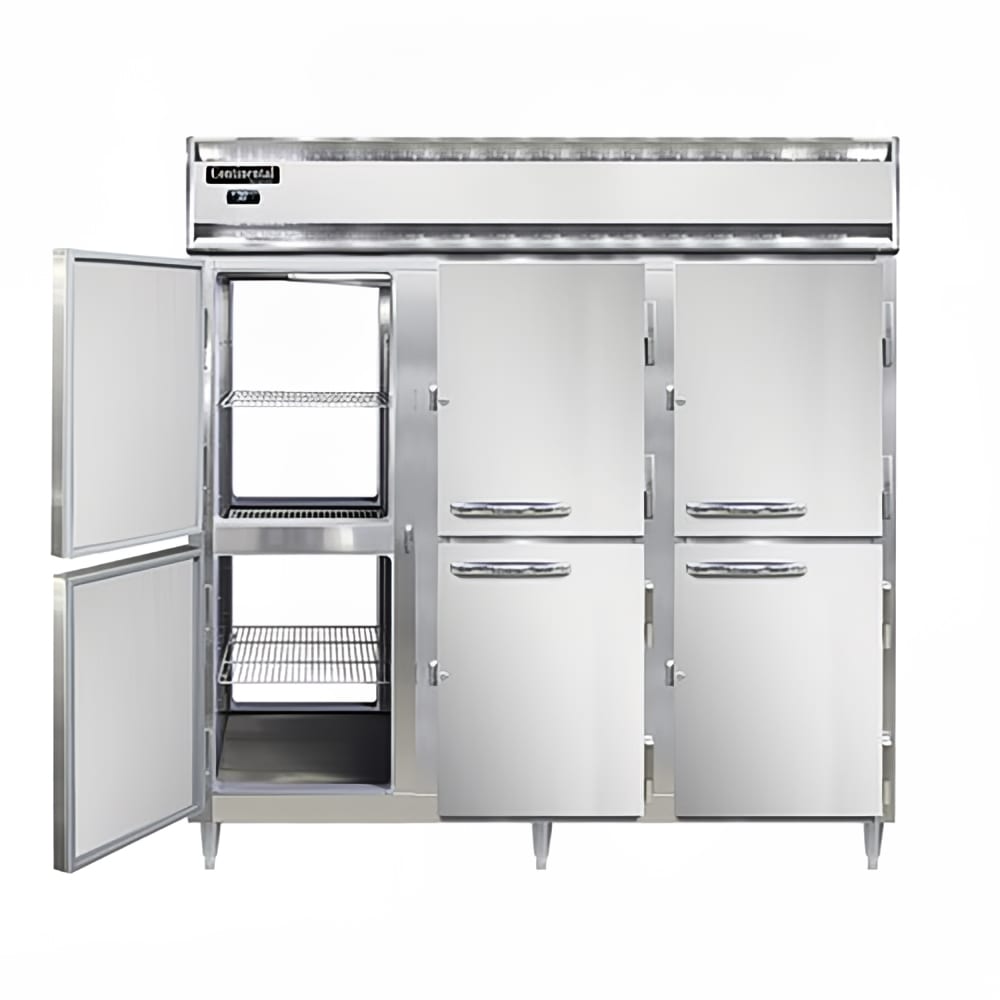

There are 12 half-height doors on the Continental DL3WE-SS-PT-HD full-height insulated mobile heated cabinet. Its 75-cubic-foot cabinet space holds nine chrome-plated steel shelves, which feature heavy-duty pilaster strips. Once set up, the unit has a 45-pan capacity, and the 3-inch-thick polyurethane insulation between the paneling maintains consistent temperatures as the cabinet is accessed. The exterior and interior are made of corrosion-resistant, sturdy stainless steel. To keep it level for optimal cooling and breathability, it sits on 6-inch stainless steel legs.
This Continental DL3WE-SS-PT-HD heated cabinet’s heating system is top mounted for accessible maintenance. Its plenum design features a circulating fan, and its unique air distribution ducts promote even airflow. Within the cabinet are stainless steel strip heaters, which maintain consistent temperatures between 90 and 180 degrees Fahrenheit. For monitoring, the unit is equipped with an electronic controller with a digital display and high-low alarm.
Product Details
- From the Designer Line series
- 75-cu.-ft. space
- 9 chrome-plated steel shelves
- Durable, heavy-duty pilaster strips
- 45-pan capacity
- Pass thru
- Stainless steel exterior and interior
- 3-in. polyurethane foam insulation
- Automatic interior lighting
- 6-in. stainless steel legs
12 Half-height Doors
- Self-closing hinges
- Santoprene™ door gaskets
- Cylinder lock per door
- Smooth and polished chrome handles
- Solid stainless steel
Self-contained Heating System
- Top-mounted location
- Plenum with circulating fan
- Unique airflow distribution ducts
- Stainless steel strip heaters
- Temperature holding range: 90-180 degrees F
- Electronic controller
- Display with high/low alarm
Dimensions & Utilities
- Doors: 217/8 in. W x 32 in. D x 271/2 in. H
- Overall: 851/2 in. W x 383/4 in. D x 831/4 in. H
- 3,000 W, 13.9 A
- 208-230 V/60 Hz/1 ph, hardwired
Product Features
*Free shipping on Continental DL3WE-SS-PT-HD within the 48 contiguous states.
From The Manufacturer
Designer Line Heated Cabinet, extra wide pass-thru, three-section, 75 cu. ft. capacity, (3) shelves per section, stainless steel exterior & interior, standard depth, hinged half-doors, electronic control with digital display, hi-low alarm, cETLus, NSF
*Image may not depict product color, inclusions or accessories.
Continental DL3WE-SS-PT-HD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Continental |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Depth (in) | 38.75 |
| Door Design | Half |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| kW | 2.25 |
| Load Type | Pass Thru |
| No. of Doors | 12 |
| Pan Capacity | 45 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 3 |
| Series | Designer Line |
| Size | Full Height |
| Slide Type | Shelves |
| Special Features | Extra Wide |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor |
| Width (in) | 85.5 |
| Weight | 915.00 |
