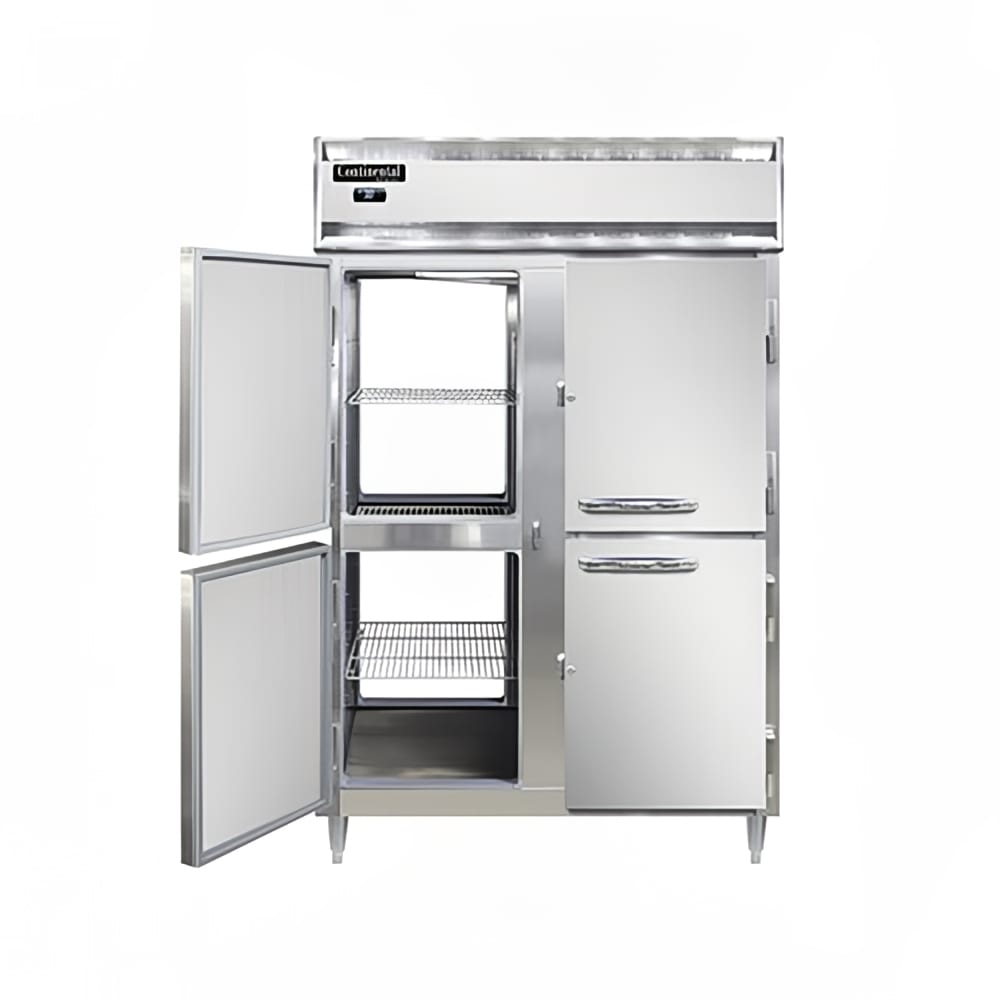

Continental DL2W-SS-PT-HD Full Height Insulated Heated Cabinet w/ (30) Pan Capacity, 208-230v/1ph

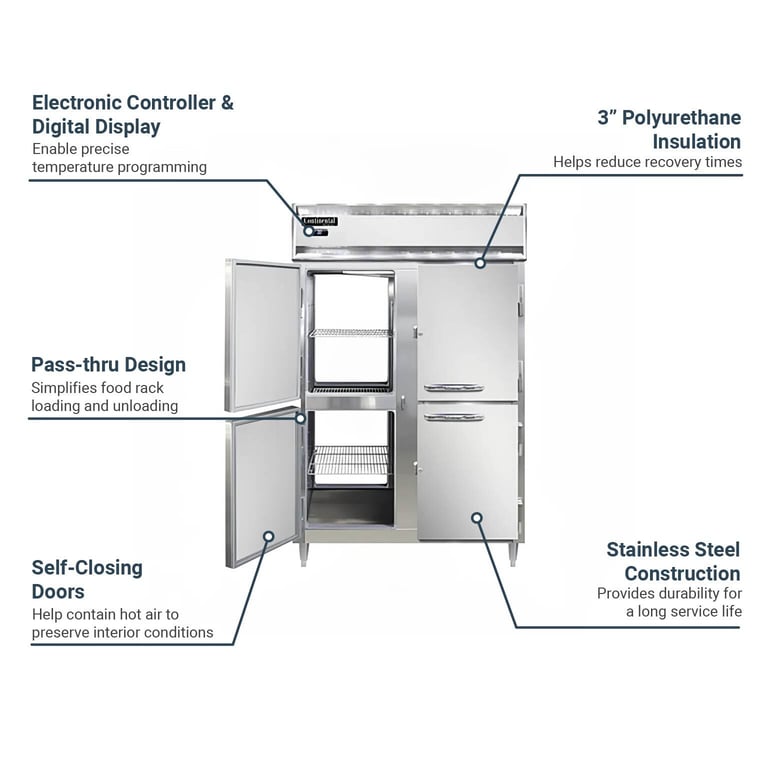

Designed to store hot food items on six adjustable, chrome-plated steel shelves, the Continental DL2W-SS-PT-HD insulated heated cabinet can be a valuable addition to pizzerias, bakeries, or locations that must keep a hot buffet station stocked. From the Designer Line series, this unit has a stainless steel front and aluminum interior and end panels to ensure it can withstand the wear and tear of busy foodservice environments. The cabinet offers 50 cubic feet of internal space and is divided into two sections. This unit has a pass-thru configuration to provide access from both sides of the cabinet.

The interior of the Continental DL2W-SS-PT-HD insulated heated cabinet is accessed through eight half-height, solid, hinged doors that self-close to help contain hot air. Additionally, each door is equipped with a Santoprene™ door gasket to grant a tight seal. To reduce recovery times during frequent use, this unit has 3-inch-thick polyurethane insulation sandwiched between the metal paneling. To provide a clear view of stored inventory, the interior is fitted with interior lighting that operates automatically.

Product Details

• From the Designer Line series
• 2 sections
• Pass-thru unit
• 50-cu.-ft. internal capacity
• Stainless steel interior and exterior
• 3-in. polyurethane insulation
• 8 half-height, solid, hinged doors
• Doors are self-closing
• Cam-action, lift-off hinges
• Santoprene magnetic snap-in door gaskets
• Cylinder door locks
• Polished chrome door handles
• 6 chrome-plated steel shelves
• Heavy-duty pilaster strips
• Automatic interior lighting
• Adjustable stainless steel legs

Warming System

• Self-contained and top-mounted>/li>
• Plenum “plug” system with circulating fan
• Stainless steel strip heaters located in base of interior
• Unique airflow distribution ducts
• Electronic controller with digital display
• High/low temperature alarm
• Temperature holding range: 90-180 degrees F

Dimensions & Utilities

• Door openings: 19³/₈ in. W x 27¹/₂ in. H
• Overall: 52 in. W x 35³/₈ in. D x 83¹/₄ in. H
• 10.6 A, 2.25 kW
• 208-230 V/60 Hz/1 ph (cord and plug not included)

Product Features

*Free shipping on Continental DL2W-SS-PT-HD within the 48 contiguous states.

From The Manufacturer

Designer Line Heated Cabinet, pass-thru, two-section, 50 cu.ft. capacity, (3) shelves per section, stainless steel exterior & interior, standard depth cabinet, narrow half-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor

Continental DL2W-SS-PT-HD Specifications

Documents

Spec Sheet

Warranty

Manual
