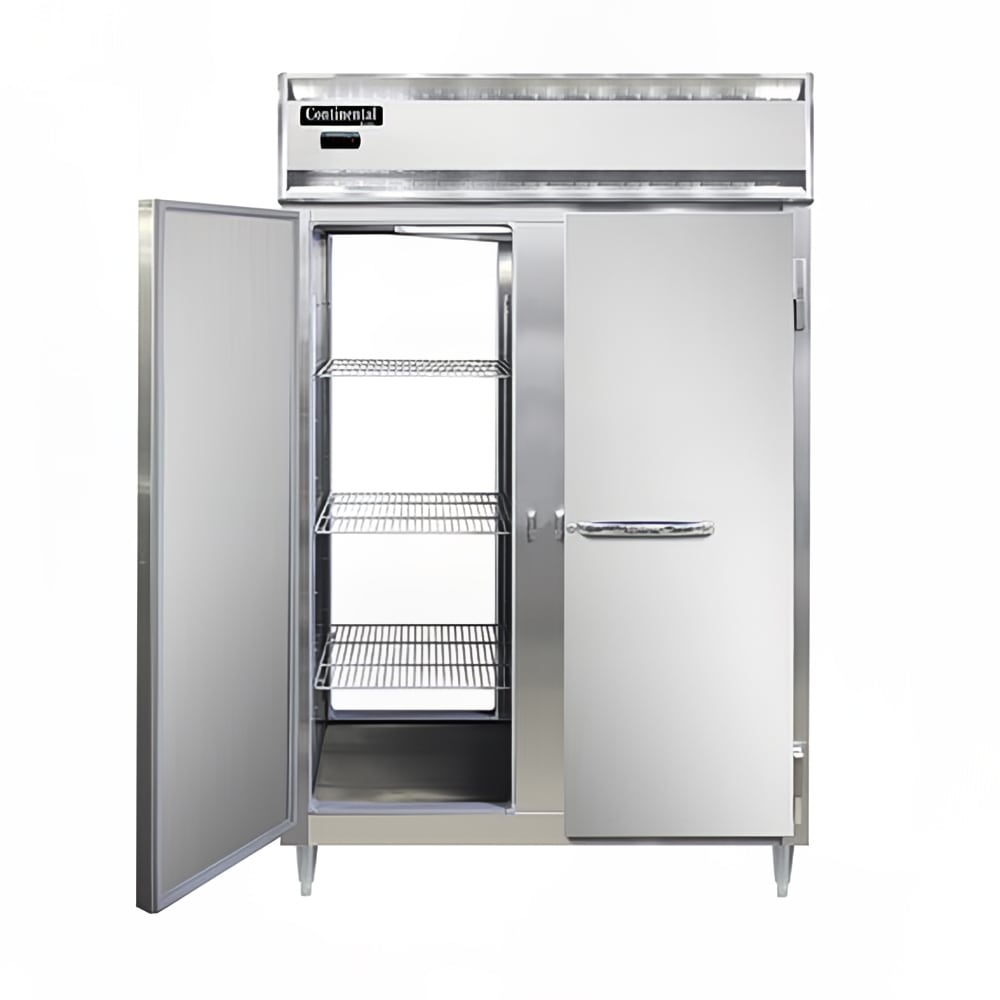

Continental DL2W-SS-PT Full Height Insulated Mobile Heated Cabinet w/ (38) Pan Capacity, 208-230v/1ph

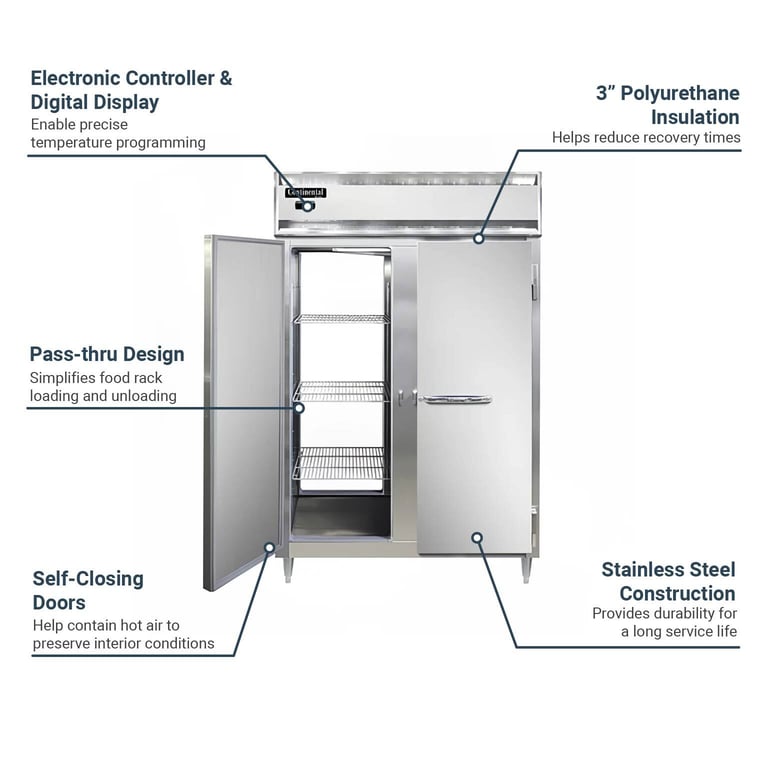

Featuring a pass-thru design, the Continental DL2W-SS-PT heated cabinet is a good choice for placement in a central kitchen location, as it enables both front- and back-of-house staff to access the cabinet simultaneously. The cabinet spans 50 cubic feet and is separated into two sections, each of which offers three adjustable, chrome-plated steel shelves. For various storage configurations, the shelves can be adjusted using the heavy-duty pilaster strips. Each section is accessed through two solid, hinged doors on the front and back side.

With a temperature holding range of 90 to 180 degrees Fahrenheit, the Continental DL2W-SS-PT warmer is designed to keep food items warm until needed. This unit has a self-contained, top-mounted plenum heating system that uses a circulating fan and stainless steel strip heaters to maintain set temperatures. Temperatures are set using the electronic controls and digital display located on the top-left side of the front of the unit. To contain hot air during use, this unit’s doors are self-closing and have Santoprene™ magnetic snap-in door gaskets that create an airtight seal.

Product Details

• From the Designer Line series
• 2 sections
• Pass-thru configuration
• 50-cu.-ft. interior capacity
• Stainless steel interior and exterior
• 3-in. polyurethane insulation
• 4 full-height, solid, hinged doors
• Self-closing design
• Cam-action, lift-off hinges
• Santoprene magnetic snap-in door gaskets
• Cylinder door locks
• Polished chrome door handles
• 6 chrome-plated steel shelves
• Heavy-duty pilaster strips
• Automatic interior lighting
• Adjustable 6-in. stainless steel legs

Warming System

• Self-contained
• Top-mounted design
• Plenum “plug” system with circulating fan
• Stainless steel strip heaters located in base of interior
• Unique airflow distribution ducts
• Electronic controller with digital display
• High/low alarm
• Temperature holding range: 90-180 degrees F

Dimensions & Utilities

• Door openings: 19³/₈ in. W x 58⁵/₈ in. H
• Overall: 52 in. W x 35³/₈ in. D x 83¹/₄ in. H
• 10.6 A, 2.25 kW
• 208-230 V/60 Hz/1 ph (cord and plug not included)

Product Features

*Free shipping on Continental DL2W-SS-PT within the 48 contiguous states.

From The Manufacturer

Designer Line Heated Cabinet, pass-thru, two-section, 50 cu.ft. capacity, (3) shelves per section, stainless steel exterior & interior, standard depth cabinet, narrow full-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF, Made in USA, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor
