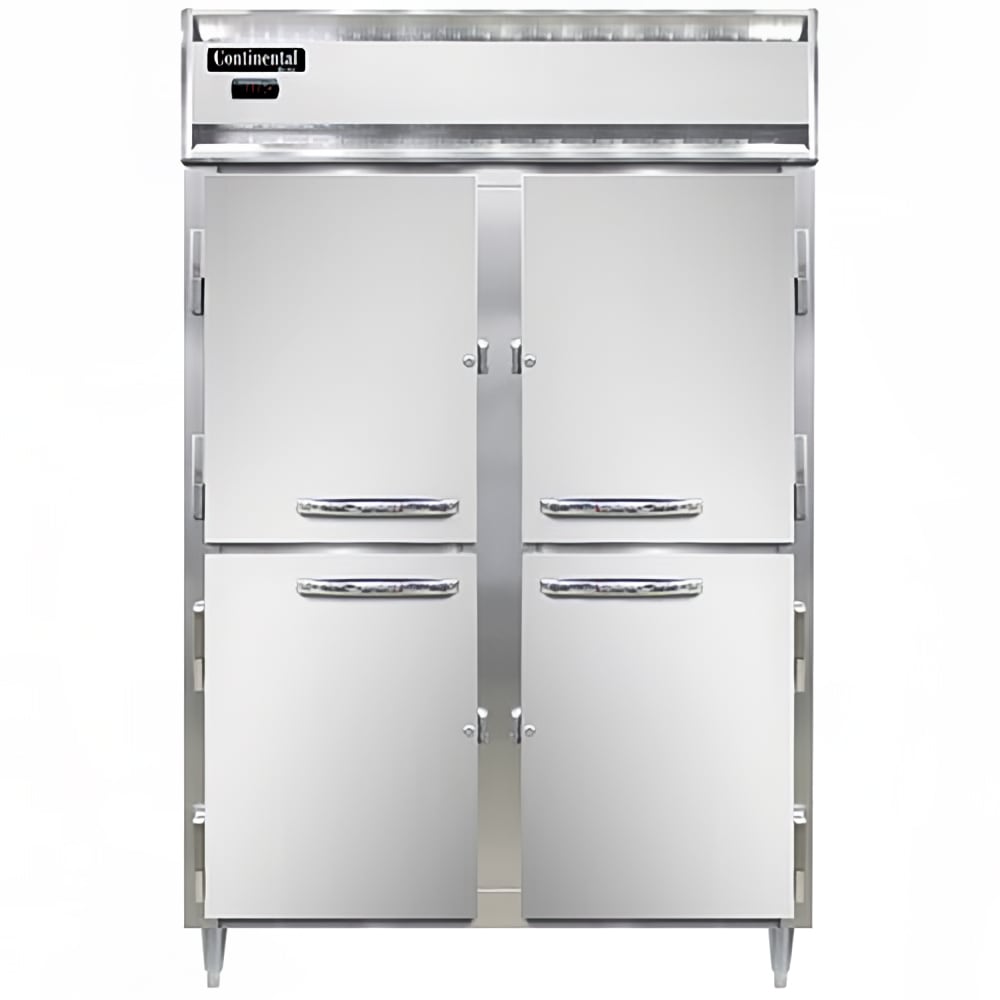

Continental DL2W-HD Full Height Insulated Heated Cabinet w/ (30) Pan Capacity, 208-230v/1ph

To provide easy access to hot food storage, the Continental DL2W-HD insulated heated cabinet has a reach-in configuration with two solid, hinged doors. To withstand the wear and tear of busy foodservice environments, this unit has a stainless steel front and aluminum interior and end panels. The interior spans 50 cubic feet and is fitted with six chrome-plated steel shelves that can be adjusted via the heavy-duty pilaster strips. The cabinet has 3 inches of polyurethane insulation to help maintain set temperatures.

To keep food items warm until needed, the Continental DL2W-HD heated cabinet can maintain temperatures between 90 and 180 degrees Fahrenheit. The self-contained and top-mounted warming system has a plenum “plug” feature with a circulating fan. It is supported by stainless steel strip heaters in the base of the interior. To program desired temperatures, staff must use the electronic controls and digital display located on the top-left of the front of this unit. To monitor interior conditions, this warmer has a high/low temperature alarm that sounds if the cabinet exceeds or drops below the set temperature.

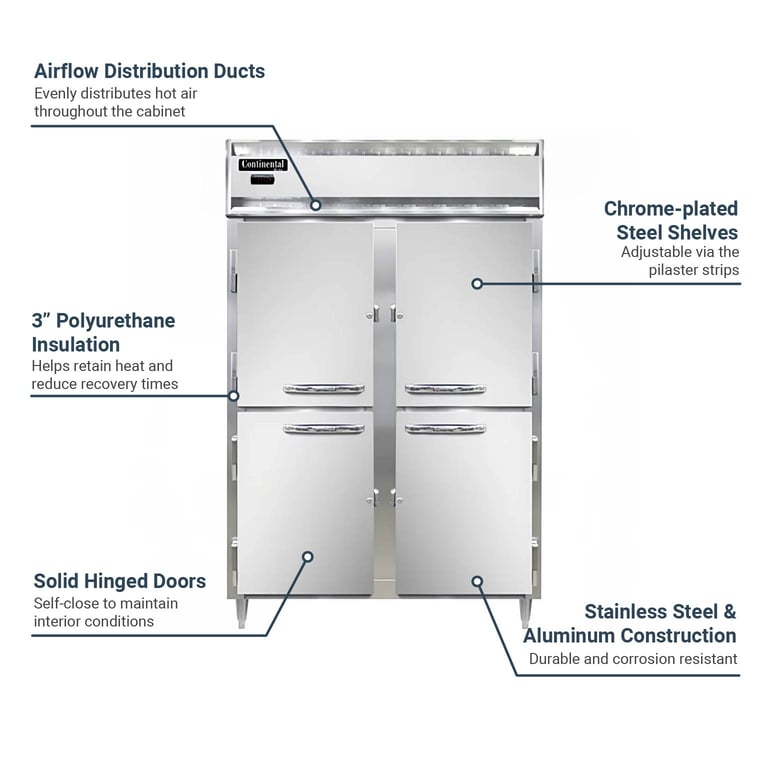

Product Details

• Designer Line series
• 2 sections
• Reach-in design
• 50-cu.-ft. internal space
• Stainless steel front
• Aluminum interior and end panels
• 3-in. polyurethane insulation
• 4 solid, half-height, hinged doors
• Cam-action, lift-off hinges
• Santoprene&trade: magnetic door gaskets
• Self-closing design
• Polished chrome door handles
• Cylinder locks
• 6 chrome-plated steel shelves
• Heavy-duty pilaster strips
• Automatic interior lighting
• Adjustable, 6-in. stainless steel legs

Plug Heating System

• Self-contained and top mounted
• Circulating fan
• Stainless steel strip heaters in the base of the interior
• Unique airflow distribution ducts
• Electronic controller with a digital display
• High/low temperature alarm
• Temperature holding range: 90-180 degrees F

Dimensions & Utilities

• Door openings: (4) 19³/₈ in. W x 27¹/₂ in. H
• Interior: 29 in. D x 58¹/₈ in. H
• Overall: 52 in. W x 35³/₈ in. D x 83¹/₄ in. H
• 10.6 A, 2.25 kW
• 208/230 V/60 Hz/1 ph, (cord and plug not included)

Product Features

*Free shipping on Continental DL2W-HD within the 48 contiguous states.

From The Manufacturer

Designer Line Heated Cabinet, reach-in, two-section, 50 cu.ft. capacity, (3) shelves per section, aluminum exterior & interior, stainless steel front & doors, standard depth cabinet, narrow half-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor

Continental DL2W-HD Specifications

Documents

Spec Sheet

Warranty

Manual
