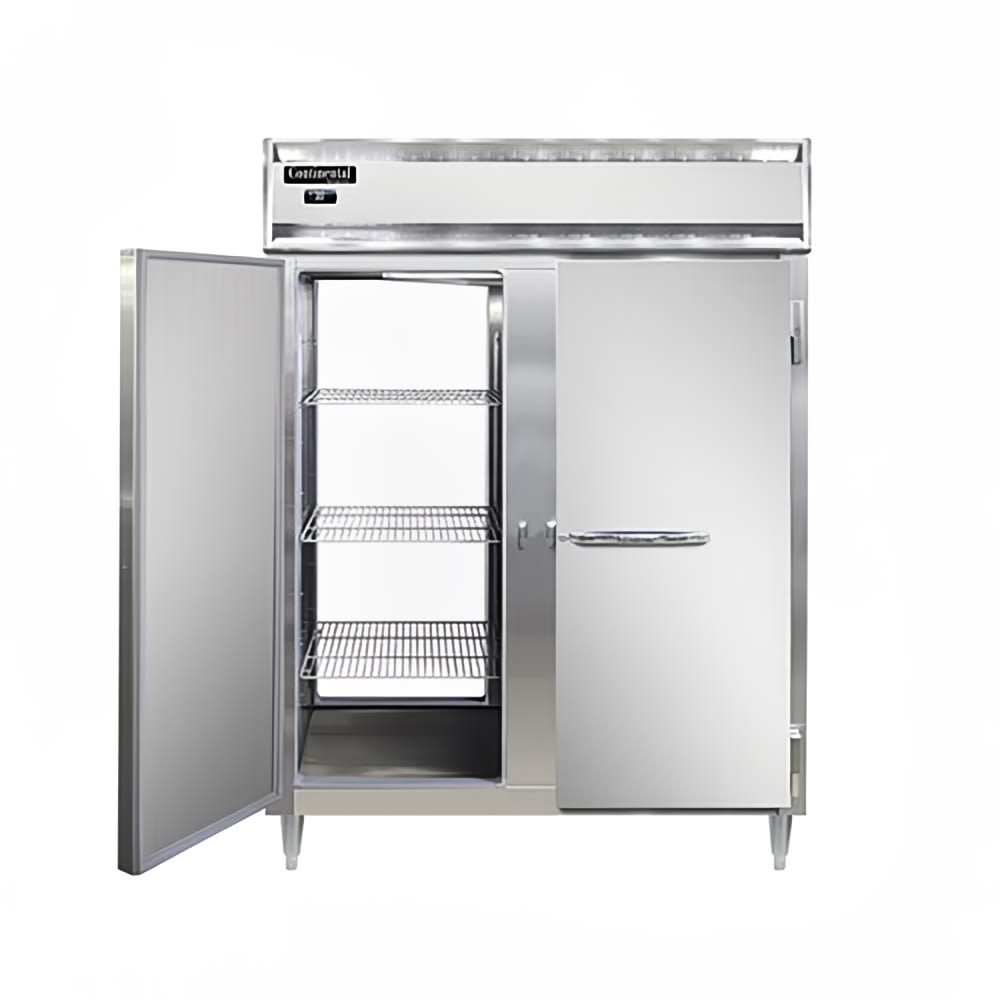

Continental DL2WE-SA-PT Full Height Insulated Mobile Heated Cabinet w/ (38) Pan Capacity, 208-230v/1ph

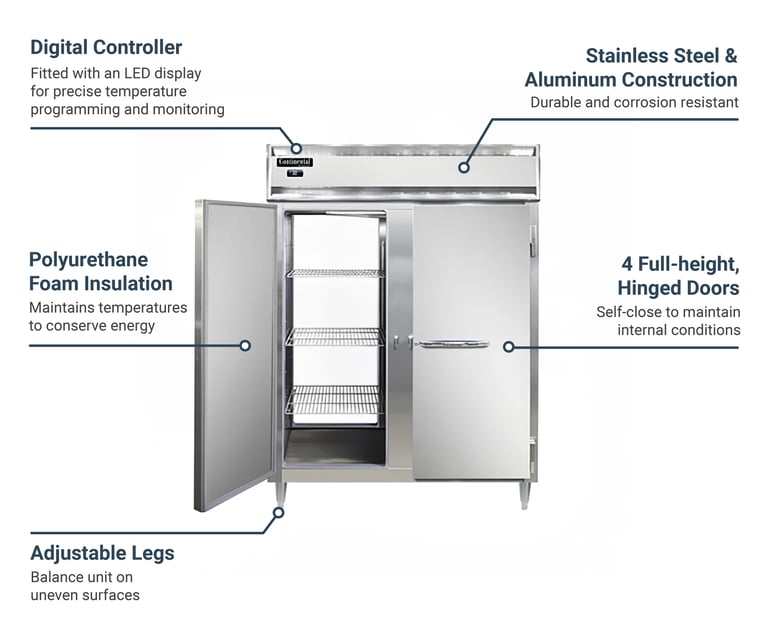

Featuring an extra-wide, pass-thru design, the Continental DL2WE-SA-PT warmer is ideal for center placement in a kitchen area, as it can provide both kitchen and waitstaff access to the cabinet and can keep food items warm until needed. The interior is constructed of aluminum, while the exterior is built of corrosion-resistant stainless steel. Each of the two sections has three chrome-plated steel shelves, which can be adjusted to fit variously sized items using the pilaster strips. The cabinet can be accessed from both sides through the four full-height, solid, hinged doors. The doors self-close to contain hot air and have Santoprene™ magnetic snap-in door gaskets to establish an airtight seal.

The Continental DL2WE-SA-PT heated cabinet’s warming system relies on a circulating fan and stainless steel strip heaters in the base of the interior to maintain temperatures between 90 and 180 degrees Fahrenheit. This unit is managed via the electronic controller and digital display, which is equipped with a high/low alarm to avoid unwanted temperature changes. To keep integral components away from floor debris, the heating system is mounted to the top of the cabinet, and to provide a clear view of stored items when the doors are opened, the interior is fitted with automatic lighting. The cabinet has 3 inches of polyurethane insulation sandwiched between its metal panels to help preserve user-set temperatures.

Product Details

• Designer Line series
• 2 sections
• 52-cu.-ft. interior capacity
• Extra-wide, pass-thru configuration
• Stainless steel exterior
• Aluminum interior
• 3-in. polyurethane insulation
• 19-tray capacity
• 4 full-height, solid, hinged doors
• Self-closing design
• Cam-action, lift-off hinges
• Santoprene magnetic door gaskets
• Cylinder door locks
• Smooth, polished chrome door handles
• 6 chrome-plated steel shelves
• Heavy-duty pilaster strips
• Automatic interior lighting
• 6-in. adjustable stainless steel legs

Heating System

• Self-contained
• Top mounted
• Plenum “plug” with circulating fan
• Unique airflow distribution ducts
• Stainless steel strip heaters
• Electronic controller with digital display
• High/low alarm
• Temperature holding range: 90-180 degrees F

Dimensions & Utilities

• Door opening: 21⁷/₈ in. W x 58⁵/₈ in. H
• Interior: 32 in. D x 58¹/₈ in. H
• Overall: 57 in. W x 38³/₄ in. D x 83¹/₄ in. H
• 10.6 A, 2.25 kW
• 208-230 V/60 Hz/1 ph (cord and plug not included)

Product Features

*Free shipping on Continental DL2WE-SA-PT within the 48 contiguous states.

From The Manufacturer

Designer Line Heated Cabinet, extra wide pass-thru, two-section, stainless steel exterior, aluminum interior, standard depth, hinged doors, electronic control with digital display, hi-low alarm, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor

Continental DL2WE-SA-PT Specifications

Documents

Spec Sheet

Warranty

Manual
