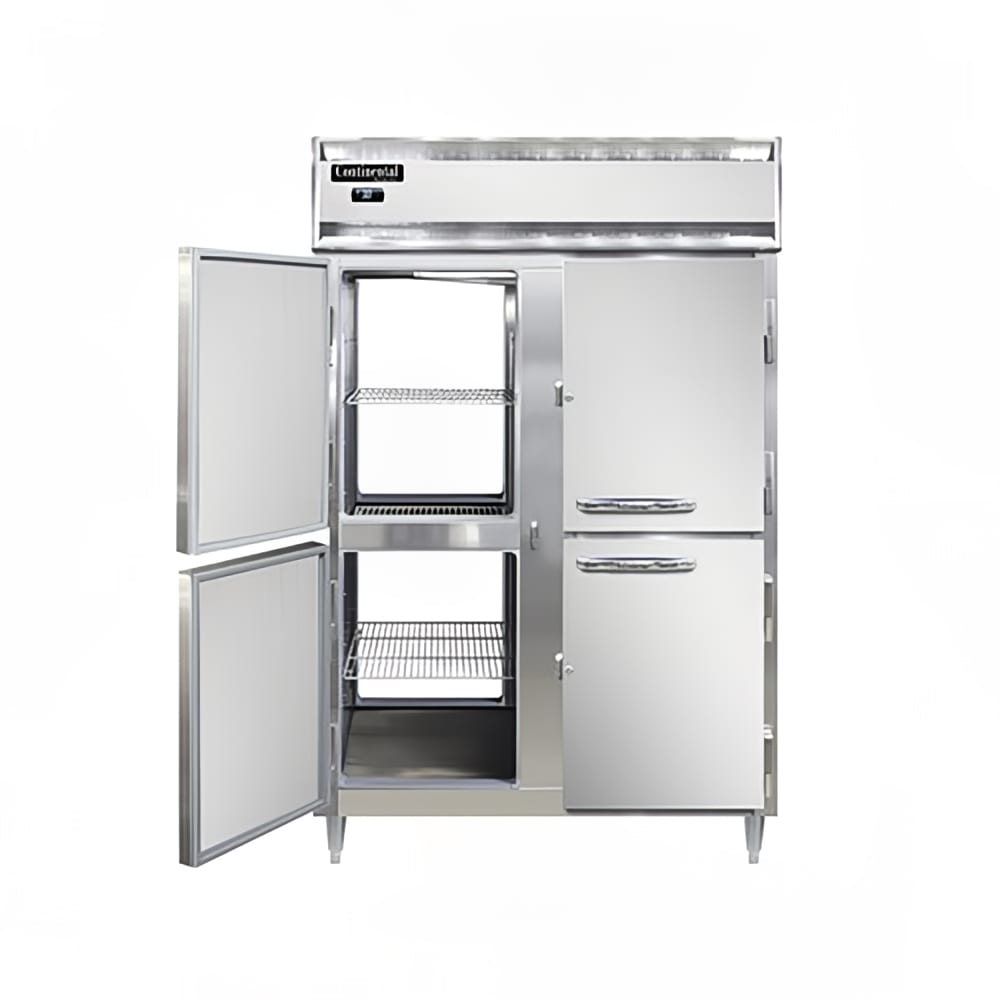

Continental DL2RW-PT-HD Full Height Insulated Refrigerator/Heated Cabinet w/ (37) Pan Capacity, 115v

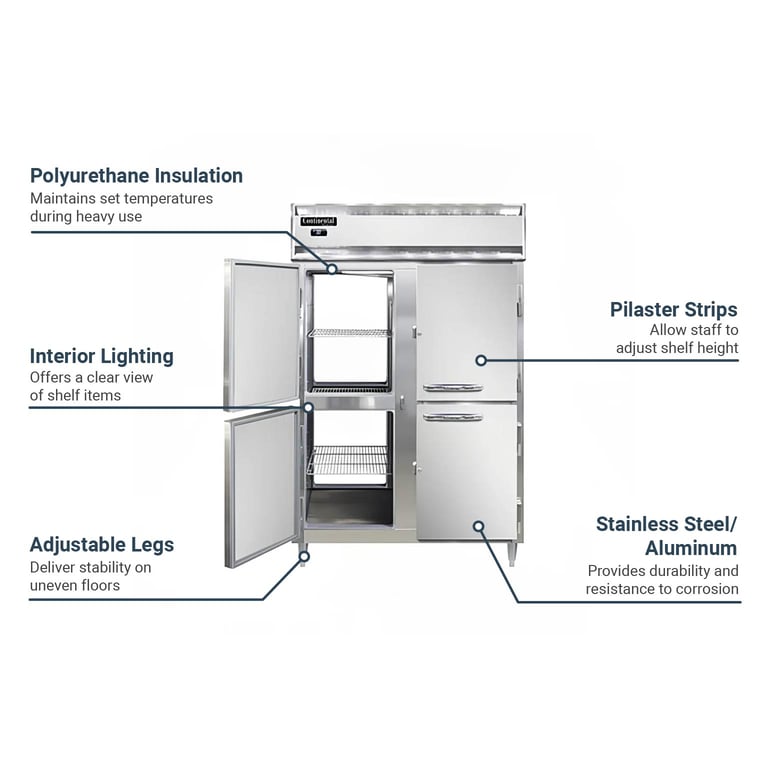

To provide versatile storage for both refrigerated and hot food items, the Continental DL2RW-PT-HD insulated refrigerator/insulated cabinet has a refrigerated section and a warmer section, and each has independent electronic controls and digital displays to permit precise temperature programming and monitoring. Each section offers 21 cubic feet of interior space and three adjustable shelves for item storage. This unit has a pass-thru design ideal for center placement in a kitchen workspace to provide both kitchen and wait staff access to the interior.

The interior of the Continental DL2RW-PT-HD insulated refrigerator/insulated cabinet is accessed from both sides through the eight half-height, hinged doors. To help retain interior conditions during heavy use, the doors have a self-closing design, and the cabinet is insulated with 3 inches of polyurethane insulation between the metal paneling. The warmer section has a plenum heating system with a circulating fan to evenly distribute hot air throughout the cabinet. The refrigerated section relies on air distribution ducts and R134A refrigerant to achieve user-set temperatures.

Product Details

• Designer Line series
• 2 sections
• 21/21-cu.-ft. capacity
• Refrigerator (left)/warmer (right) dual-temperature unit
• Sections can be changed at time of order
• Pass-thru design
• 22-tray capacity (refrigerator)
• 15-tray capacity (warmer)
• Stainless steel front
• Aluminum end and interior panels
• 3-in. polyurethane foam insulation
• Automatic interior lights
• 3 epoxy-coated steel shelves (refrigerator)
• 3 chrome-plated steel shelves (warmer)
• Heavy-duty pilaster strips
• 6-in. adjustable stainless steel legs

8 Half-height, Hinged Doors

• Solid, narrow configuration
• Polished chrome door handles
• Cam-action, lift-off hinges
• Self-closing design
• Santoprene™ magnetic snap-in door gaskets
• Cylinder door locks

Heating System

• Separate and self-contained
• Plenum “plug” system
• Circulating fan
• Stainless steel strip heaters
• Electronic controller with a digital display
• High/low temperature alert
• Temperature holding range: 90-180 degrees F

Refrigeration System

• Self-contained and top mounted
• Environmentally friendly R134A refrigerant
• Unique airflow distribution ducts
• Automatic, hot gas condensate evaporator
• Electronic controller with digital display
• High/low temperature alert

Dimensions & Utilities

• Door opening: 19³/₈ in. W x 27¹/₂ in. H
• Interior: 32 in. D x 58¹/₈ in. H
• Overall: 52 in. W x 38³/₄ in. D x 83¹/₄ in. H
• 5.5/7.2 A (refrigerator/freezer), ¹/₄ HP
• 115/208-230 V (refrigerator/warmer)/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Continental DL2RW-PT-HD within the 48 contiguous states.

From The Manufacturer

Designer Line Refrigerator/Heated Cabinet, pass-thru, two-section, self-contained refrigeration, aluminum exterior & interior, stainless steel front & doors, standard depth cabinet, narrow half-height doors, electronic control with digital display, high-low alarm, 1/4 HP (refrigerator), cETLus, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor
