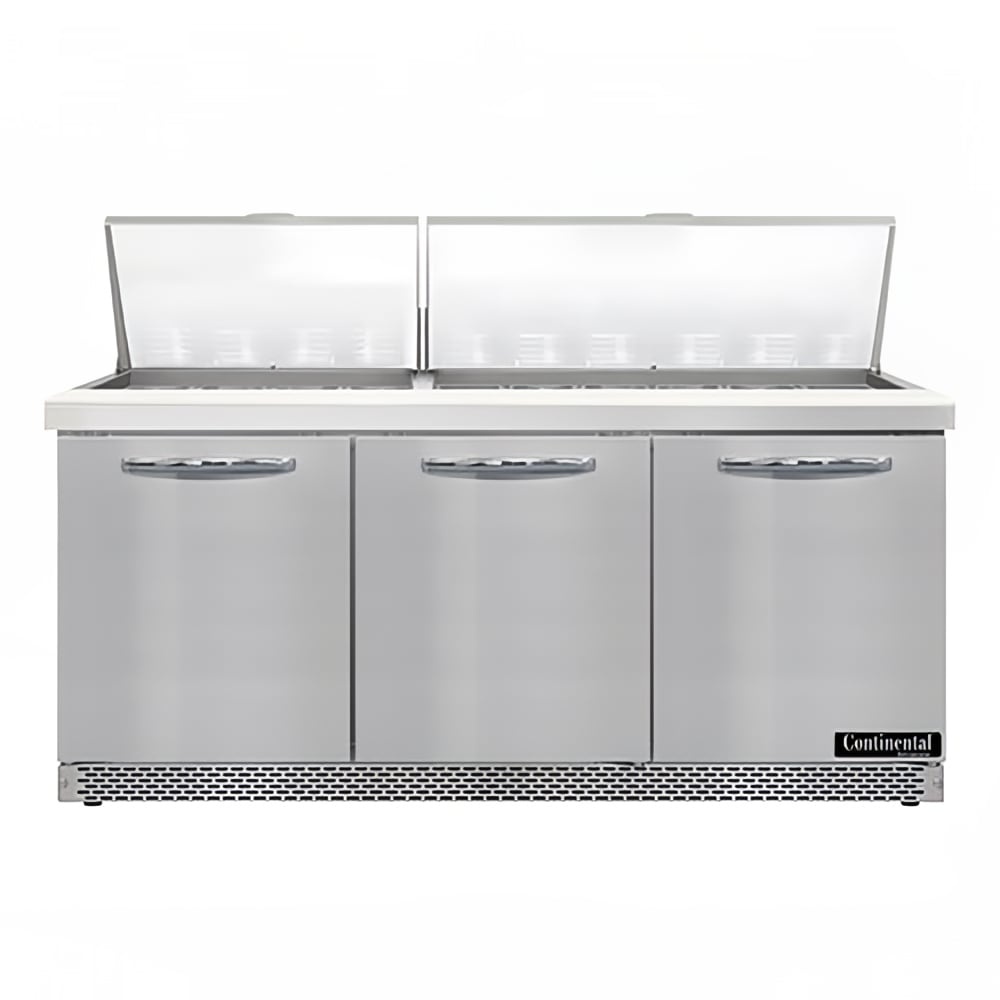

Continental D72N30M-FB 72" Designer Line Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

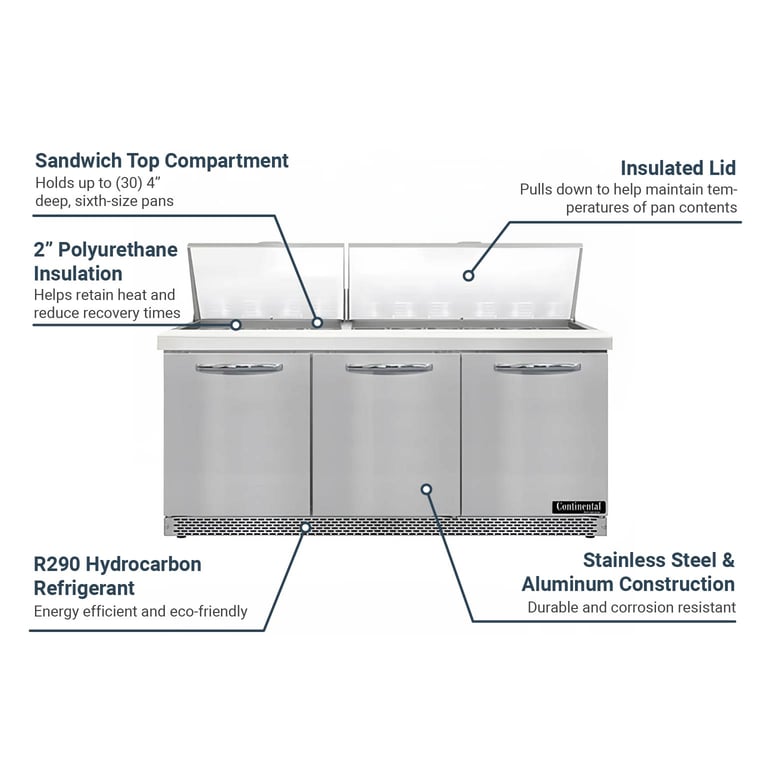

Operators can use the (30) 4-inch-deep, recessed food pans included with the D72N30M-FB sandwich prep table to store ready-to-use ingredients such as sauces, cheese, deli meats, vegetables and similar items. To ease maintenance between shifts, this table has a removable tub installed below the pans to catch food debris. To keep stored food items fresh when not in use, this unit has a pull-down insulated lid. To provide a versatile surface for preparing menu items, this unit has an 8-inch-deep, full-length nylon cutting board in front of the pans. This prep table utilizes eco-friendly R290 refrigerant to maintain a temperature holding range between 33 and 41 degrees Fahrenheit.

To provide a convenient, easy-to-reach cabinet for storing cold food products, the Continental D72N30M-FB sandwich prep table has a refrigerated base that spans 20.6 cubic feet and is separated into three sections. The interior is constructed of durable aluminum and is fitted with three epoxy-coated steel shelves. The interior is accessed through three solid, spring-loaded doors that self-close to reduce hot air loss during frequent use. To provide an airtight closure, this unit has a Santoprene™ magnetic door gaskets. To provide a comfortable grip, this unit has polished chrome workflow handles that do not protrude from the cabinet.

Product Details

• From the Designer Line series
• 3 sections
• 20.6-cu.-ft. interior
• Sandwich unit with refrigerated base
• Holds (30) 4-inch-deep, sixth-size recessed pans
• Stainless steel front
• Aluminum interior and end panels
• 2-in. polyurethane foam insulation
• 8-in.-deep full length nylon cutting board
• Insulated lid
• Removable interior tub below pans
• 3 solid, field-reversible, spring-loaded doors
• Self-closing door feature
• Santoprene magnetic snap-in door gaskets
• Smooth, polished chrome door handles
• 3 epoxy-coated steel shelves
• Enclosed, vented and removable case back
• (4) 3³/₄-in. casters

Self-contained Refrigeration System

• Back mounted compressor
• Automatic, hot gas condensate evaporator
• Off-cycle defrost
• Non-corrosive, plasticized fin evaporator coil
• Expansion valve system
• Electronic controller and digital display
• High/low temperature alarm
• R290 refrigerant
• Temperature holding range: 33-41 degrees F

Dimensions & Utilities

• Door openings: (3) 19⁵/₈ in. W x 23⁵/₈ in. H
• Interior: 68 in. W x 26¹/₄ in. H
• Overall: 72 in. W x 35 in. D x 41 in. H
• 6 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Continental D72N30M-FB within the 48 contiguous states.

From The Manufacturer

Designer Line Mighty Top Sandwich Unit, Front Breather, 72"W, three-section, (30) 1/6 size x 4" deep pans with 8" cutting board, (3) field rehingeable doors, stainless steel top, front, sides & interior, electronic control with digital display, hi-low alarm, 3-3/4" casters, rear mounted self-contained refrigeration, automatic hot gas condensate evaporator, R290 hydrocarbon refrigerant, 1/3 HP, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor Parts

Continental D72N30M-FB Specifications

Documents

Spec Sheet

Warranty

Manual
