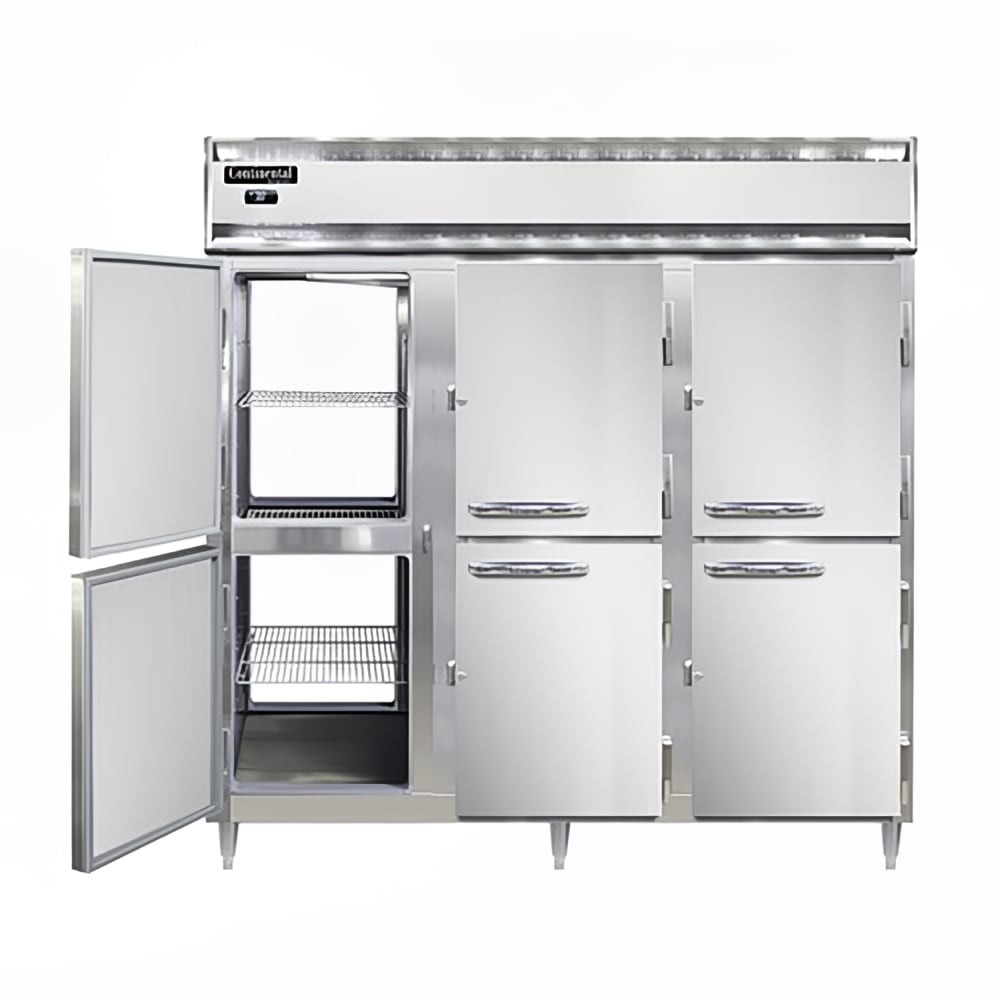

Continental D3RNPTHD 78" Three Section Pass Thru Refrigerator, (12) Left/Right Hinge Solid Doors, Top Compressor, 115v

Ideal for center placement in a kitchen area, the Continental D3RNPTHD pass-thru refrigerator can be accessed simultaneously from both sides by staff to quickly load and deliver food items. This unit has three sections and a total capacity of 72 cubic feet. The interior is made of aluminum to resist corrosion and is fitted with nine epoxy-coated steel shelves that can be adjusted to fit various pan or container sizes. The interior is accessed through 12 hinged, half-height, solid steel doors with polished chrome handles to provide a comfortable grip. To streamline item retrieval, the interior is fitted with LED lighting to illuminate shelf items.

To contain cool conditions, the Continental D3RNPTHD pass-thru refrigerator is fitted with Santoprene™ magnetic snap-in door gaskets. The cabinet is insulated with 3 inches of polyurethane foam between the metal paneling to help improve recovery times during heavy use. Each door has a self-closing design to ensure interior temperatures are not affected if a door is left open. This unit has an operating temperature range between 38 and 40 degrees Fahrenheit and relies on R290 hydrocarbon refrigerant to cool the cabinet.

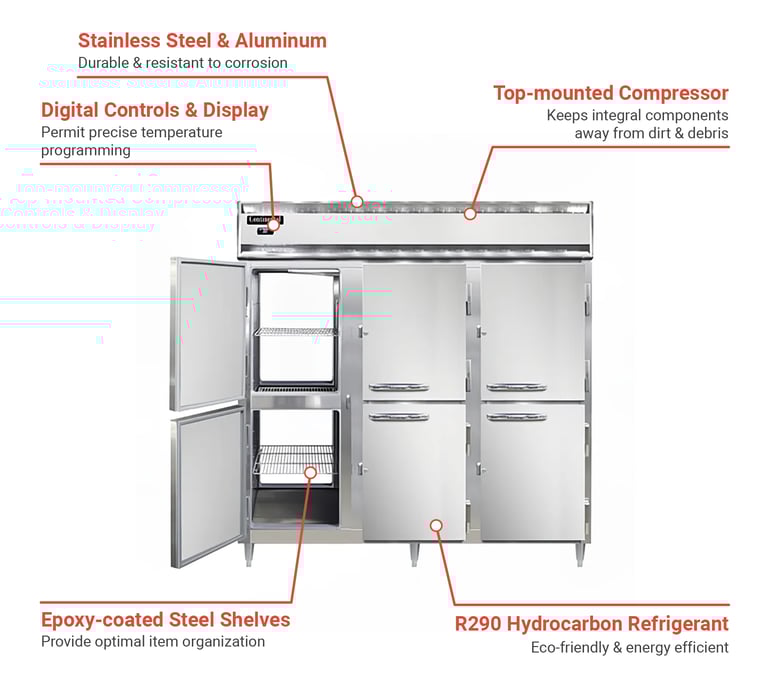

Product Details

• Designer Line series
• 3 sections
• 72-cu.-ft. internal capacity
• Pass-thru configuration
• Stainless steel front
• Aluminum end panels and interior
• 12 hinged, half-height solid steel doors
• Self-closing design
• Cam-action, lift-off hinges
• Santoprene magnetic snap-in door gaskets
• Smooth, polished chrome door handles
• Cylinder locks in each door
• 9 epoxy-coated steel shelves
• Heavy-duty pilaster strips
• Interior LED lighting
• 3-in. polyurethane insulation
• Top and side air distribution ducts
• Digital controls and temperature display
• High/low temperature alert
• (6) 6-in. adjustable stainless steel legs

Refrigeration System

• Self-contained and top-mounted configuration
• R290 hydrocarbon refrigerant
• Temperature holding range: 38-40 degrees F
• Off-cycle defrost
• Automatic, hot gas condensate evaporator
• Expansion valve system
• 4,010 BTU capacity

Dimensions & Utilities

• Door opening: 19³/₈ in. W x 27¹/₂ in. H
• Interior: 32 in. D x 58¹/₈ in. H
• Overall: 78 in. W x 38³/₄ in. D x 83¹/₄ in. H
• 11.6 A, ¹/₂ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Continental D3RNPTHD within the 48 contiguous states.

From The Manufacturer

Designer Line Refrigerator, pass-thru, three-section, self-contained refrigeration, aluminum exterior & interior, stainless steel front, standard depth cabinet, half-height stainless steel doors, cylinder locks, electronic control with digital display, hi-low alarm, 6" stainless steel legs, R290 Hydrocarbon refrigerant, 1/3 HP, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor Parts

Continental D3RNPTHD Specifications

Documents

Spec Sheet

Warranty

Manual
