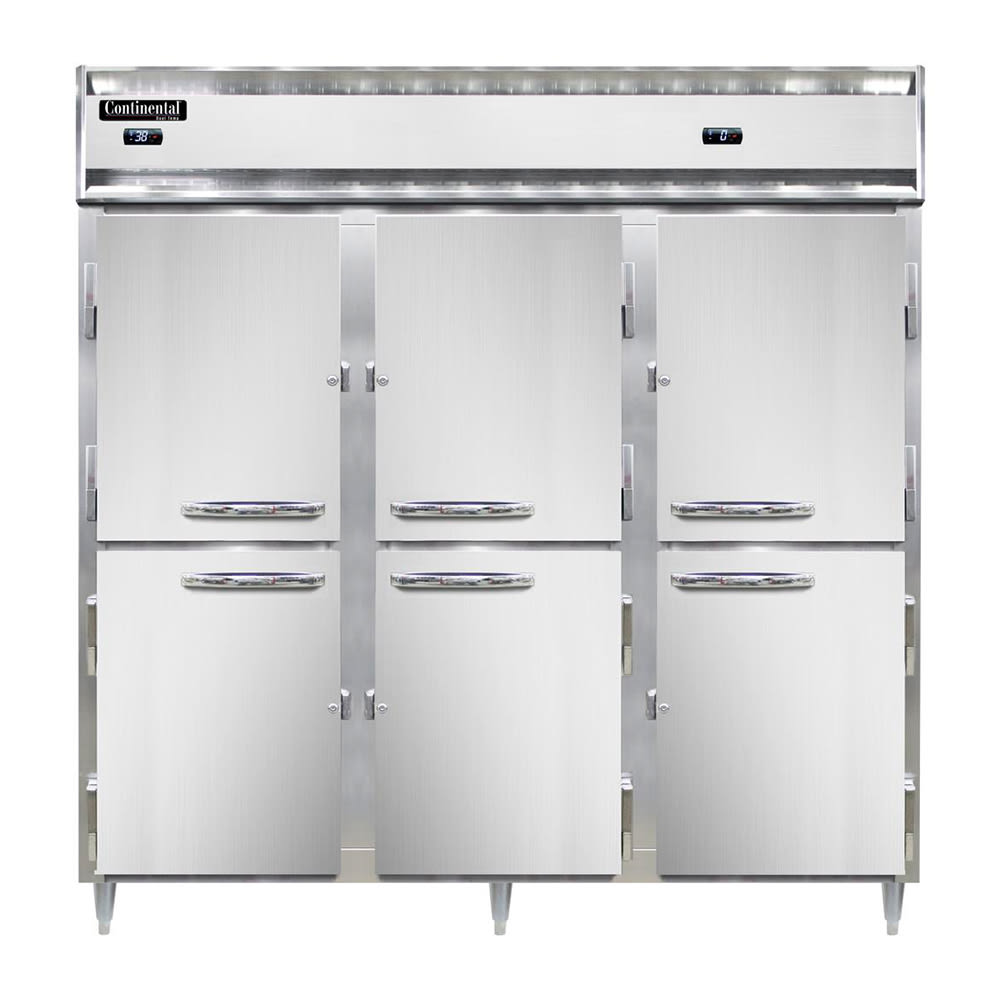

Continental D3RFFNSSHD 78" Designer Line Three Section Commercial Combo Refrigerator Freezer - Solid Doors, Dual Temp, 115v

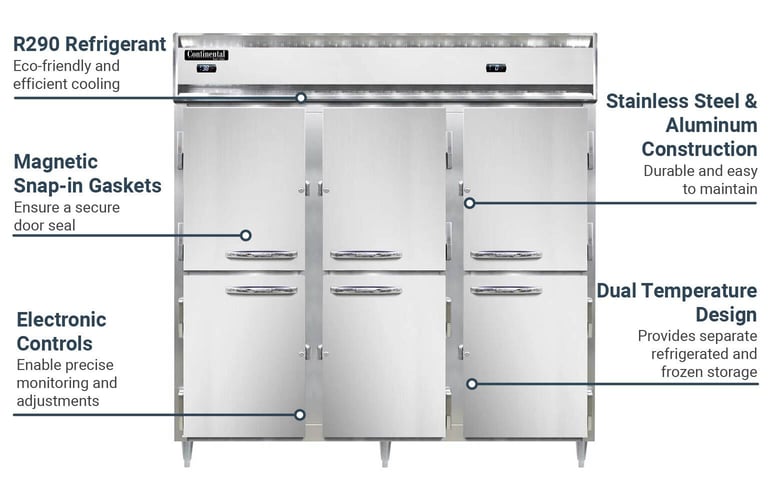

The Continental D3RFFNSSHD dual-temperature cabinet, part of the Designer Line series, combines refrigeration and freezing capabilities in a single, efficient design. This three-section unit features a 48-cubic-foot refrigerator and a 20-cubic-foot freezer, each compartment accessible via six half-height, self-closing, solid doors with cylinder locks for added security. The cabinet’s stainless steel construction ensures durability and corrosion resistance, while the 3-inch foamed-in polyurethane insulation enhances energy efficiency. Nine epoxy-coated steel shelves supported by heavy-duty pilaster strips provide versatile storage, and the adjustable 6-inch stainless steel legs improve stability. LED interior lighting ensures easy visibility throughout the cabinet.

The top-mounted, self-contained refrigeration system of the Continental D3RFFNSSHD dual cabinet uses eco-friendly R290 refrigerant and an expansion valve system for efficient performance. Dual compressors—¹/₄ HP for the refrigerator and 1 HP for the freezer—support dedicated cooling for each compartment. Advanced airflow is maintained with top and side air distribution ducts, while defrost functions are optimized with off-cycle defrost for the refrigerator and automatic electric defrost for the freezer. Electronic controls with a digital display and high-low temperature alarm ensure precision and monitoring, while an automatic hot gas condensate evaporator reduces maintenance.

Product Details

• Designer Line series
• Dual-temperature design
• 3 sections
• 48-cu.-ft. refrigerator and 20-cu.-ft. freezer interiors
• Stainless steel construction
• 3-in. foamed-in polyurethane insulation
• 6 half-height, self-closing, solid doors
• Cylinder locks in each door
• Smooth, polished chrome workflow door handles
• Cam-action, lift-off hinges
• 9 heavy-duty, epoxy-coated steel shelves
• Heavy-duty pilaster strips
• LED interior lighting
• 6-in. adjustable stainless steel legs

Refrigeration System

• Top-mounted
• Self-contained
• Expansion valve system
• Automatic hot gas condensate evaporator
• Off-cycle defrost for refrigerator section
• Automatic electric defrost for freezer section
• Top and side air distribution ducts
• Electronic control with digital display
• High-low temperature alarm
• Eco-safe R290 hydrocarbon refrigerant

Dimensions & Utilities

• 78 in. W x 35³/₄ in. D x 82¹/₄ in. H
• 5.1/8.5 A, ¹/₄/1 HP
• 115 V/60 Hz/1 ph, (2) 10-ft. cords with NEMA 5-15P plugs

Product Features

*Free shipping on Continental D3RFFNSSHD within the 48 contiguous states.

From The Manufacturer

Designer Line Refrigerator/Freezer, reach-in, three-section, self-contained refrigeration, stainless steel exterior & interior, standard depth, (3) half-height solid self-closing doors, cylinder locks, electronic control with digital display, hi-low alarm & hi-low alarm, LED interior light, (9) epoxy-coated steel shelves, R290 Hydrocarbon refrigerant, dual 1/4 & 1 HP, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor Parts

Continental D3RFFNSSHD Specifications

Documents

Spec Sheet

Warranty

Manual
