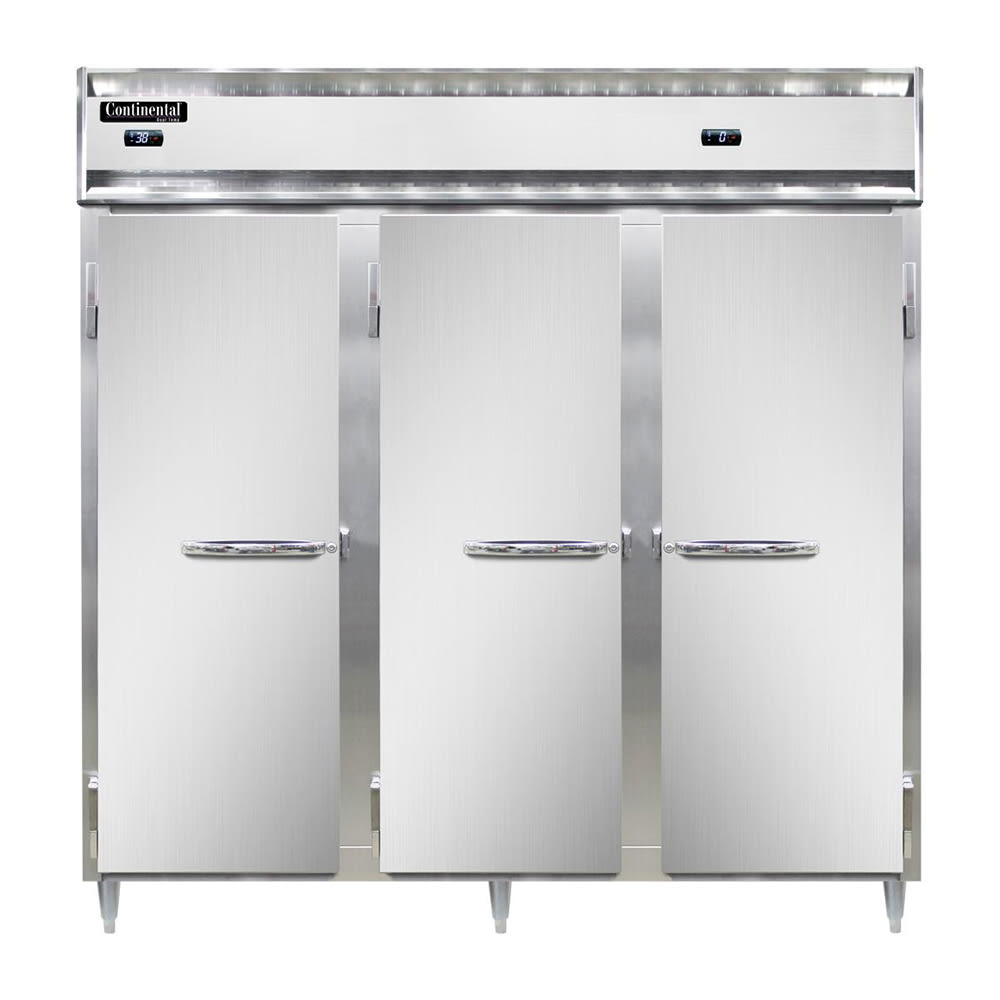

Continental D3RFFNSA 78" Designer Line Three Section Commercial Combo Refrigerator Freezer - Solid Doors, Dual Temp, 115v

A good choice for locations with limited storage space, the Continental D3RFFNSA reach-in refrigerator/freezer has a dual-temperature design that enables users to store refrigerated and frozen items in a single footprint. This unit has three sections, each fitted with three epoxy-coated steel shelves and a solid, hinged steel door. To protect items from theft, each door is fitted with a cylinder lock. The refrigerated section has a temperature holding range between 38 and 40 degrees Fahrenheit, and the freezer section can achieve temperatures between -4 and 0 degrees Fahrenheit.

To ensure set temperatures are maintained, the Continental D3RFFNSA reach-in combo refrigerator/freezer doors have a self-closing design and Santoprene™ magnetic snap-in door gaskets that provide a tight seal when the doors are closed. Additionally, this unit has 3 inches of polyurethane foam between the metal paneling to insulate the cabinet and improve temperature recovery times during heavy use. If the cabinet undergoes an undesired temperature deviation, a high/low alarm will sound to alert staff. Operators must use the electronic controller and digital temperature displays to program desired temperatures.

Product Details

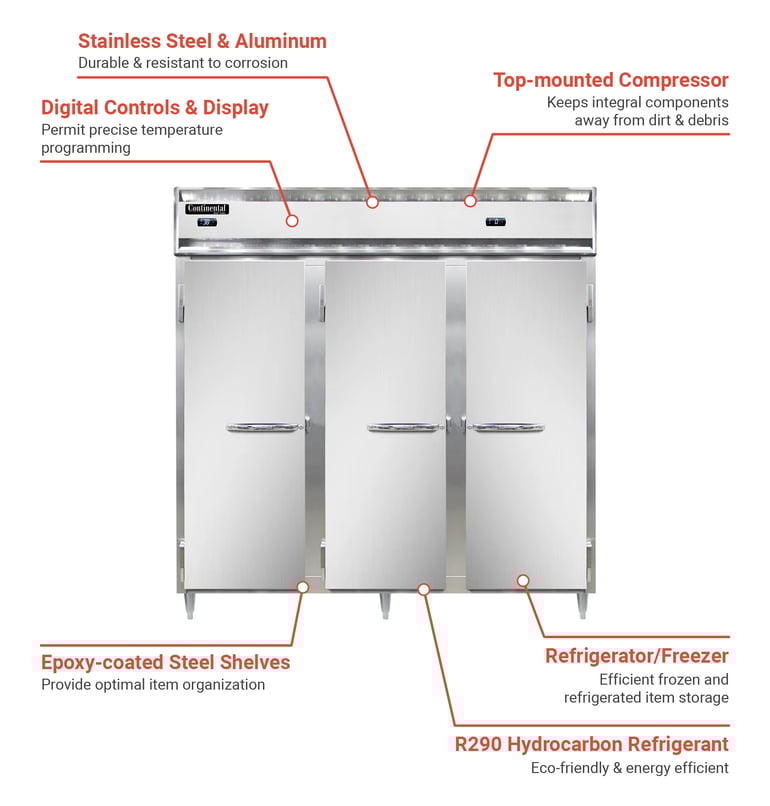

• Item from the Designer Line series
• 3 sections
• Dual-temperature refrigerator/freezer
• 48/20-cu.-ft. (refrigerator/freezer) interior capacity
• Reach-in design
• Stainless steel exterior
• Aluminum interior
• 3 solid steel doors
• Self-closing design
• Cam-action, lift-off hinges
• Santoprene magnetic snap-in door gaskets
• Smooth, polished chrome workflow door handles
• Cylinder locks
• 9 epoxy-coated steel shelves
• Heavy-duty pilaster strips
• LED interior lighting
• 3-in. non-CFC polyurethane insulation
• Top and side air distribution ducts
• Electronic controller and digital temperature display
• High/low temperature alarm
• (6) 6-in. adjustable stainless steel legs

Refrigeration System

• Self-contained and top-mounted
• Eco-friendly R290 hydrocarbon refrigerant
• Temperature holding range (refrigerator section): 38-40 degrees F
• Temperature holding range (freezer section): -4 to 0 degrees F
• Automatic, hot gas condensate evaporator
• Off-cycle defrost (refrigerator section)
• Automatic electric defrost (freezer section)
• Expansion valve system
• 1,940/2,470 BTU capacity

Dimensions & Utilities

• Door opening:19³/₈ in. W x 58⁵/₈ in. H
• Interior: 32 in. D x 56¹/₁₆ in. H
• Overall: 78 in. W x 35³/₈ in. D x 83¹/₄ in. H
• 5.1/8.5 A, ¹/₄/1 HP (refrigerator/freezer)
• 115 V/60 Hz/1ph, (2) 10-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Continental D3RFFNSA within the 48 contiguous states.

From The Manufacturer

Designer Line Refrigerator/Freezer, reach-in, three-section, self-contained refrigeration, stainless steel exterior, aluminum interior, standard depth, (3) full-height solid self-closing doors, cylinder locks, electronic control with digital display, hi-low alarm & hi-low alarm, LED interior light, (9) epoxy-coated steel shelves, R290 Hydrocarbon refrigerant, dual 1/4 & 1 HP, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor Parts
