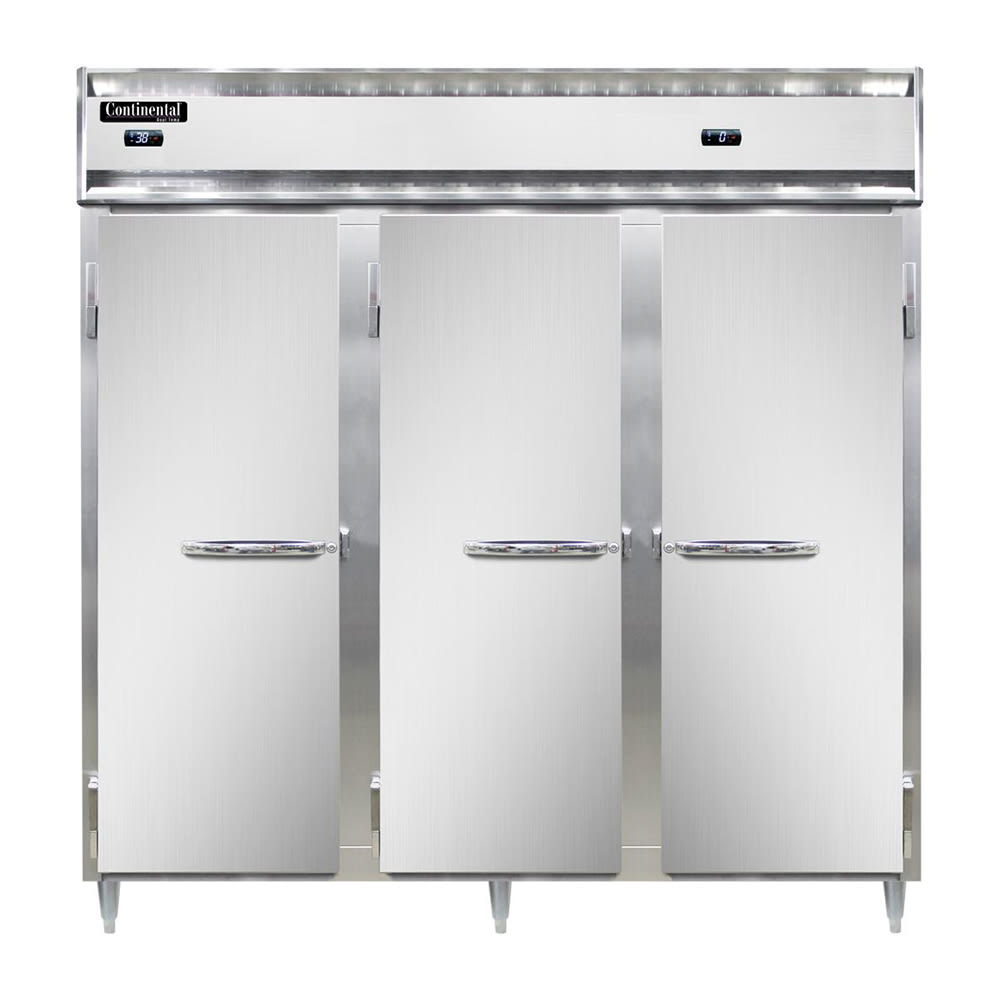

Continental D3RFFN 78" Designer Line Three Section Commercial Combo Refrigerator Freezer - Solid Doors, Dual Temp, 115v

This Continental D3RFFN three-section cabinet is a combination unit featuring a refrigerator on the left and a freezer on the right. Each utilizes the self-contained refrigeration system mounted atop the cabinet to maintain its interior conditions. To set the desired holding temperature, staff must access each side’s electronic controller. The system will then act accordingly, sending forced air through the top and side ducting system. For safe and efficient operation, the system uses R290 hydrocarbon refrigerant.

Each of the Continental D3RFFN dual-temperature cabinet’s sections is fitted with three epoxy-coated steel wire shelves that can be adjusted to accommodate items of various sizes. The refrigerator’s interior spans 48 cubic feet, while the freezer’s measures 20 cubic feet. LED interior lighting illuminates each space to help view ingredients quickly. Overall, this unit is constructed of aluminum with a stainless steel front to withstand heavy use of the solid front doors. These doors can be locked between shifts.

Product Details

• Designer Line series
• 3 sections
• Dual-temperature design
• 48/20-cu.-ft. interiors
• Aluminum construction
• Stainless steel front
• 3-in. polyurethane foam insulation
• 9 epoxy-coated steel wire shelves
• Heavy-duty pilaster strips
• Interior LED lighting
• 6-in. stainless steel legs

3 Solid Doors

• Full height
• Polished chrome door handles
• Self-closing
• Cam-action, lift-off hinges
• Cylinder locks
• Magnetic Santoprene™ gaskets

Self-contained Refrigeration System

• Top mounted
• Top and side ducts
• Expansion valve system
• Electronic controller with digital display
• High/low temperature alarm
• Automatic, hot gas condensate evaporator
• Electric off-cycle defrost (refrigerator)
• Automatic defrost (freezer)
• R290 hydrocarbon refrigerant

Dimensions & Utilities

• 78 in. W x 35³/₈ in. D x 82¹/₄ in. H
• 5.1/8.5 A, ¹/₄/1 HP
• 115 V/60 Hz/1 ph, (2) 10-ft. cords with NEMA 5-15P plugs

Product Features

*Free shipping on Continental D3RFFN within the 48 contiguous states.

From The Manufacturer

Designer Line Refrigerator/Freezer, reach-in, three-section, self-contained refrigeration, stainless steel front, aluminum interior & ends, standard depth, (3) full-height solid self-closing doors, cylinder locks, electronic control with digital display, hi-low alarm & hi-low alarm, LED interior light, (9) epoxy-coated steel shelves, R290 Hydrocarbon refrigerant, dual 1/4 & 1 HP, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor Parts

Continental D3RFFN Specifications

Documents

Spec Sheet

Manual
